3.3 INSTALLATION OF THE OPERATION
UNIT
1) Installation of the operation unit
The operation unit can be installed at any place as far as it is located within 5 meters from the radar
process unit.
2) Connecting the operation unit to the radar process unit
The operation unit is connected to the radar process unit with one cable. The cable is integrated into the
operation unit. Connect the cable extending from the operation unit to the connector for which "KEY
BOARD" is engraved at the rear of the radar process unit cabinet. Turn the plug attached to the connector
until it cannot be turned any further.

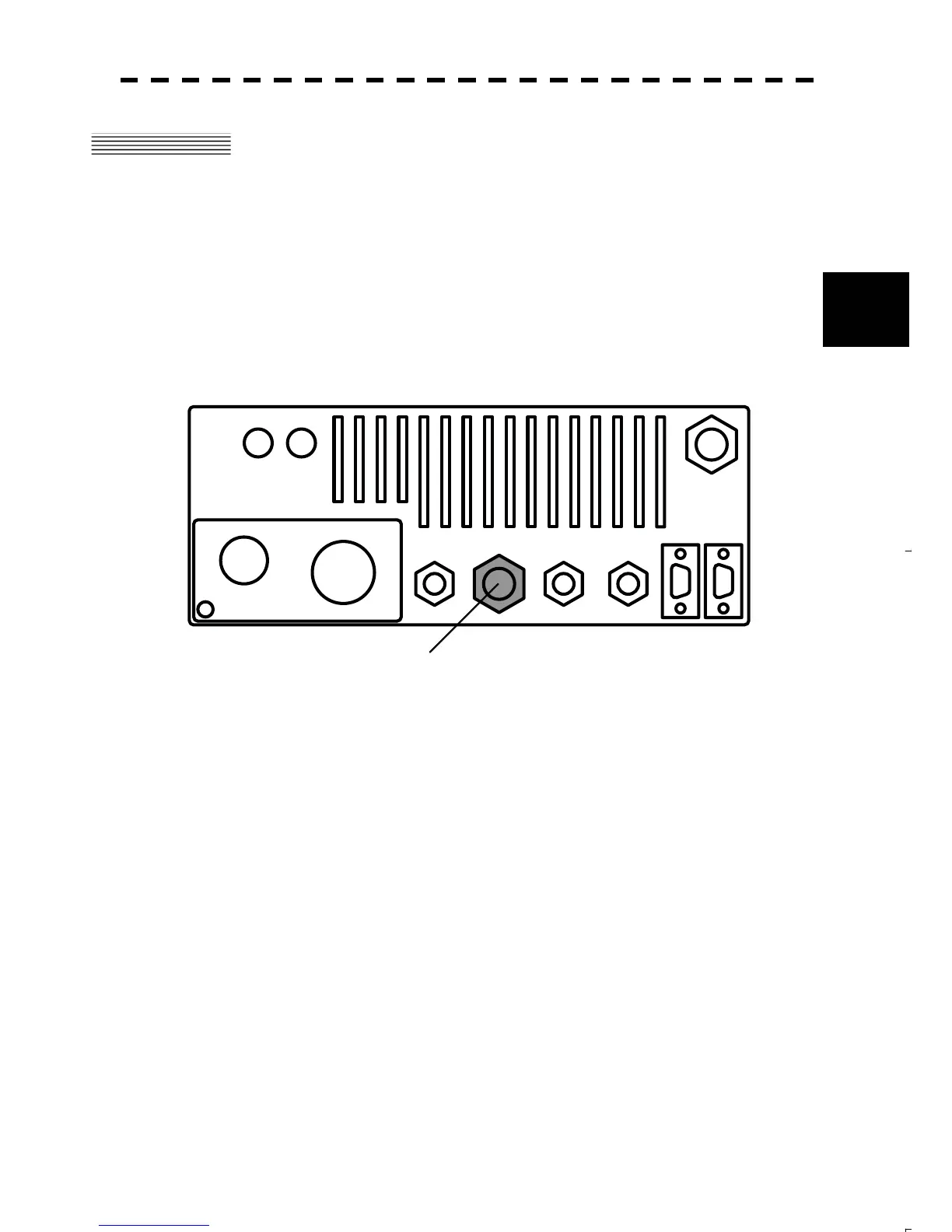

To the keyboard unit
