3.7 CONNECTING TO THE GPS COMPASS
Connect a gyro equipment or equivalent that provide a below turn rate, otherwise the performance of
signal process and target tracking decrease.
Standard craft 12 deg/sec
High speed craft 20 deg/sec
3.7.1 JLR-10
Connection to JRC's GPS compass JLR-10 is possible.
1) Connection
1.1) When using JRC's cable CFQ-6934
Using JRC's dedicated cable CFQ-6934 makes it possible to easily connect to JLR-10. Using the cable
also makes it possible to receive bearing signals from JLR-10 as well as receive latitude and longitude
information as NMEA data.

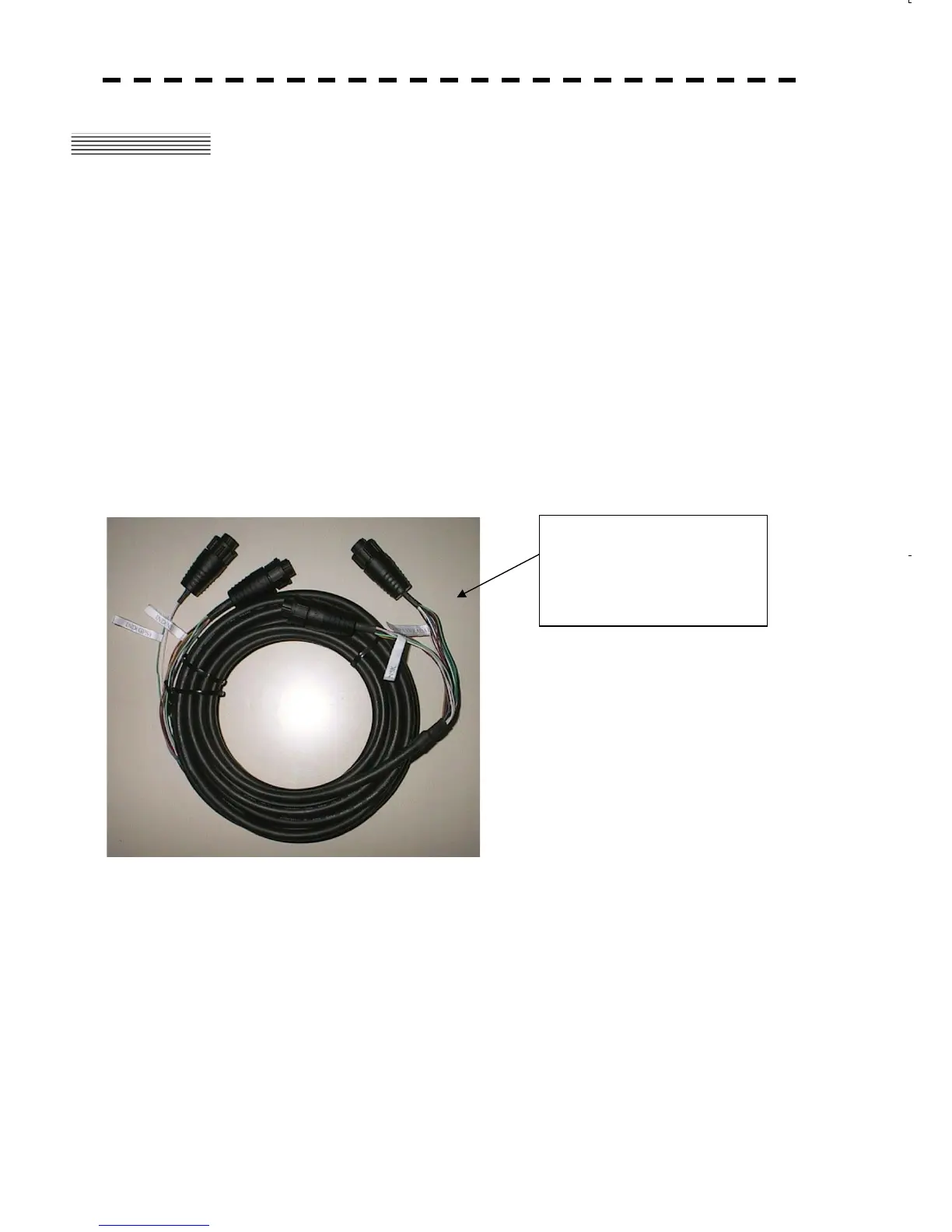

Photograph 1
JLR-10/NSK unit dedicated
connection cable:
CFQ-6934
