3-16
3

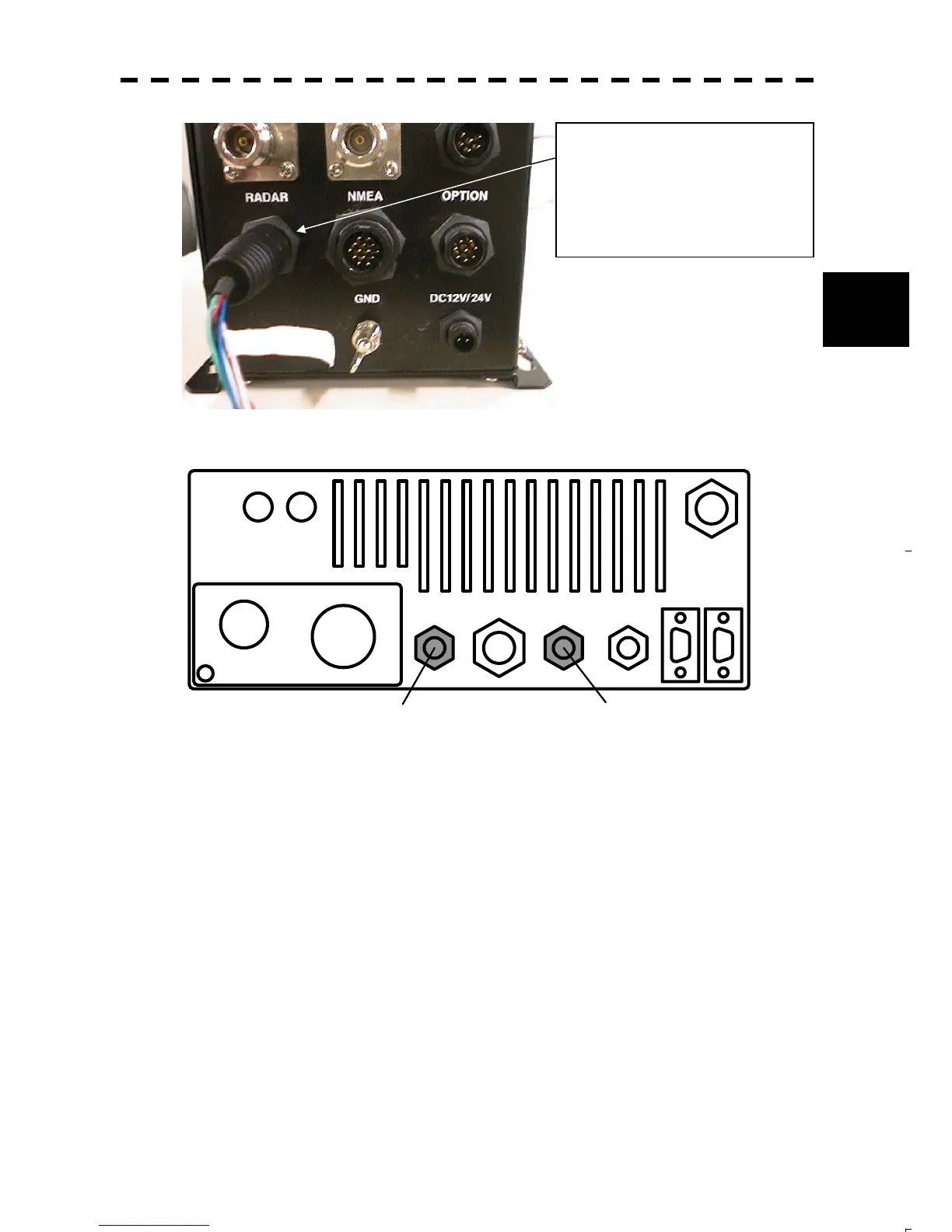

Connecting the JLR-10
Connecting the JMA-5200MK2
Connect the CFQ-6934
5 PIN connector having
the GPS (IND) label.
NMEA
AUX
VIDEO
AIS
NMEA
GYRO
COMPASS
GPS KEY BOARD
E
POWER SCANNER
F3F1 F2
Connect the CFQ-6934
8 PIN connector having
the GYRO I/F (IND) label.
To acquire NMEA data such as position information from the GPS equipment of JRC or other maker's GPS
equipment by acquiring azimuth data only from JLR-10, connect azimuth data only using the dedicated
CFQ-6934 cable that is shown in the above diagram. For the position information, connect the GPS
equipment as described in Section 3.6 without using the cable from JLR-10 labeled with "GPS (IND)".
Photograph 2
Insert the 8-pin connector of
CFQ-6934 with COMPAS (RADAR)
label attached to the "RADAR"
connector of JLR-10.
To Next Page
