2-8
2
d)
Grounding and corr
osion-resistant
measures
x
Ground the antenna chassis and t
h
e installati
on surface (hull) by using an earth line.
Apply sealant to the connectio
n portion of the earth line to prevent corro
sion and
damage by vibration (Fi
g. 10).

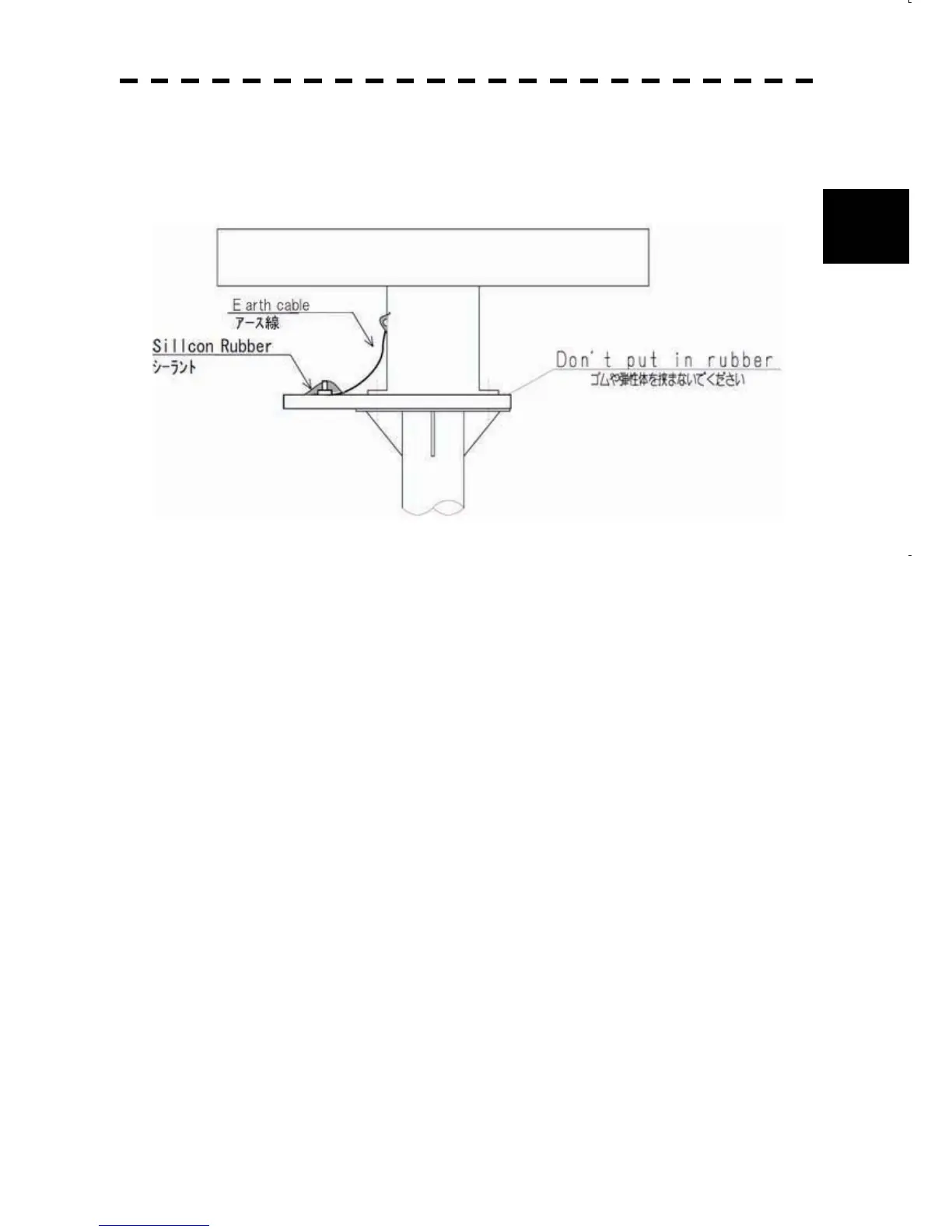

Fig. 10
Grounding and corrosion-re
sistant measures
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
1 Overview
11
2 Installation of the Scanner
11
Selecting the Installation Position
12
Installation Procedure
16
Connecting the Installation Cable (Nke-2103)
20
Connecting the Installation Cable (Nke-2254)
22
3 Installation of the Display Unit
25
Selecting the Installation Position
26
Installation of the Lcd Monitor
27
Installation of the Operation Unit
29
Installation of the Power Cable (Cfq-5436)
30
Installation of the Cable (Cfq-6912) between the Radar Process Unit and the Scanner
33
Connecting to the Gps Receiver
35
Connecting to the Gps Compass
40
Connecting to Nmea Heading Output Device
48
Connecting to the Gyro and Electromagnetic Log (Nsk Unit Setting) (Option)
50
Connecting to the Pc Plotter
56
Connecting to Other Nmea Devices
57
Connection with Other Devices (Sub Indicator Output and Slave Input)
59
Connection with Other Devices
59
Power Supply (Nba-5111) (Option)
63
Target Tracking (Nca-877A) (Option)
64
Plotter Circuit (Ndb-44) (Option)
66
Connecting to Ais (Nqa-2155) (Option)
68
Coastline Rom Card/Memory Card
72
Connect Slave Monitor / Vdr
75
Simplified Inter-Switch Installation
77
Sub Key-Board Installation
79
Connecting to External Buzzers
81
Connecting Contact Signals to External Devices
83
4 Initial Setting
85
How to Open the Equipment Setup Menu
86
Tune Adjustment
87
Bearing Adjustment
90
Range Adjustment
91
Setting of True Bearing Value
92
Antenna Height Setting (Antenna Height)
93
Setting of Ccrp/Antenna/Gps Antenna Position (Ccrp Setting)
94
Communication Port Setting (Com Port Setting)
96
Sector Blank Setting (Sector Blank)
102
Tni Blank Setting (Tni Blank)
104
Setting of Pulse Output Selection (Bearing Pulses from Antenna)
105
Setting of Pulse Output Selection
105
(Bearing Pulses from Antenna)
105
Language Setting (Language)
106
Date Time Setting
107
Main Bang Suppression Adjustment (Mbs)
108
Adjustment of Performance Monitor (Mon)
110
Magnet Compass Setting
112
Gps Receiver Setting
113
Dgps Receiver Setting
122
Sbas Receiver Setting
126
Displaying Gps Reception Status
131
Simplifedinter-Switch Settings
133
5 Measures against Noise Interference in the Radio Equipment
135
Shield of Devices
136
Inter-Unit Cables
136
Installation Location
136
Grounding
136
