3.10 CONNECTING TO THE PC PLOTTER
1) Connection
This radar can output NMEA0183 data to the PC plotter.
Connect one end of the commercially-available 9 PIN RS-232C cross cable to the connector for which
"NMEA" is engraved at the rear of the radar process unit cabinet, and connect the other end to the COM
port of the PC plotter.
NMEA
AUX
VIDEO
AIS
NMEA
GYRO
COMPASS
GPS KEY BOARD
E
POWER SCANNER
F3F1 F2
Connector for connecting
to the PC plotter

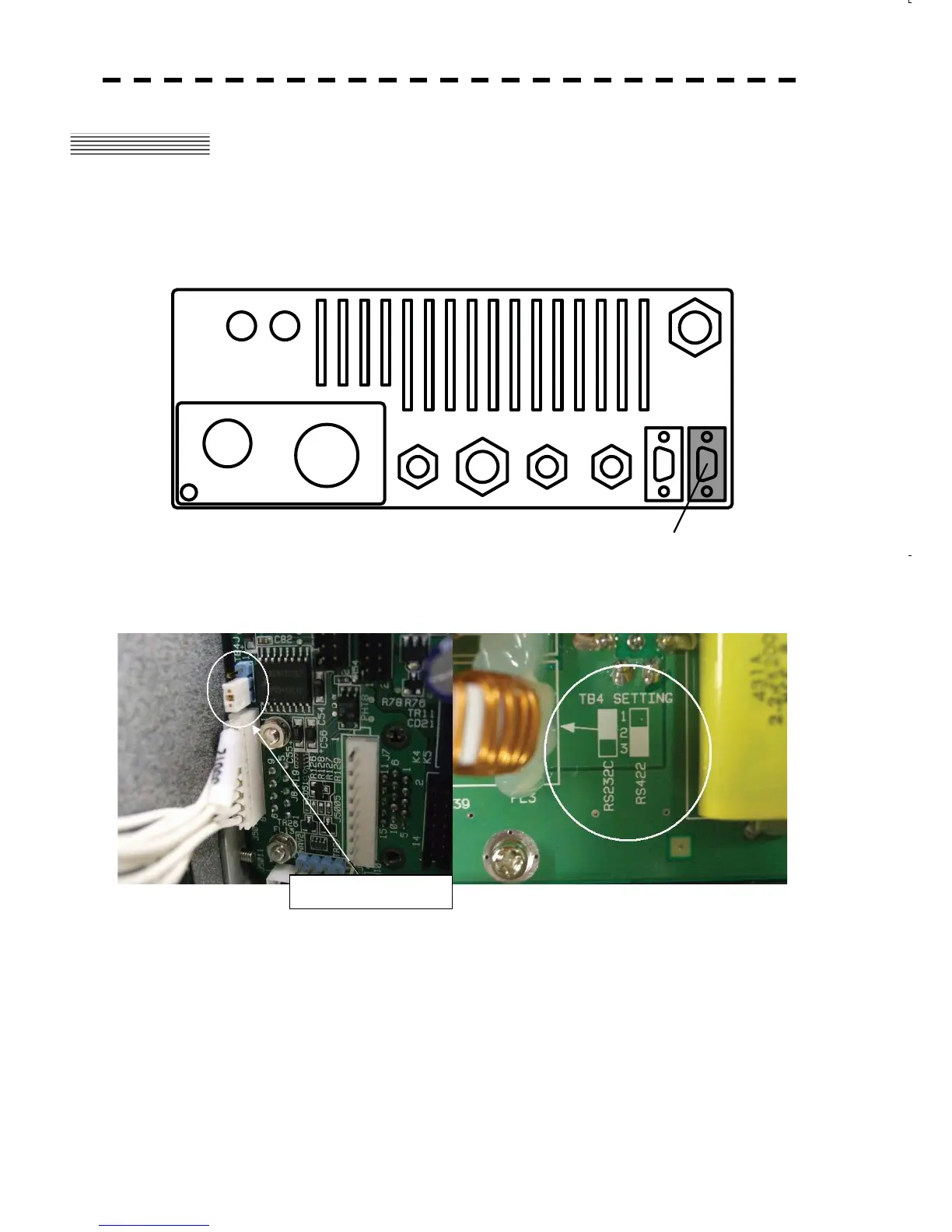

When connecting the PC plotter using RS232C, set jumper TB4 in RS232C as shown below.
2) Setting the PC plotter
Set the PC plotter according to your utilization environment.
Set according to the information that is received from JMA-5200MK2.
3) Setting the JMA-5200MK2
Set the communication port of JMA-5200MK2 according to the data transmitted to the PC plotter to be
connected.
Refer to “4.8 COMMUNICATION PORT SETTING” for the setting of the communication port.
Refer to “2) NMEA0183 standard input/output sentence” in “3.6.2 When using other maker's GPS
receiver or an NMEA data output device” for the data to be transmitted to the PC plotter.
Set TB4J to RS232C.
