3.6 CONNECTING TO THE GPS RECEIVER
3.6.1 When using JRC's GPS receiver
1) Connection
When using JRC's GPS receiver, such as GPS100/DGPS212, directly connect the GPS receiver to the
connector for which "GPS" is engraved at the rear of the radar process unit cabinet. Turn the plug
attached to the connector until it cannot be turned any further.

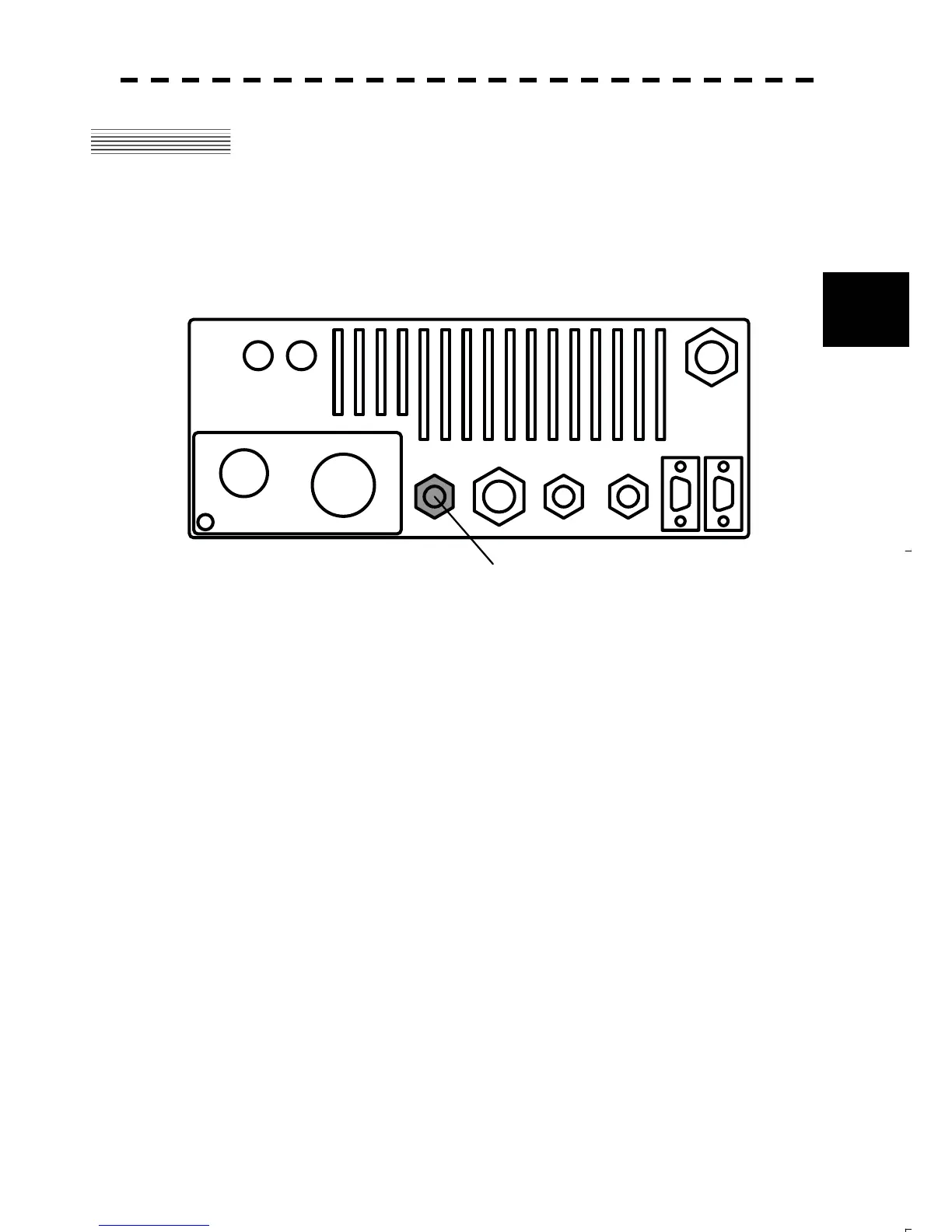

The JRC’s GPS receiver is connected here.
NMEA
AUX
VIDEO
AIS
NMEA
GYRO
COMPASS
GPS KEY BOARD
E
POWER SCANNER
F3F1 F2
2) Setting of the GPS receiver of JRC
No setting is required.
3) Setting the JMA-5200MK2
Basically, no setting is required.
No special setting is required for the use.
However, to change the setting for selecting or restricting the sentences to be received, change the setting
as described in “4.8 COMMUNICATION PORT SETTING (COM PORT SETTING)”.
