3-50
3
3.18

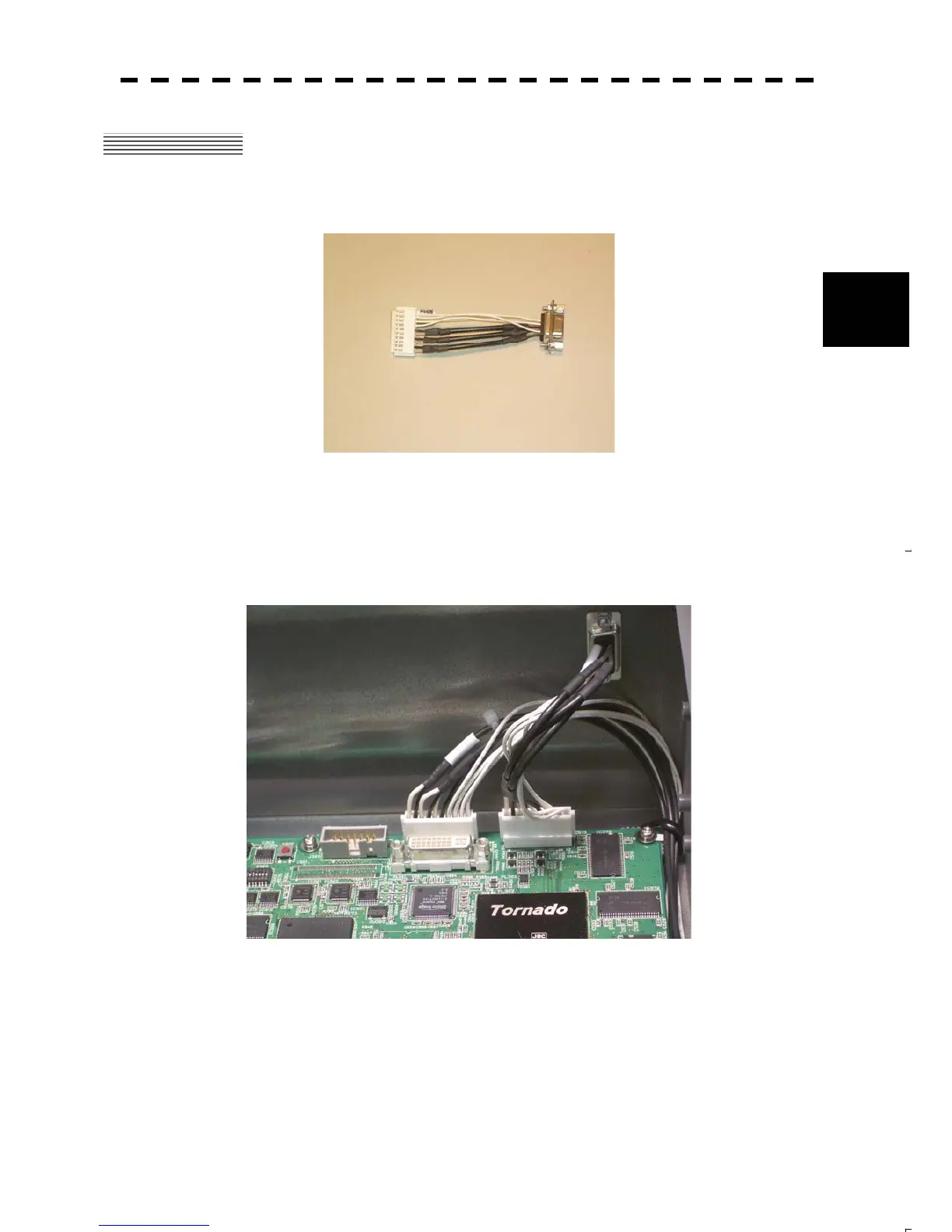

CONNECT SLA
VE MONIT
OR / VDR
T
o connect the slave monito
r/VDR, the following optional
internal cable, CFQ-5350, is necessary
.
Install the optional cable, CFQ-5350, in t
he processing unit according to the
following procedure.
1) Connection
(1)
Remove the processing unit cabin
et cover form
the unit cabinet.
(2)
Connect CFQ-5350 to J4406 on CDC-1350 and attach the cable on
unit cabinet.
(3)
Fix D-sub connector of the CFQ-5350 to the chassis.
