3.19 SIMPLIFIED INTER-SWITCH
INSTALLATION

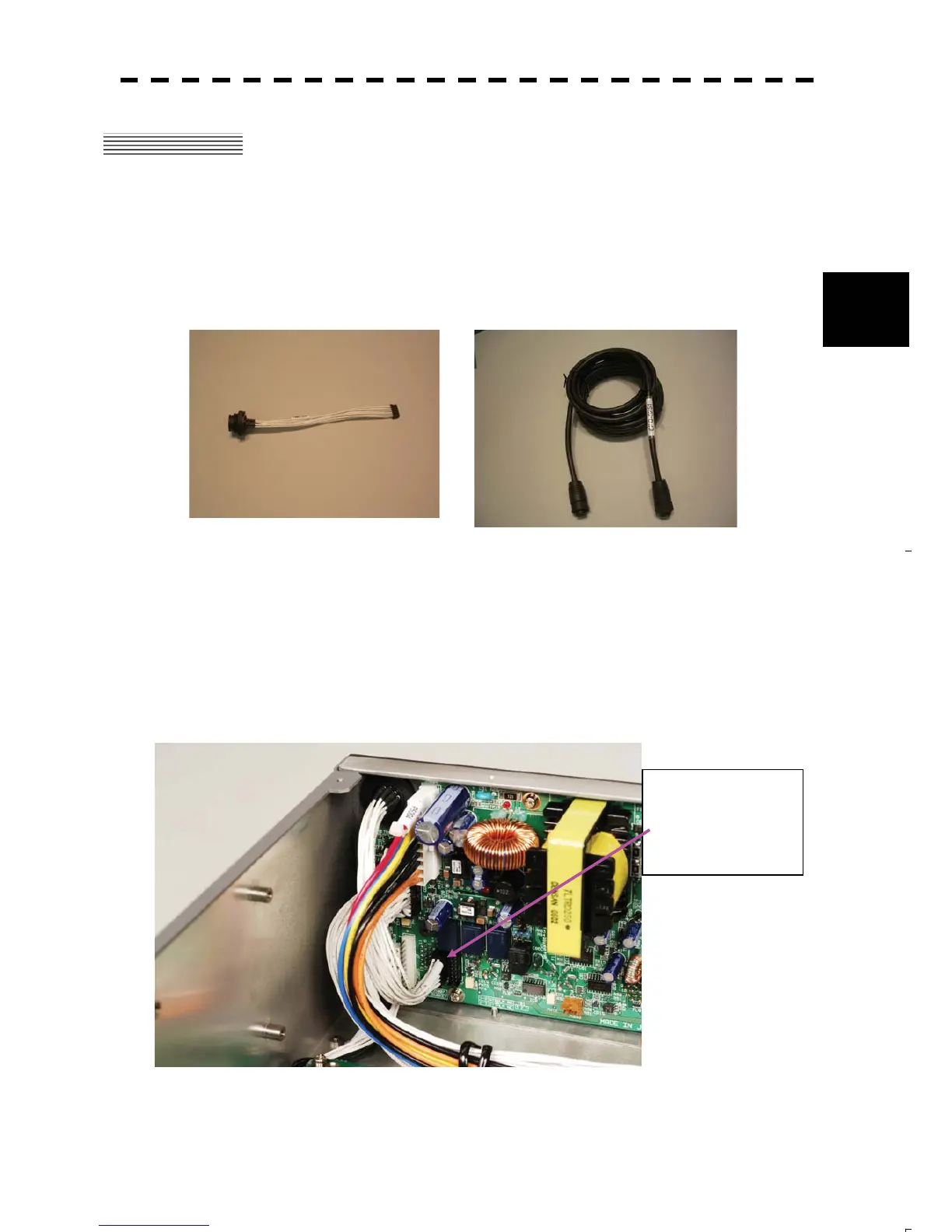

The Simplified inter-switch option enables inter-switching between two scanners.
By this option, inter-switching between JMA-5200 and JMA-5300 is also enabled.
The option requires inter-connection cable CFQ5351 and inter-unit cable CFQ-5251.
CFQ-5351 CFQ-5251
1) Connection
Simplified inter-switch installation procedures.
(1) Remove the processing unit cabinet cover form the unit cabinet.
(2) Connect CFQ-5351 to the J5008 on the CBD-1702A.
(3) Attach 14 pin circular connector of the CFQ-5351 to the cabinet as shown above.
Two identical 14 pin
connectors are on
CBD-1702A side by
side and the J5008 is
one on the left.
