4.10 TNI BLANK SETTING (TNI BLANK)
Set a sector and stop tuning operation in the bearing.
If a structure such as the mast is close to the radar antenna, automatic tuning operation may become unstable. In this
case, set a TNI blank in the direction of the structure in order to stabilize the tuning operation.
Only one TNI blank sector can be created. The TNI blank function operates in the relative bearing with the bow as the
benchmark.
[I] TNI Blank Function On/Off (Sector)

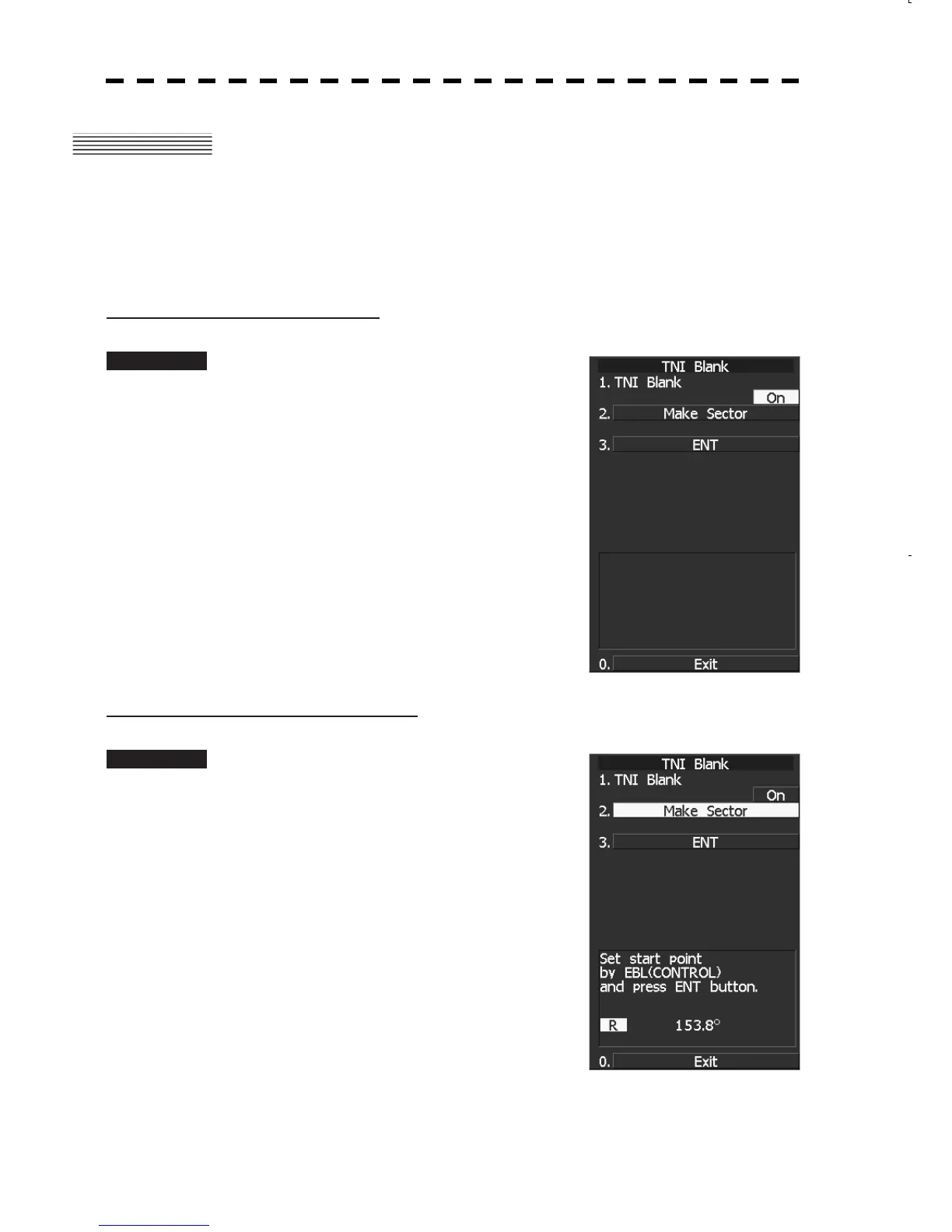

Procedures 1. Open Adjust Menu.
2. Press the following keys.
4. TXRX Setting
9. TNI Blank
1. TNI Blank
On: The TNI blank function is operated.
Off: The TNI blank function is stopped.
[II] TNI Blank Area Creation (Make Sector)
Procedures 1. Transmit the radar.
2. Open Adjust Menu.
3. Press the following keys.
4. TXRX Setting
9. TNI Blank
2. Make Sector
4. Set the starting bearing of the TNI blank
by operating the [EBL] dial, and press the
[ENT] key.
5. Set the ending bearing of the TNI blank by
operating the [EBL] dial, and press the
[ENT] key.
The TNI blank area is set.
