(4) Connect inter-unit cable CFQ-5251 to the circular connector of CFQ-5351 attached on the cabinet.
Pay attention to the wiring. CFQ-5251 is a cross cable.
Therefore the input wires and output wires are inter-changed between the connectors.
Connector for AUX (J9 Option)
Simplified inter-switch output or radar signal output.
ԘEVDO ; Radar video output
ԙEVDOE ; Return
ԚFG ; Frame GND
ԛETRGO ; Trigger
ԜEBPO ; Azimuth pulse output
ԝEBZO ; Azimuth reference pulse output
ԞETRGOE ; GND
ԟEVDI ; Radar video input
ԠEVDIE ; Return
ԡETRGI ; Trigger input
Ԣ+12V ; +12V
ԣEBPI ; Azimuth pulse input
ԤEBZI ; Azimuth reference pulse input
ԥETRGIE ; GND
Optional inter-connection cable CFQ-5351 required.
Inter-unit cable CFQ-5251 (5m) is available. It includes connector P9.

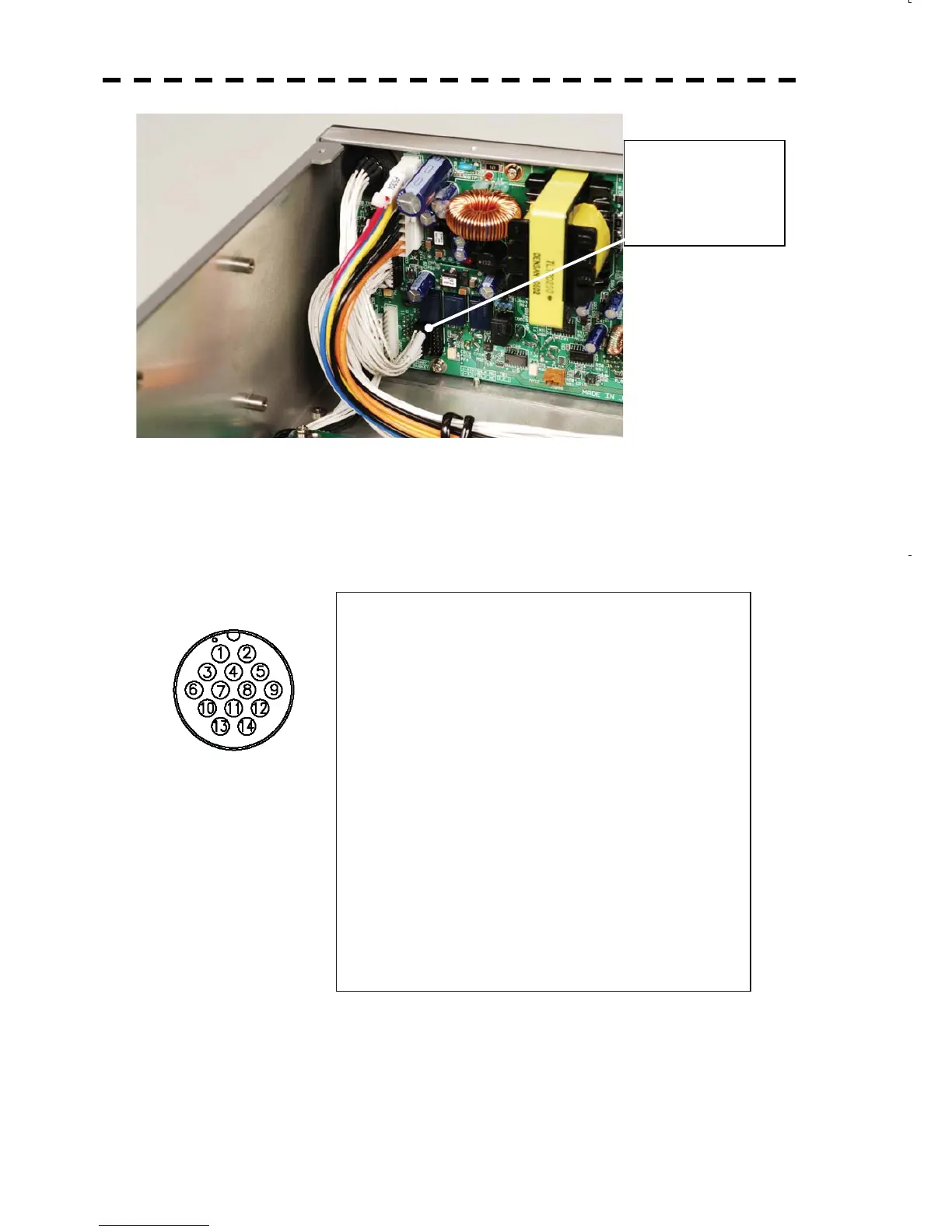

Two identical 14 pin
connectors are on
CBD-1702A side by
side and the J5008 is
one on the left.
