3-59
2) Jumper setting
Using jumper TB1J, set whether the buzzer contact is opened or closed at the normal condition according
to the utilization condition.
The setting Link for contact output is TB1J on CBD-1702A, terminal board.
TB1J Link setting.
Contact output Link position
Normal open 1-2 ( Factory setting )
Normal close 2-3
3) Alarm Outputs Setting
Set the operation of the external contact terminal at the occurrence of an alarm.
Two methods are available; one method is to use the alarm status as the contact output by connecting
with an external device and the other method is to notify an alarm status by emitting a buzzer by
connecting an external buzzer. This section describes the setting when notifying an alarm status as
contact output.
1) Press and hold [RADAR MENU] key.
The CODE INPUT Menu will appear.
2) Enter [0] and press the [ENT] key.
The Adjust Menu will appear.
3) Press [9] key.
Press [1] key.
The Alarm Outputs Setting Menu will appear.
4) 3. Set Relay Contact Mode to Alarm Condition.
When an alarm occurs, the status of the external contact changes.
If the external contact is set to OPEN in the normal state, it is set to CLOSE at the occurrence of
an alarm and if it is set to CLOSE in the normal state, the contact is set to OPEN at the
occurrence of an alarm.
Set the contact in the normal state in 2) Jumper setting.

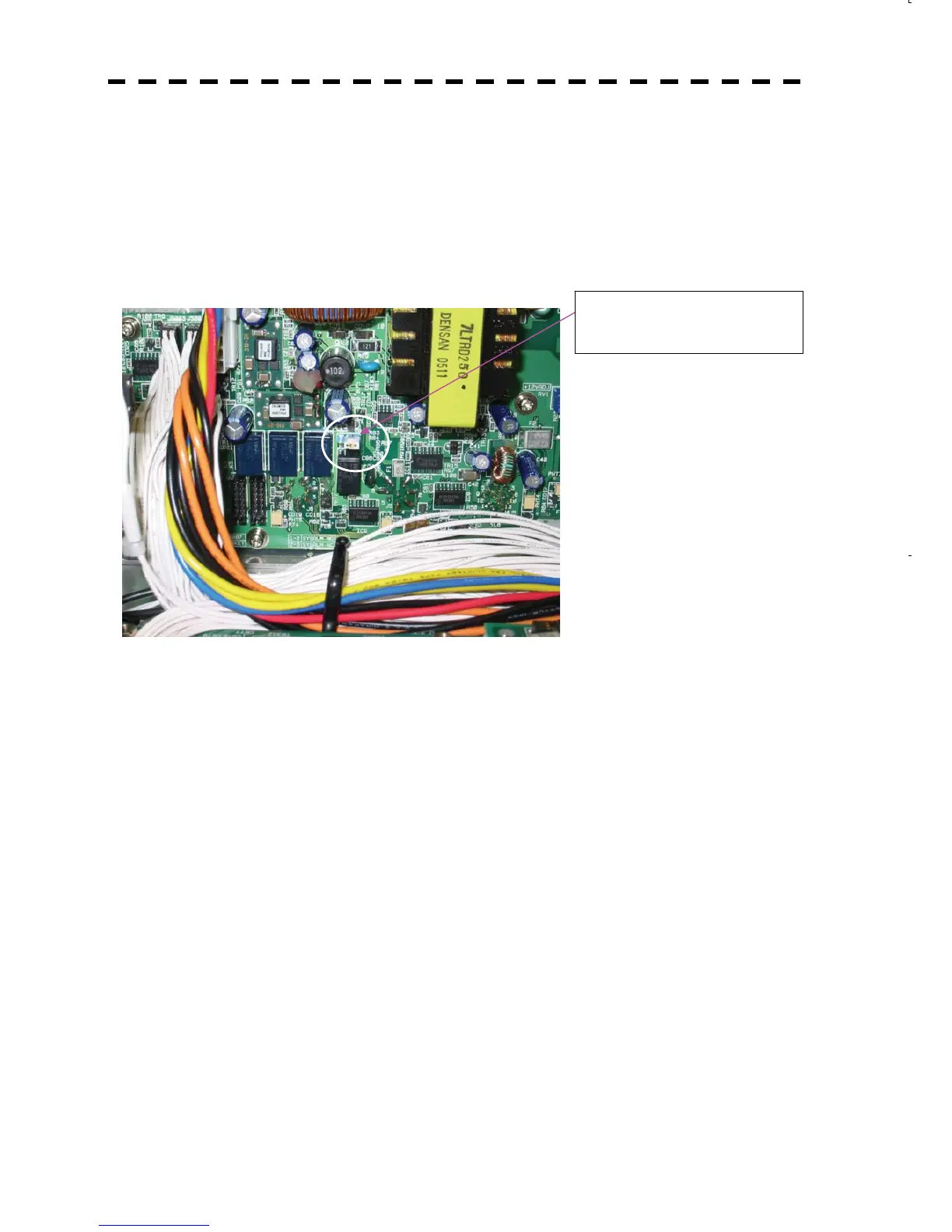

CBD-1702A TB1J
Pins,1 and 2 are linked for normal
close output.
To Next Page
