ġ
4-
10
4

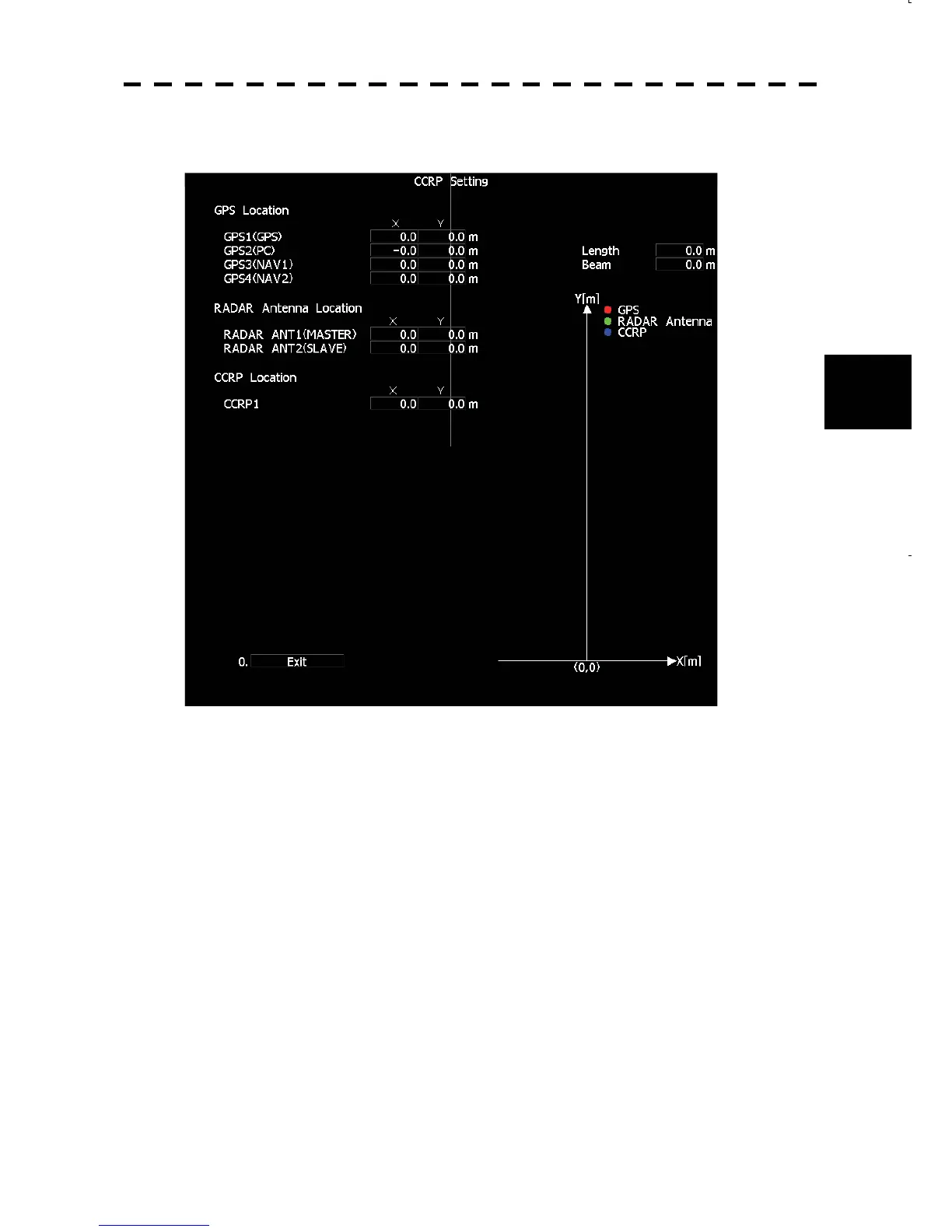

CCRP
position:
Only one position can be set.
If CCRP1 is outside the display area, CCRP2 (an
tenna position) becom
es the
CCRP
.
CCRP
is changed on the condition as following.
The scanner position is outsid
e of the of
f center limit.
The
CCRP
position is ou
tside of PPI.
This condition occurs with
for example off center
, tru
e motion, turn of own ship, etc.
94
96
