JRC JMA-933B-SA - Page 194

To Next Page

To Previous Page

3-87

・Selected Message … Deleting selected message

・Before … Deleting the messages before the

input date

（Date input is needed）

・All Message … Deleting all messages

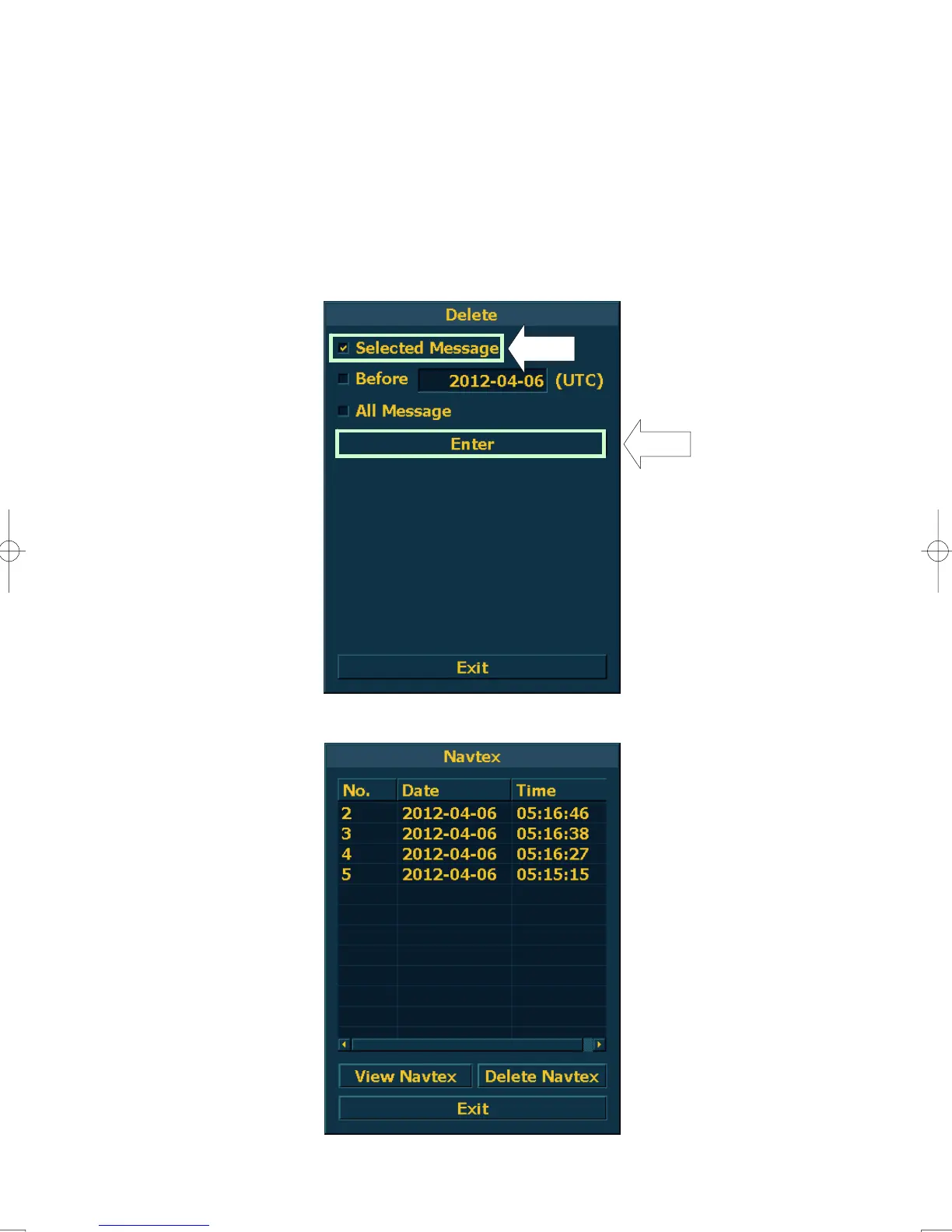

(1) In case of deleting selected message

Check “Selected Message”, and left-click Enter button.

Selected message will be deleted.
