A-2
A
.1 Overview
APPENDIX

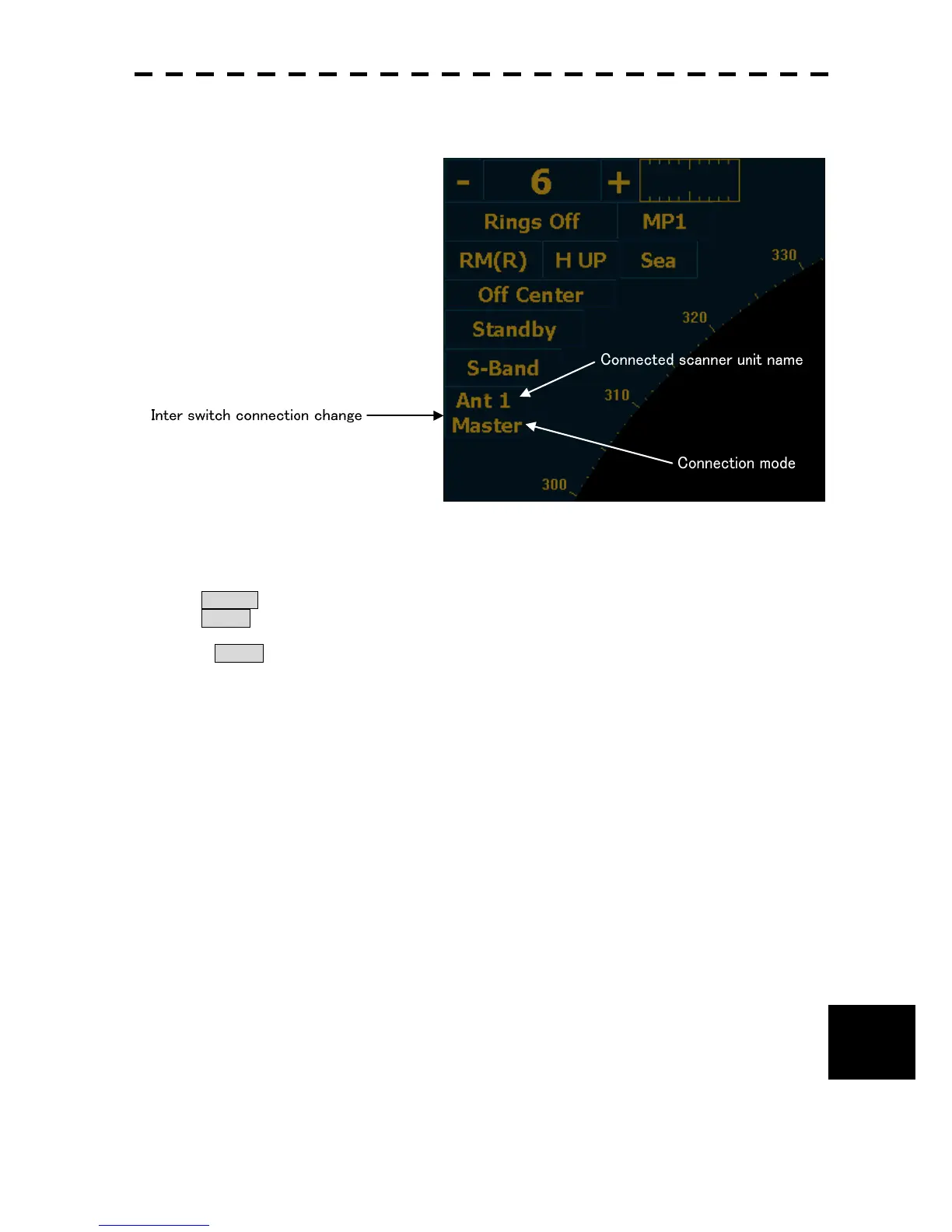

Upper lef
t of the display
The upper sta
nd indicates t
he name
of connected sca
nner uni
t.
The lower stand indicates the
connection mode.
Master
: Mode in which the scan
ner unit can be controlled by the display unit
Slave
: Mode in which the
scanner
unit cannot
be controll
ed
When
Slave
is selected, transmission / standby and pulse length cannot be ch
anged. The available range is
also limited.
