17

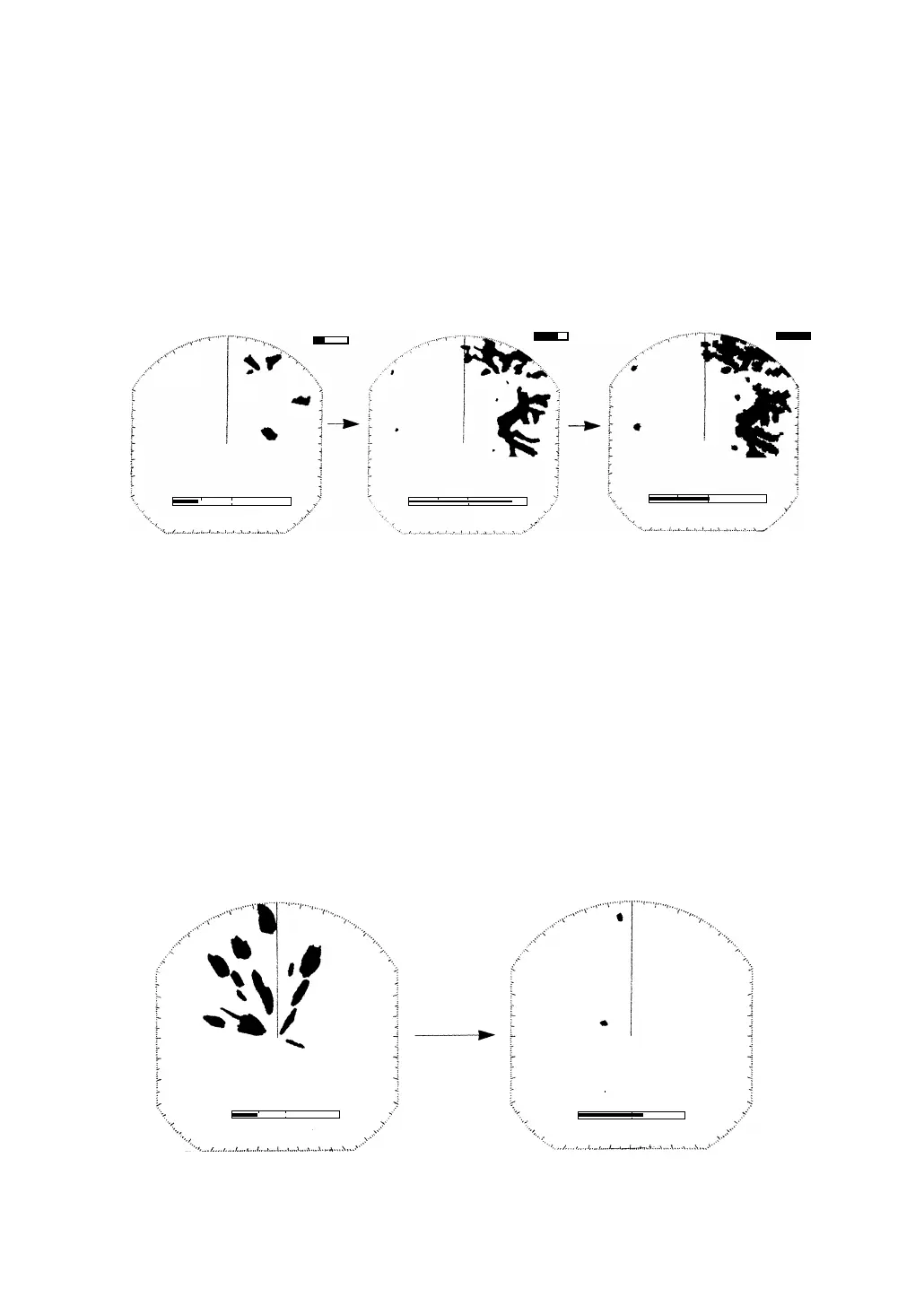

① Set the range scale to 3 NM.
② Set the gain control to desired level.
③ Set the SEA, RAIN and IR to Off.
④ Press and hold the JOYSTICK for the initial setting menu.
⑤ Select TUNE PRESET by using the JOYSTICK, and press the JOYSTICK.
⑥ Adjust using the J-DIAL to maximum targets on the screen.
⑦ Press the JOYSTICK when maximum targets are set.
3.7.6 STC PRESET
The STC preset is adjusted at the factory for proper operation. Normally fur-
ther adjustment is not required.
① Set Range to 6 NM.
② Set the Gain to maximum (Refer to Section 4.4).
③ Press and hold the JOYSTICK for the initial setting menu.
④ Select STC PRESET by using the JOYSTICK, and press the JOYSTICK.
⑤ Adjust distance so that no background noise appears in range of 0 to 2 NM
by using the J-DIAL.
⑥ Press the JOYSTICK to end the STC PRESET mode.
INSTALLATION
ADJUST WITH J-DIAL
PRESS J-STICK TO END
STC PRESET
ADJUST MODE
MIN MAX MIN MAX
STC PRESET
ADJUST MODE
ADJUST WITH J-DIAL
PRESS J-STICK TO END
ADJUST WITH J-DIAL
PRESS J-STICK TO END
TUNE PRESET
ADJUST MODE
ADJUST WITH J-DIAL
PRESS J-STICK TO END
T
T
T
TUNE PRESET
ADJUST MODE
MIN MAX MIN MAX
MIN MAX
TUNE PRESET
ADJUST MODE
ADJUST WITH J-DIAL
PRESS J-STICK TO END
17
① Set the range scale to 3 NM.
② Set the gain control to desired level.
③ Set the SEA, RAIN and IR to Off.
④ Press and hold the JOYSTICK for the initial setting menu.
⑤ Select TUNE PRESET by using the JOYSTICK, and press the JOYSTICK.
⑥ Adjust using the J-DIAL to maximum targets on the screen.
⑦ Press the JOYSTICK when maximum targets are set.
3.7.6 STC PRESET
The STC preset is adjusted at the factory for proper operation. Normally fur-
ther adjustment is not required.
① Set Range to 6 NM.
② Set the Gain to maximum (Refer to Section 4.4).
③ Press and hold the JOYSTICK for the initial setting menu.
④ Select STC PRESET by using the JOYSTICK, and press the JOYSTICK.
⑤ Adjust distance so that no background noise appears in range of 0 to 2 NM
by using the J-DIAL.
⑥ Press the JOYSTICK to end the STC PRESET mode.
INSTALLATION
ADJUST WITH J-DIAL
PRESS J-STICK TO END
STC PRESET
ADJUST MODE
MIN MAX MIN MAX
STC PRESET
ADJUST MODE
ADJUST WITH J-DIAL
PRESS J-STICK TO END
ADJUST WITH J-DIAL
PRESS J-STICK TO END
TUNE PRESET
ADJUST MODE
ADJUST WITH J-DIAL
PRESS J-STICK TO END
T
T
T
TUNE PRESET
ADJUST MODE
MIN MAX MIN MAX
MIN MAX
TUNE PRESET
ADJUST MODE
ADJUST WITH J-DIAL
PRESS J-STICK TO END
