JRC Radar 3000 User Manual

19
SECTION 4
Generally the operation of the RADAR 3000 is easy straight forward. However
the navigator who knows the layout and understands the functions of various
controls will obtain the best performance from his equipment.
4.1 LAYOUT OF CONTROLS
Layout of the control are shown in FIG 4-1.
OPERATION

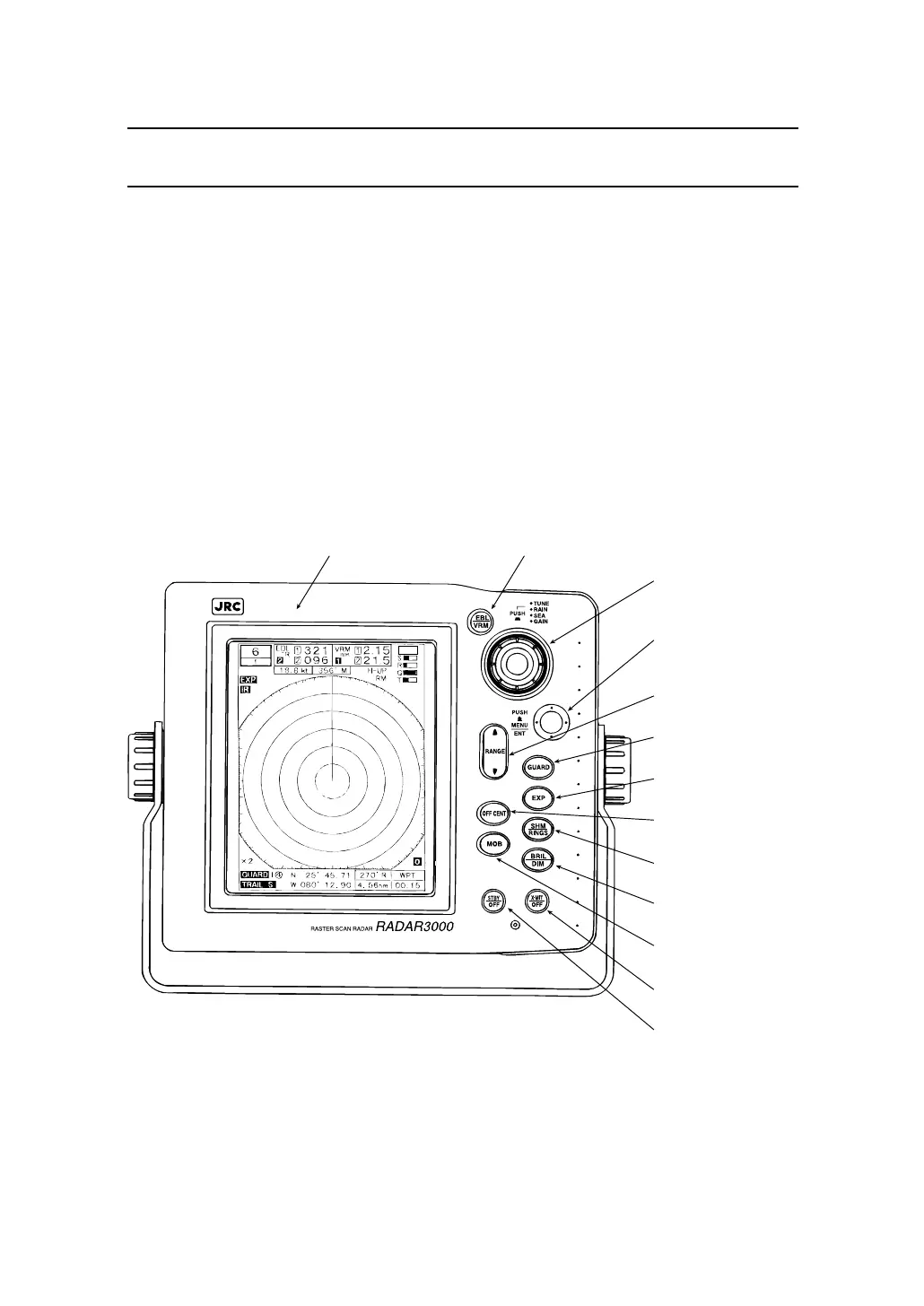

FIG. 4-1 OPERATING CONTROLS
OPERATION
SEA
J-DIAL
VRM/EBL Key
JOYSTICK
Range Up/Down Key
GUARD Key
EXP Key
OFFCENT Key
SHM/RINGS Key
Brilliance/Dimmer Key
MOB Key
Transmit/off Key
Stand-by/off Key
DISPLAY UNIT
19
SECTION 4
Generally the operation of the RADAR 3000 is easy straight forward. However
the navigator who knows the layout and understands the functions of various
controls will obtain the best performance from his equipment.
4.1 LAYOUT OF CONTROLS
Layout of the control are shown in FIG 4-1.
OPERATION
FIG. 4-1 OPERATING CONTROLS
OPERATION
SEA
J-DIAL
VRM/EBL Key
JOYSTICK
Range Up/Down Key
GUARD Key
EXP Key
OFFCENT Key
SHM/RINGS Key
Brilliance/Dimmer Key
MOB Key
Transmit/off Key
Stand-by/off Key
DISPLAY UNIT
