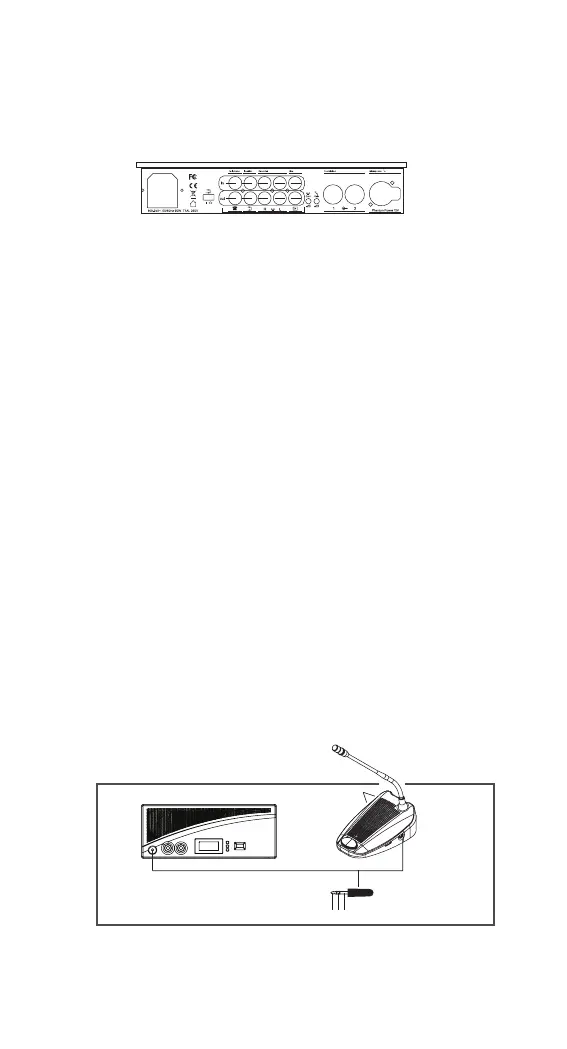

6.4 Pin configuration

Trunk Connections

1) Audio contribution line

2) GND

3) Audio distribution line

4) Control line 1

5) Control line 2

6) V+ supply

7) V- supply

External Microphone (XLR)

1) GND (0V, phantom supply)

2) Signal + (+12V, Phantom supply)

3) Signal – (+12V, Phantom supply)

CINCH Connector

1) Signal +

2) Signal -

Power Connector

1) Mains

2) Earth

3) Mains

Headphone Jack-Plug (3.5mm)

1) Tip (Signal +)

2) Ring (Signal -)

3) Sleeve (Electrical earth/screen)

Headphone Jack-Plug (3.5mm)

*CS-1CU
