JUKI DDL-9000B User Manual

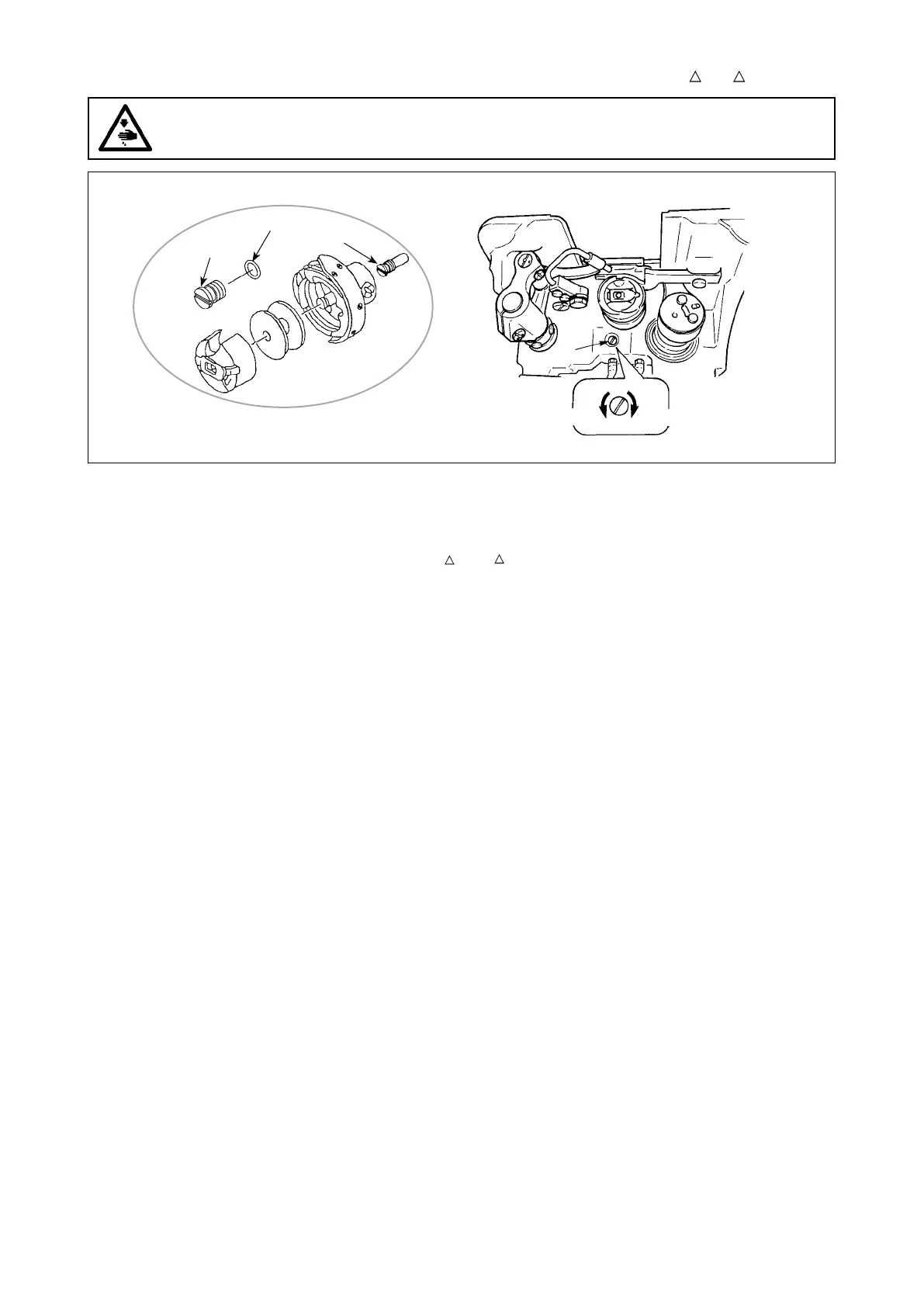

8. ADJUSTING THE AMOUNT OF OIL IN THE HOOK (DDL-9000B-S , -M )
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of
the sewing machine.
1
2
4
3
Decrease
Increase
Tighten (turn clockwise) oil amount adjustment screw
1
to increase the amount of oil in the hook, or loosen
(turn counterclockwise) to decrease it.
(Caution)
[When using RP hook (hook for dry head) for S or -M type]
1. Remove hook driving shaft oil wick setscrew
2
and attach hook driving shaft stopper screw
3
(Part
No. : 11079506) and rubber ring
4
(Part No. : R0036080200).
2. Loosen oil amount adjustment screw
1
up to the minimum so as to reduce the oil amount in the
hook. However, do not completely stop the oil and be careful not to allow oil adjustment screw
1
to
come off.
3. Never drain the oil in the oil tank even when RP hook (hook for dry head) is used.
– 8 –

JUKI DDL-9000B Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	5mm
Needle Bar Stroke	30.7mm
Lubrication	Automatic
Automatic Thread Trimmer	Yes
Max Sewing Speed	5, 000 stitches per minute
Needle	DB×1
Lubricating Oil	JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Type	Direct-drive, high-speed, 1-needle, lockstitch machine
Maximum Sewing Speed	5, 000 stitches per minute
Bobbin	Standard
