7. ADJUSTING THE AMOUNT OF OIL (OIL SPLASHES) IN THE HOOK
(DDL-9000B-S
, -M )
WARNING :
Be extremely careful about the operation of the machine since the amount of oil has to be checked
by turning the hook at a high speed.

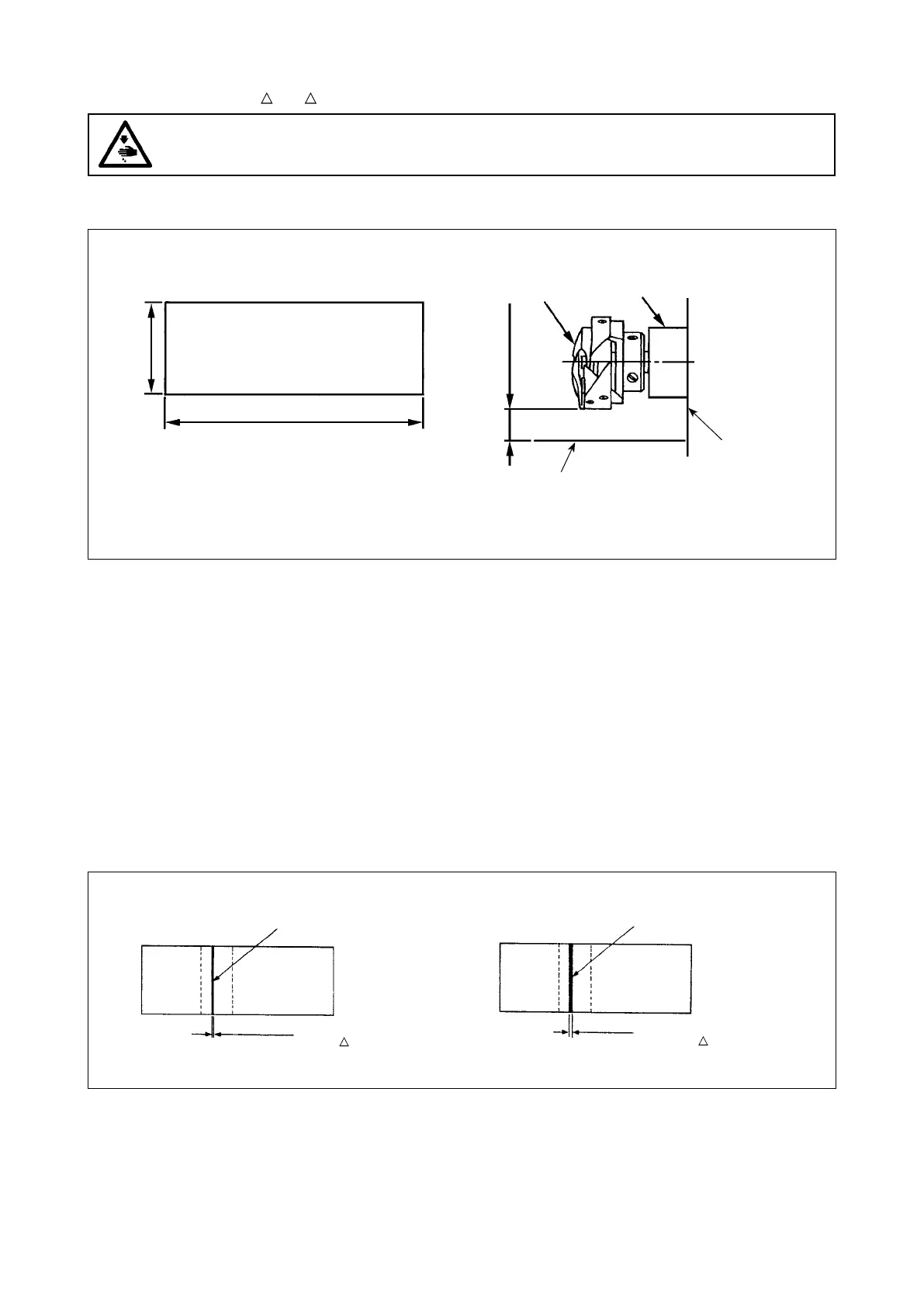

(1) How to conrm the amount of oil (oil splashes)
1
Amount of oil (oil splashes) conrmation paper
2
Position to conrm the amount of oil (oil splashes)
Oil splashes conrmation paper
* Place the amount of oil (oil splashes) confirmation paper
under the hook and keep it from the hook by 3 to 10 mm to
conrm the amount.
* When carrying out the procedure described below in 2), conrm the state that the needle thread
from the thread take-up lever to the needle and the bobbin thread are removed, the presser foot
is lifted and the slide plate is removed. At this time, take extreme caution not to allow your n-
gers to come in contact with the hook.
1) If the machine has not been sufciently warmed up for operation, make the machine run idle for approxi-
mately three minutes. (Moderate intermittent operation)
2) Place the amount of oil (oil splashes) conrmation paper under the hook while the sewing machine is in
operation.
3) Conrm that oil exists in the oil tank.
4) Conrmation of the amount of oil should be completed in ve seconds. (Check the period of time with a
watch.)
(2) Sample showing the appropriate amount of oil
C l os e l y fi t t h e
paper against the
wall surface of
the bed.
Hook
Hook driving shaft front bushing
Bed
* Use any paper available regardless of the material.
Approx. 70 mm
Approx. 25 mm
Appropriate amount of oil (small)
Appropriate amount of oil (large)
Splashes of oil from the hook
• DDL-9000B-SS, -M
Splashes of oil from the hook
: 1 to 1.5 mm
• DDL-9000B-SS, -M
: 0.5 to 1 mm
• DDL-9000B-SH : 1 to 3 mm
• DDL-9000B-SH : 2 to 4 mm
1)
2)
The state given in the gure above shows the appropriate amount of oil (oil splashes). It is necessary to nely ad-
just the amount of oil in accordance with the sewing processes. However, do not excessively increase/decrease
the amount of oil in the hook. (If the amount of oil is too small, the hook will be seized (the hook will be hot). If the
amount of oil is too much, the sewing product may be stained with oil.)
Check the oil amount (oil splashes) three times (on the three sheets of paper), and adjust so that it
should not change.
– 7 –
