– 5 –

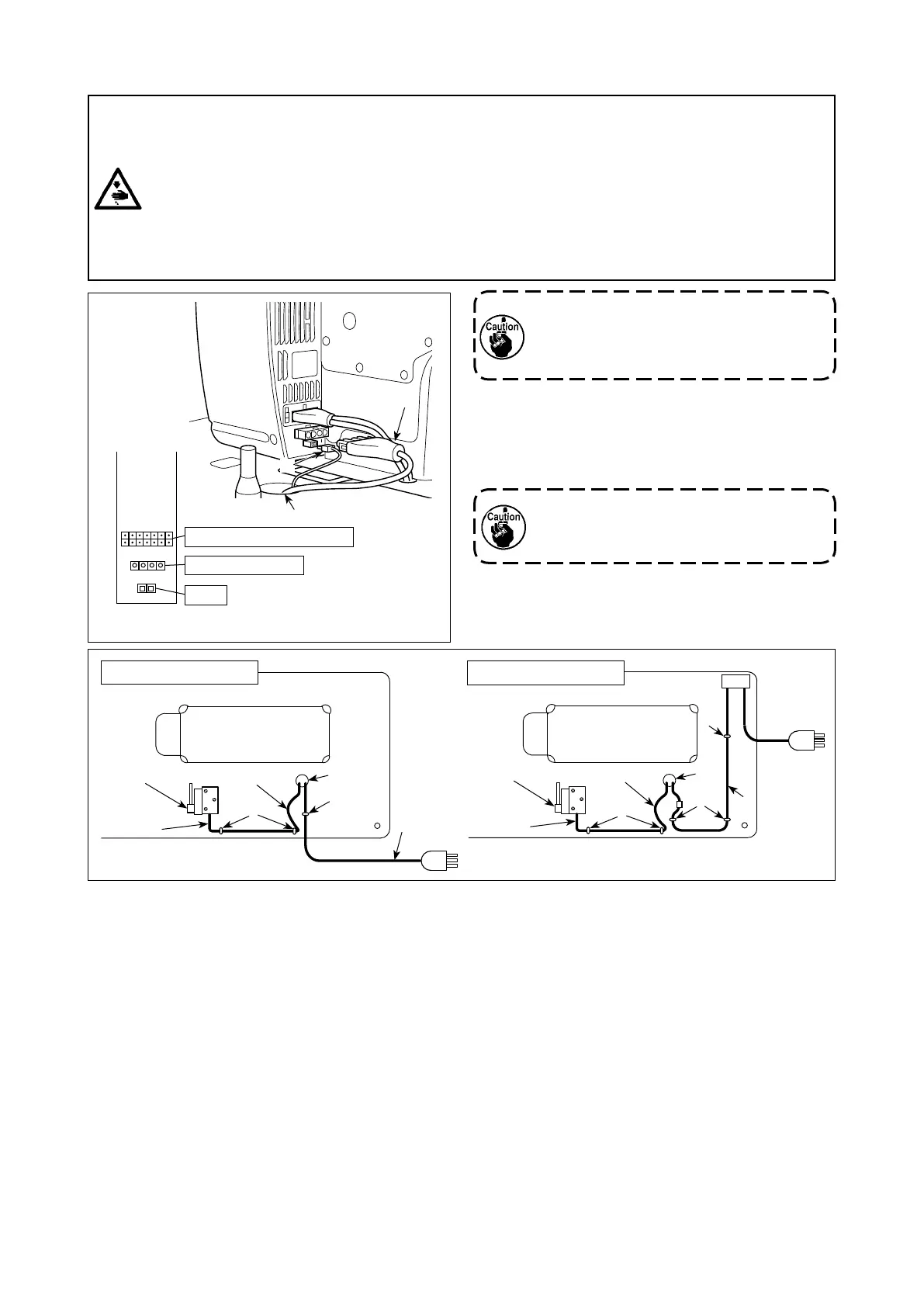

4. Connecting the connector
WARNING :
• To protect against personal injury resulting from abrupt start of the sewing machine, be sure to turn
the power OFF, unplug the machine and wait for ve minutes or more before installing the pedal
sensor.
• To prevent damage of device caused by maloperation and wrong specications, be sure to connect
all the corresponding connectors to the specied places. (If any of the connectors is inserted into a
wrong connector, not only the device corresponding to the connector can break but also it can start
abruptly, inviting the risk of personal injury.)
• To prevent personal injury caused by maloperation, be sure to lock the connector with lock.
• As for the details of handling respective devices, read carefully the Instruction Manuals supplied
with the devices before handling the devices.
Do not insert the power plug into the wall
outlet.
Check to be sure that the power switch is
turned OFF.
1) Connect pedal sensor cable ❶ and AC input
cable ❷ supplied with the machine to the control
box. For the connection ports of the cables, refer
to the connector layout drawing.
Be sure to fully insert the connectors into
the corresponding ports until they are
locked.
2) Draw out cable of the control box through cable
draw-out hole ❸ to route it to the underside of
the sewing machine table.
3) Fix pedal sensor cable ❶ and AC input cable ❷ with a staple ❹.
Pedal sensor
❶
Slack
Underside of the table
❹
❹
❹
❸
❷
Pedal sensor
❶
Slack
Underside of the table
❹
❹
❸
❷
(For CE)
Connector connection diagram
❶
❸
❷
Pedal
AC power supply
Machine head connector
To Next Page
