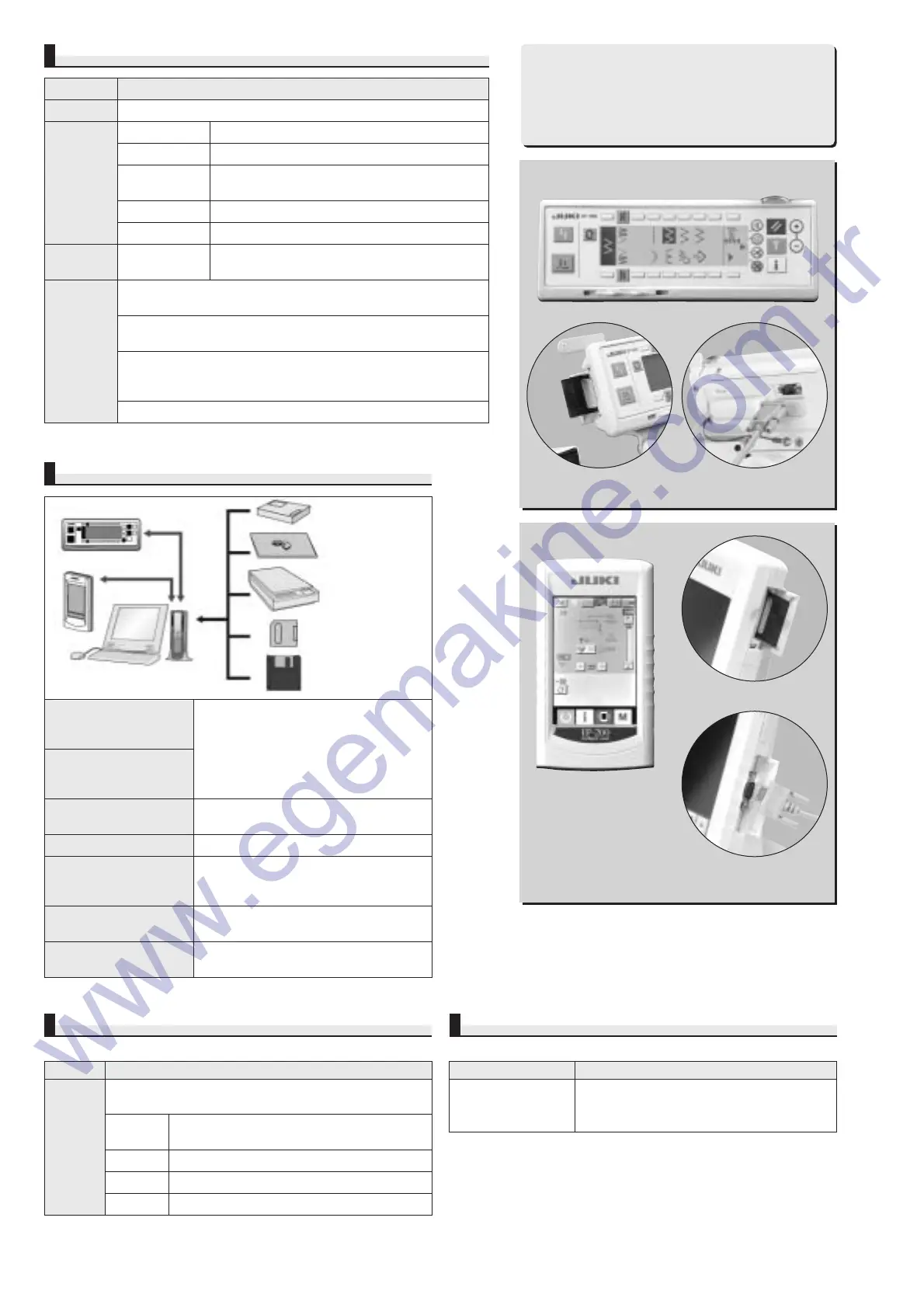

PM-1 (September, 2003) 2/2
IP-100
IP-200
Smart Media card
Smart Media card
Connected to
a personal computer
Connected to
a personal computer
IP-100
IP-200
ROM Writer
Digitizer
Scanner
Mouse
Smart Media
Floppy disk
IBM PC/AT
compatible personal computer
Operating environment for Personal Computer
System Formation
Digitizer ROM Writer
Specifications
The following is specifications of digitizer for PM-1.
Digitizer
ROM writer is required to read and write ROM data with PM-1.
By connecting with a personal computer
line, sewing machine equipped with the
latest operation panel IP series can
perform sew-off and data can be checked
and edited on the spot.
Specifications
Specifications
＊It cannot be connected with standard panels of LBH-1790 and LK-1900A.
Item
Item
IP-100
For LZ-2290
Operation panel
IP-200
For LBH-1790, LK-1900A
Operation panel
ROM Writer
Digitizer
Smart Media
Reader/Writer
Floppy disk Driver
Scanner
Through a PC on-line connection, sew-off
can be performed and entering and
correcting data is possible on the spot.
Required to enter pattern data in ROM for
LK1900 series and AMS-205/206.
Use to input from the original print.
Required to enter pattern data into
Smart Media of LZ-2290A, LBH-1790,
and LK-1900A.
Required to input data into disks of AMS series
and AVP, excluding AMS-205 and 206.
Able to trace images from the original and
input data (Use BMP file).
To be used with PM-1
data file input/output
functions
ROM Writer has to be able to read and write ROM of
sewing machines as well as to input /output Intel
HEX file through PC connection.
Connect with RS-232C (any port from COM1 to COM) to
input digitizer.
Input data
format
Mode
Resolution
Baud rate
Format prepared by Graphtech Co., Ltd., conforming
to the digitizer input format Binary-1 and Binary-2.
Use Stream Mode, 20 pps
0.1mm
9600bps
IBM PC/AT compatible personal computer
CPU PentiumII300MHz or higher is recommended
Memory 32MB or higher is recommended (Do not overload OS)
Hard disk
At least 100MB is required.
Locate under "C:" as a device name
CRT resolution
Recommend 1024 x 768 dots in at least 256 different colors
Mouse/Keyboard Equipped with a mouse and a keyboard
English version
PM-1
Einglish version Windows 98 or Windows 2000
To be used with digitizer, ROM writer, or PC connection, RS-232
C channel is required respectively
To be used with Smart Media, an adaptor is required.
Locate under any device name from "A:" to "Z:"
To be used with a floppy disk, at least 1 drive of needed 3.5 inch 2DD
(720K bites) / 2HD(1.44M bite) is required. Locate under
any device name from "A:" to "Z:"
ROM Writer is required to input/output ROM on LK-1900 series
Type of PC
Operating
System
Other
