JUKI DLN-9010 Handbook

LH-3128, 3128-7, 3168, 3168-7, 3178, 3178-7, 3188, 3188-7, 3120 (September, 2003) 7/12
Bed Slide asm.
(left)
Bed Slide asm.
(right)
Bed slide asm.
(with thread trimmer)
226-50857
226-50956
226-51053
226-51152
226-50352
226-50451
226-50550
226-50659

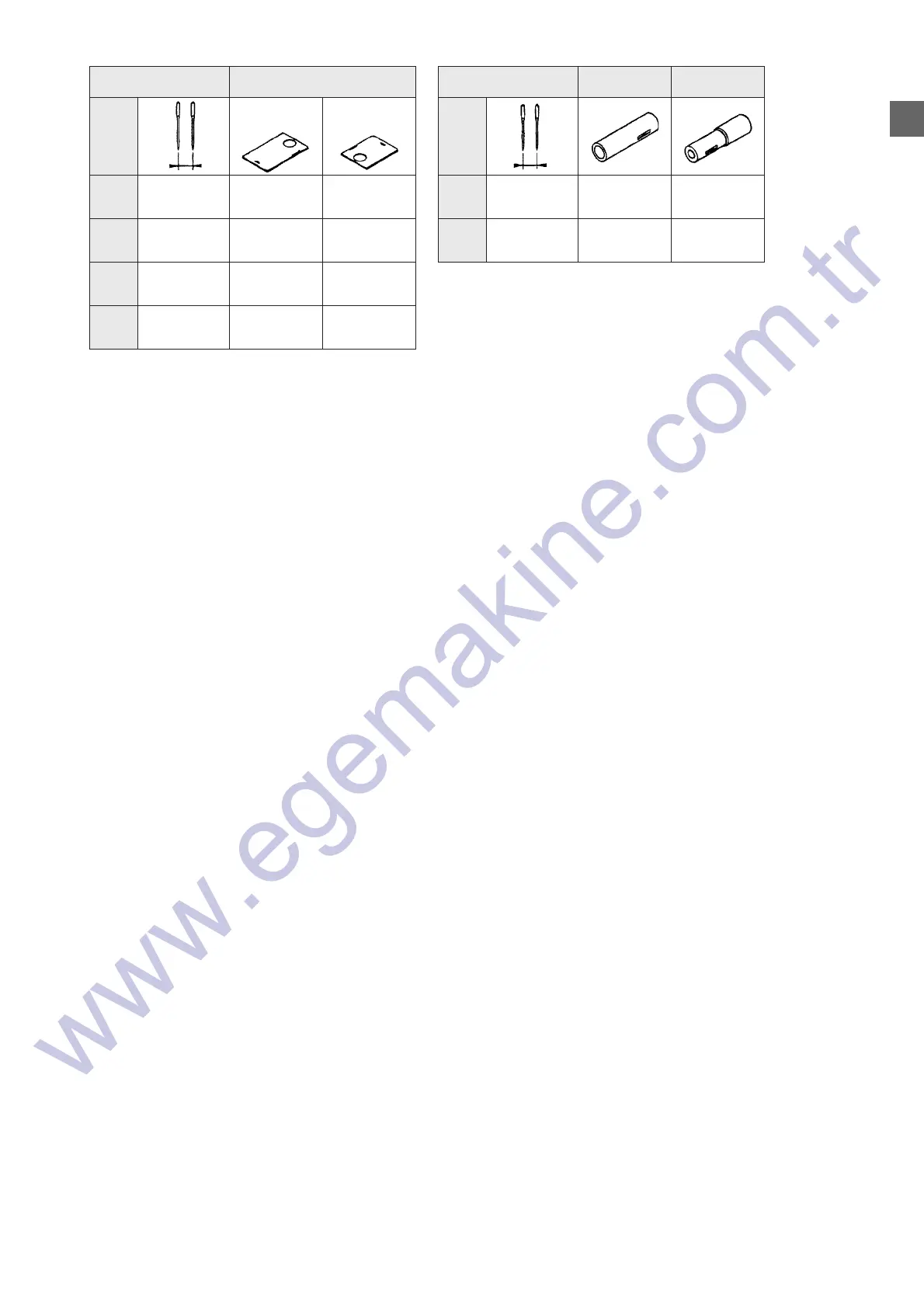

Needle gauge size
A
W
L
N
P
Q
S
U
2.4mm (3/32")
11.4mm (7/16")
12.7mm (1/2")
19.1mm (3/4")
22.2mm (7/8")
28.6mm (1-1/8")
31.8mm (1-1/4")
38.1mm (1-1/2")
Code
Front metal Inner metal
B1802-512-0A0A
B1802-512-0AB
B1803-515-0A0
101-12357
Needle gauge size
A
P
Q
U
2.4mm (3/32")
22.2mm (7/8")
25.4mm (1")
38.1mm (1-1/2")
Code
LH-3128/3128-7
~
~
~~
~ ~
~
~
~~
~ ~
2
