JUKI HZL-NX7 Service Manual

– 7 –
○

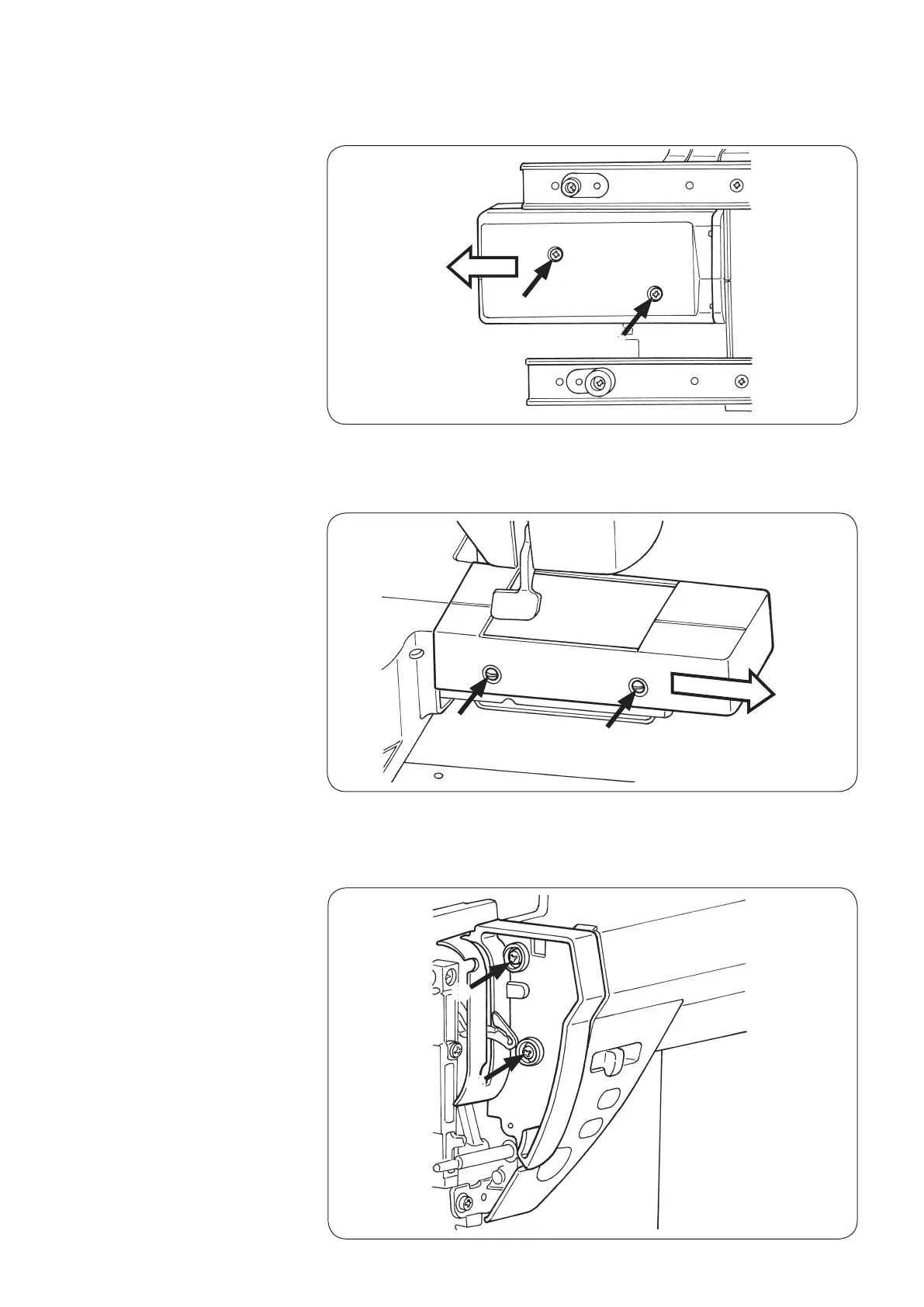

Removefree-armlowerbottomcoversetscrews
󱢼
and
󱢽
.Pulloutthebot-
tom cover of the free arm in the direction of the arrow.
6) Bottom cover of the
free arm
○
Remove free-arm upper cover setscrews
󱢾
and
󱢿
. Pull out the upper cover
of the free arm in the direction of the arrow.
7) Upper cover of the
free arm
○
Remove setscrews
󱣀
and
󱣁
from the face plate cover.
Remove the face plate cover.
8) Face plate cover
󱣀
󱣁
󱢼
󱢽
󱢾
󱢿
