– 6 –
Base tension
❺❺
❻❻
❼❼
❽❽
❸❸
❹❹
❾❾
󱢳󱢳
Junction connector
○

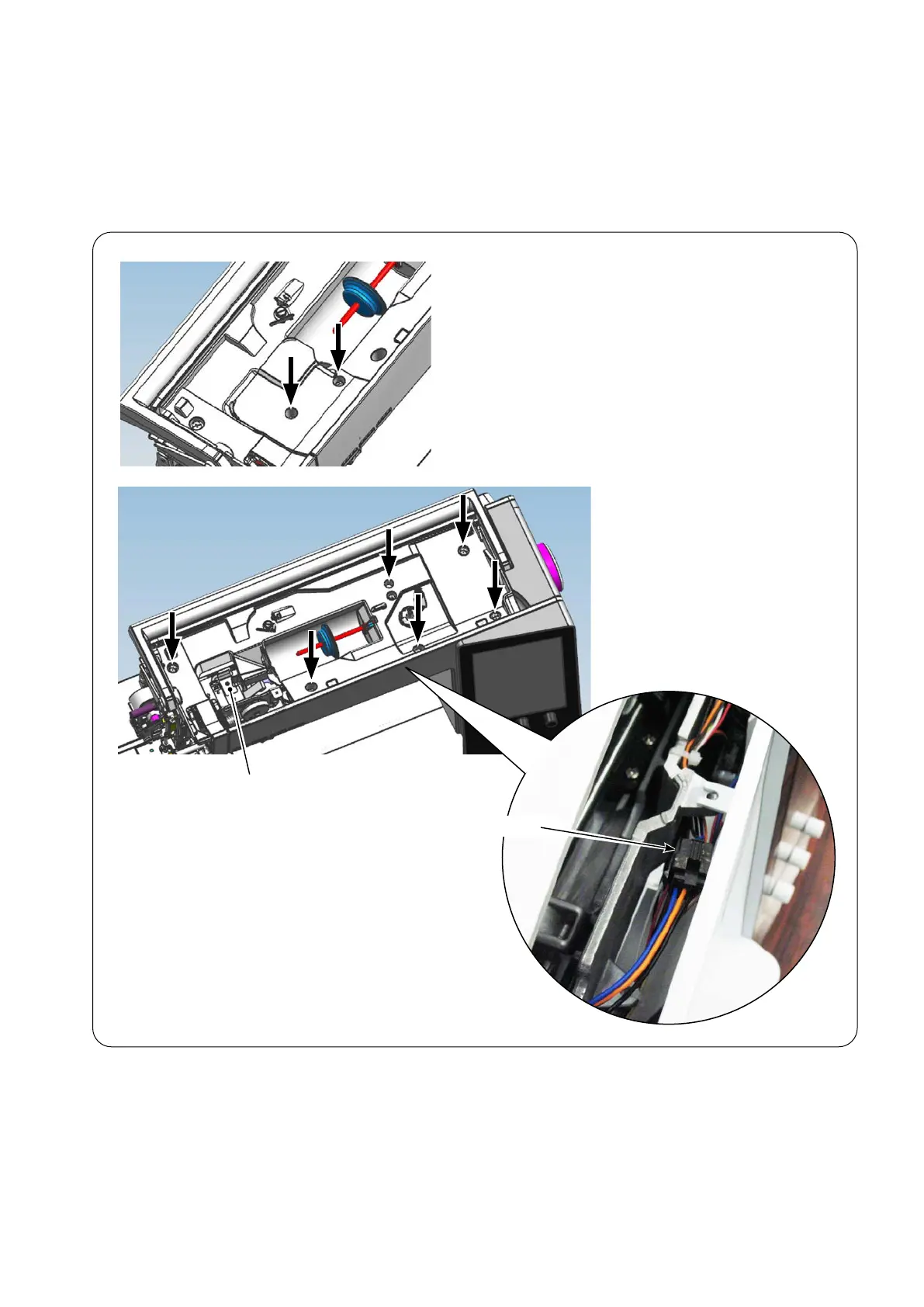

Remove setscrews
❸
and
❹
from the thread tension cover.
Remove the thread tension cover.
○
Remove setscrews
❺
to
󱢳
from the spool cover.
○
Removethebobbinwindingmotorjunctioncablefromthejunctionconnector.
○
Remove the spool cover from the main unit of the machine, paying attention to
thebasetension.
4) Spool cover
