JUKI HZL-UX8 Series - Disassembling Machine Covers; Top cover removal; Face cover removal; Throat plate removal

– 5 –
❶❶
❷❷
○
Toremovethetopcover,bowthehingesectionoftherightsideofthecover.
○
Remove setscrews
❶
and
❷
from the face cover.
Then, remove the face cover.
○
Fittingaat-bladescrewdriver(T-shape)inthenearestslotinthethroatplate,
pushupthethroatplatewiththescrewdriveruntilitcomeso󰀨.
Then remove the throat plate.

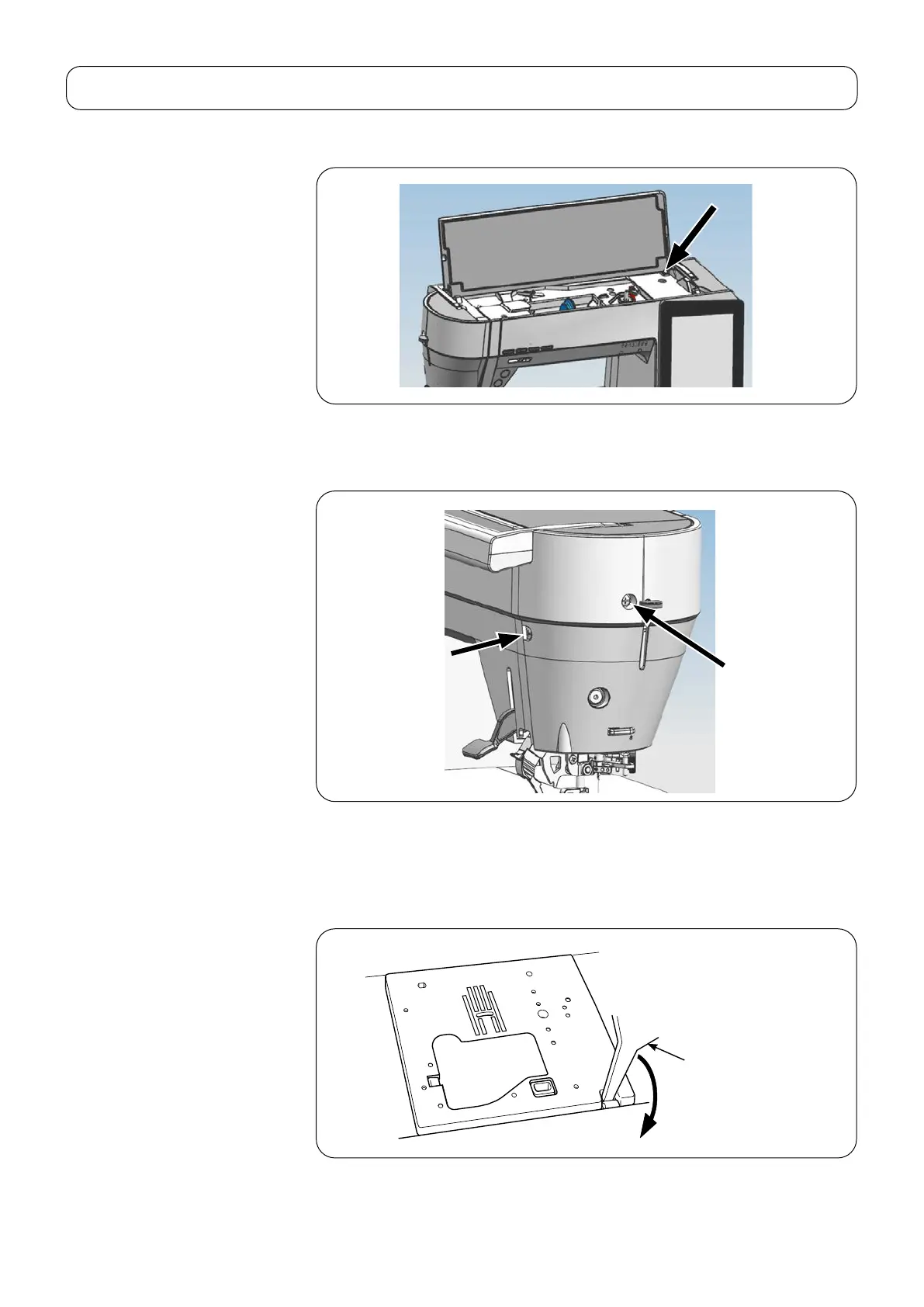

[4] Disassembling the machine covers
1) Top cover
2) Face cover
3) Throat plate
T-shape
