JUKI HZL-X Series User Manual

– 7 –

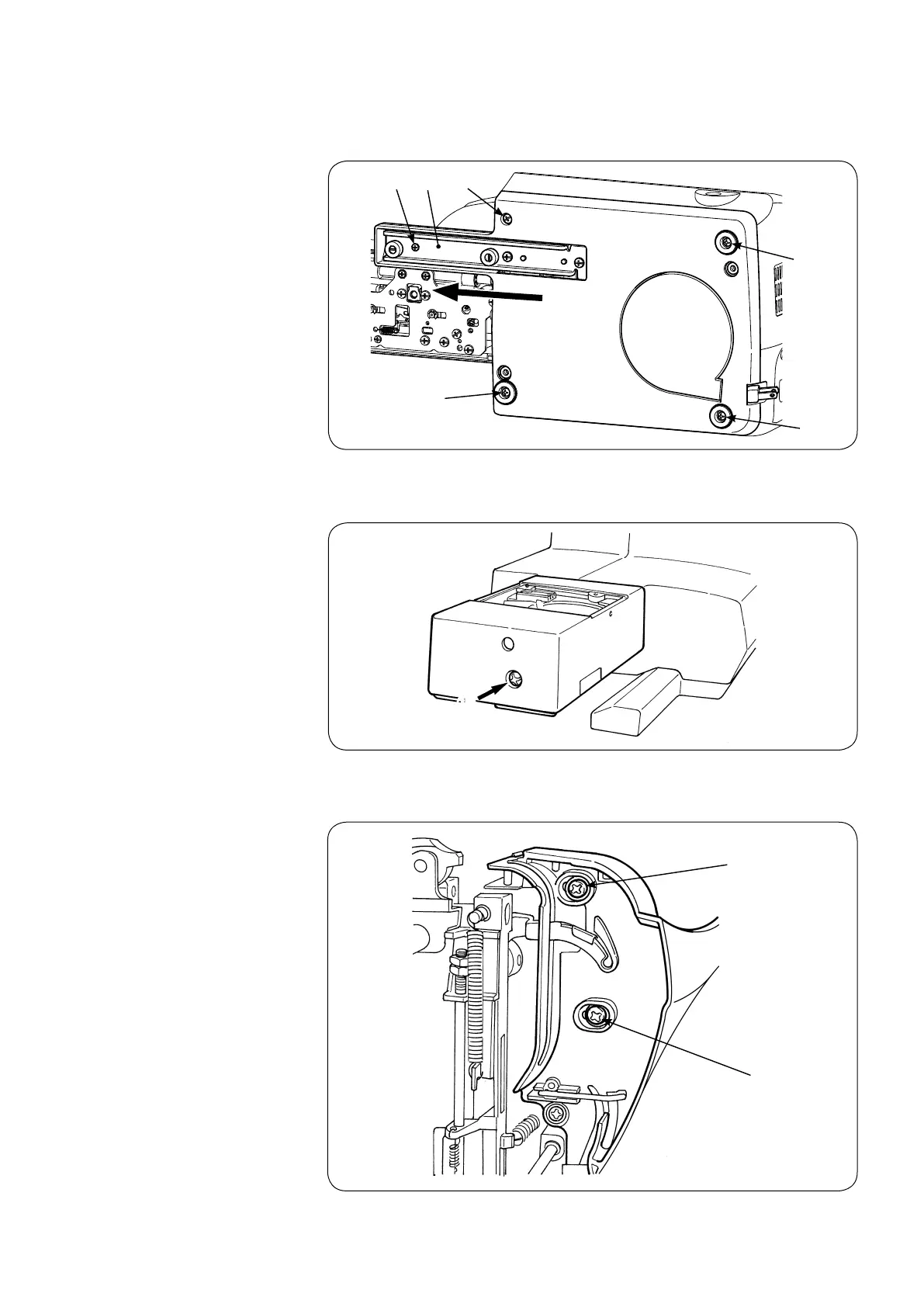

6) Bed cover
○
Remove setscrews
!3
to
!5
fromtherubbercushionofthebedcover.Remove
setscrew
!6
fromthebedcover.RemovesetscrewB
!7
fromthebedcover.
Pulloutthebedcoverfromthemetalplate
!8
in the direction of the arrow.
○
Remove setscrew
!9
from the upper cover of the free arm.
Remove the upper cover.
○
Remove setscrews
@0
and
@1
from the face plate cover.
Remove the face plate cover.
7) Upper cover of the free
arm
8) Face plate cover
!9
@0
@1
!3
!4
!5
!6!7 !8
