Operation manualⅠ
1-1
Chapter 1 Overview of the Machine
1.1. Overview of this machine

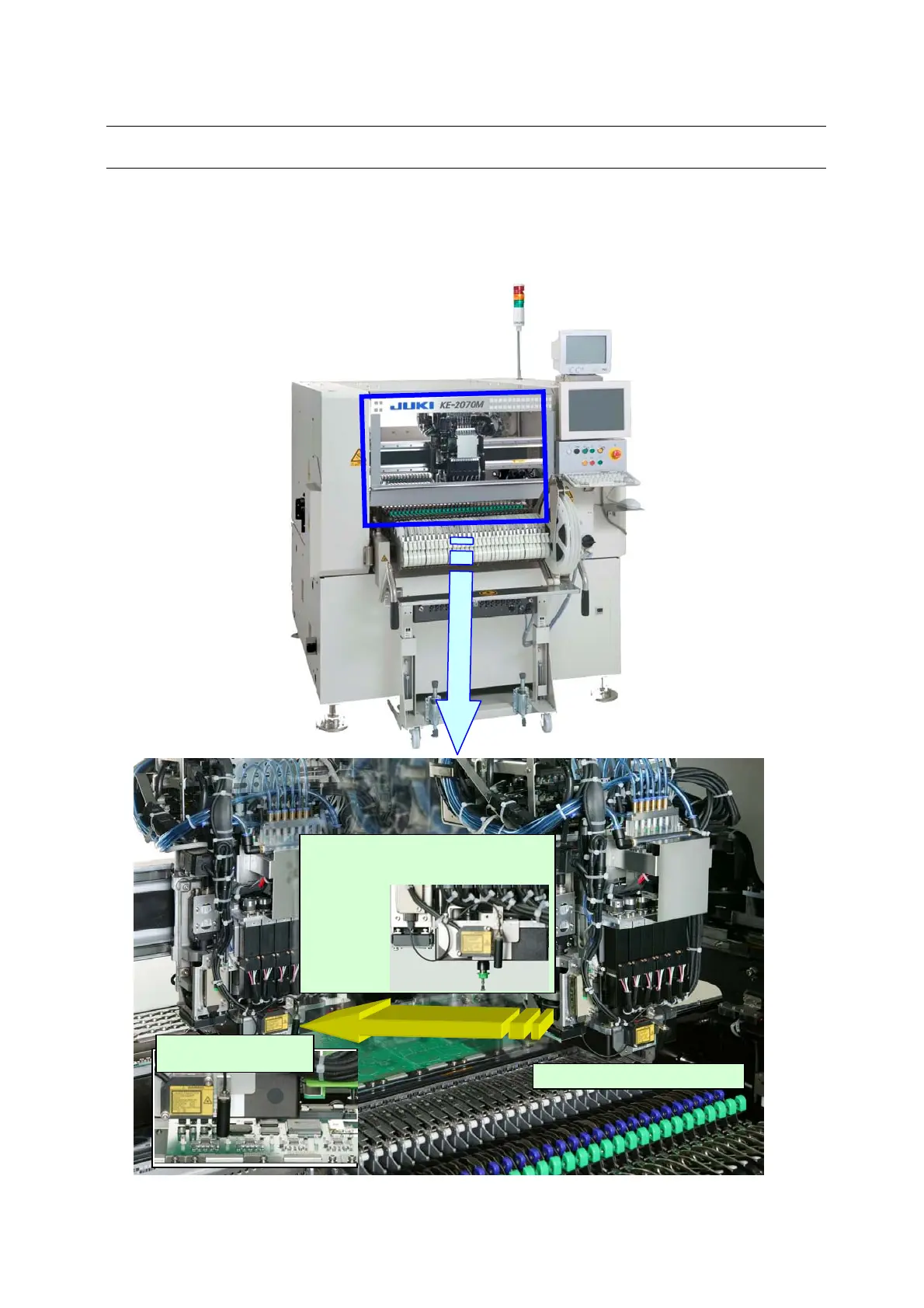

This machine is a mounter that places electronic parts on an electronic circuit board on
which solder is pasted or to which adhesive is applied.
After the head picks up a component from a component supplying device (such as a
tape feeder) and finds the center of the component, it places the component on the
programmed placement coordinates of a board.
component is picked up.
②The center of the component is
detected and the component is
moved to the placement position.
The component is
placed on a board.
