6

Never use under the wrong voltage and
phase.

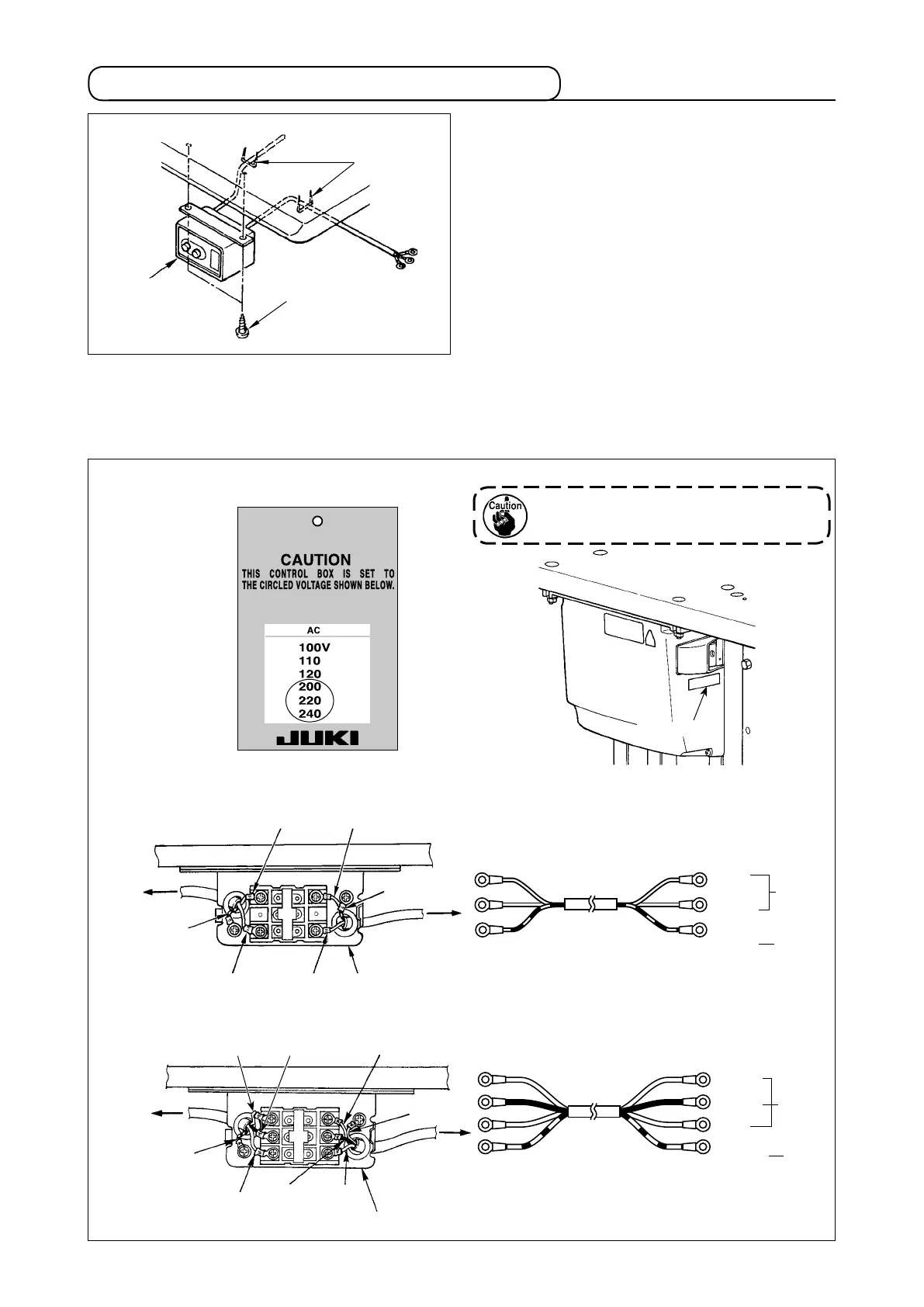

3-5. Installing and connecting the power switch
(2) Connecting the power source cord
Voltage specications at the time of delivery from the factry are indicated on the voltage indication seal. Con-
nect the cord in accordance with the specications.
Table
Brown
Brown
Light blue
Light blue
Light
blue
Green/Yellow
Green/
Yellow
Control box
Green/Yellow
Plug
Power source cord
Power switch
GND
AC
200 V
-240 V
AC
200 V
-240 V
• Connecting single phase 200V, 220V, 230V and 240V
Table
Red
Black
Green/Yellow
White
Control box
Power source cord
Plug
Power switch
GND
• Connecting three phase 200V, 220V, 230V and 240V
Green/Yellow
Red
White
Black
Green/
Yellow
Red
White Black
󰿿
󱀀
󱀁
Rating plate
Power indication tag
(For example: In
the case of 200V)
Brown
(1) Installing the power switch
Fix power switch
󰿿
under the machine table with
wood screws
󱀀
.
Fix the cable with staples
󱀁
supplied with the ma-
chine as accessories in accordance with the forms of
use.
