28. FIXING THE FEED ADJUSTING DIAL

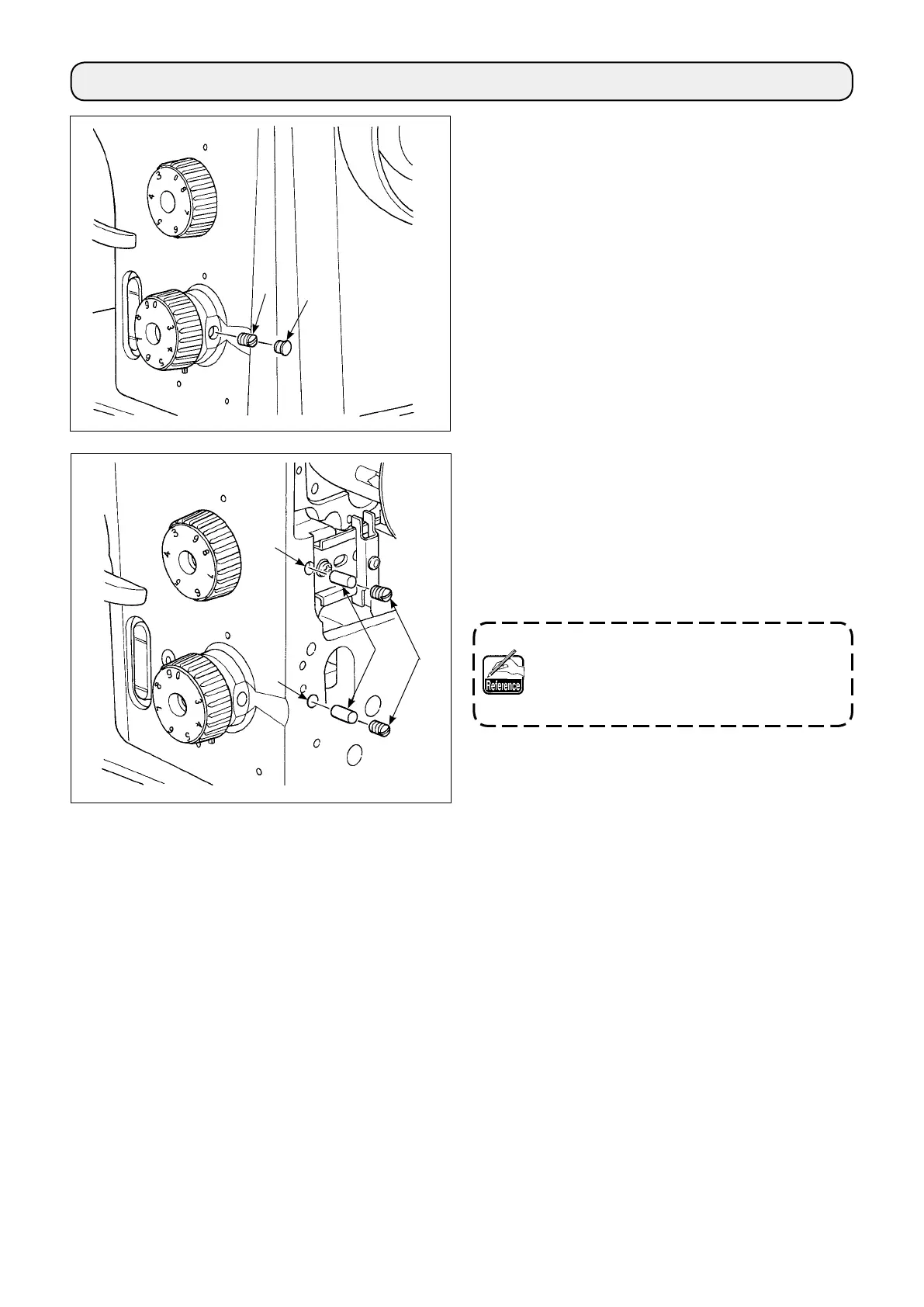

If the feed adjusting dial moves out of the set po-
sition when the automatic reverse feed device is
operated:
1) Removerubbercap
❶
.Tightenscrews
❷
.
To prohibit the adjustment of the feed adjusting
dial:
1) Removethemotorcoverorthebeltcover.
2) Insertstopperpin
❺
andscrew
❻
intapped
hole
❸
(orholes
❸
and
❹
fortheLU-2810-7
and-2860-7)andtightenit.
Stopper pin
❺
and screw
❻
are separately
available.
Part number of stopper pin : TA0440401MO
Part number of screw : SM8060612TP
