JUKI LU-2810 - Attaching hinge seats and support rubbers; Attaching the oil pan; Attach a filter to the oil pan

– 3 –

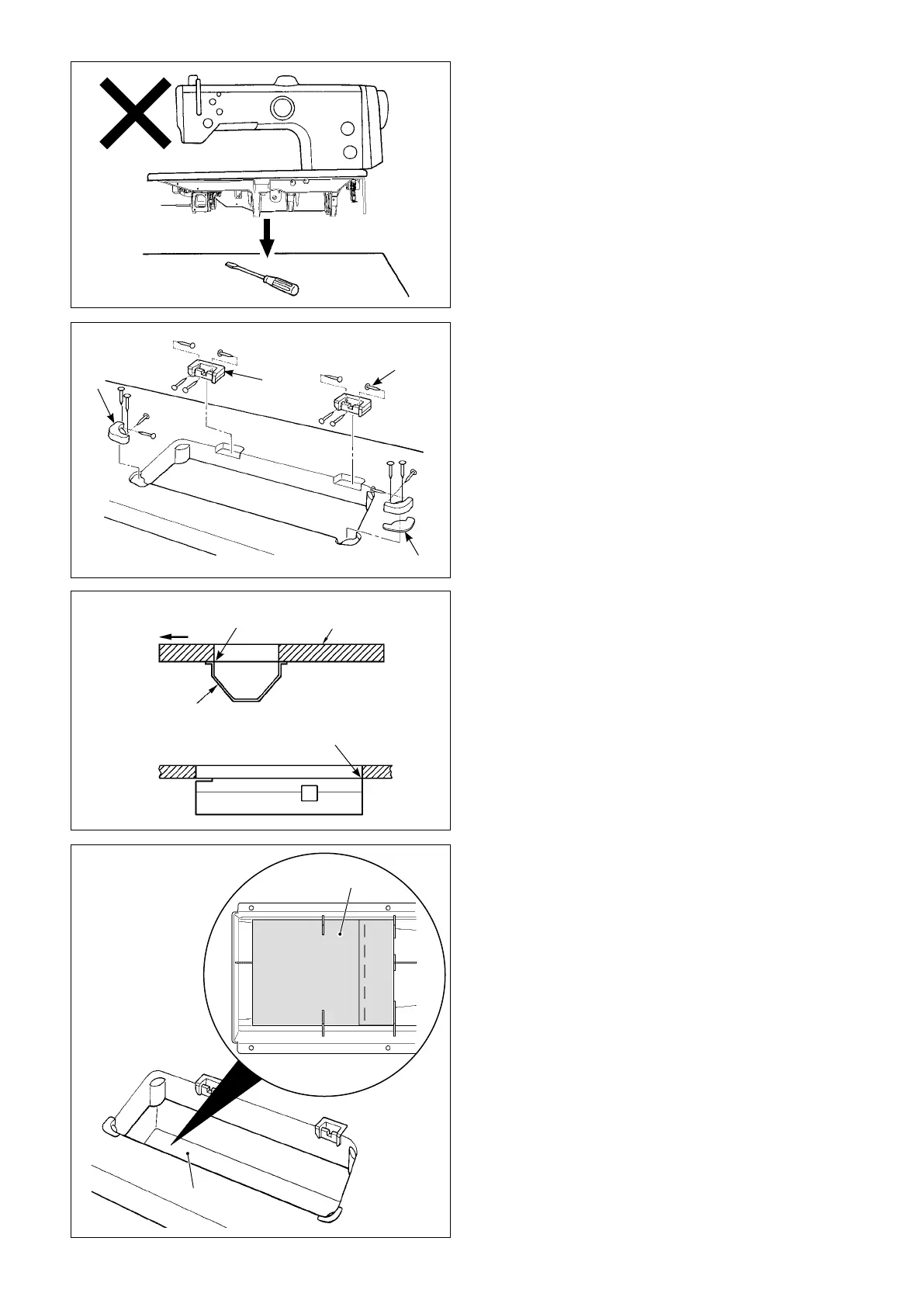

3) Attaching the hinge seats and the support rub-
bers of the machine head
Fix hinge seat
❶
, machine head support rubber
❷
, and spacer
󱢽
(one on the right side) sup-
plied with the machine on the table with nails
❸
,
as illustrated in the gure.
For the LU-2860, add one more spacer to each
of the right and left sides of the table if the left
bed slide cannot be opened because of interfer-
ence with the table.
4) Attaching the oil pan
Fix the oil pan
❹
supplied with the machine on
the table by tightening eight wood screws.
2) Do not put protruding articles such as the
screwdriver and the like at the location where
the sewing machine is placed.
❹
Operator’s side
Table
Align
Align
5) Attach a lter
❺
to the oil pan
❹
as shown in
the gure.
❶
❷
❸
󱢽
❹
❺
