– 1 –
󰴸
. SPECIFICATIONS
Supply voltage Single phase 100 to 120V 3-phase 200 to 240V Single phase 220 to 240V
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Operating
environment
Temperature:0to40˚C
Humidity : 90% or less
Temperature:0to40˚C
Humidity : 90% or less
Temperature:0to40˚C
Humidity : 90% or less
Input 320VA 320VA 320VA
Thespecicationsgiveninthetablebelowarethoseforthecontrolbox(SC-920).
Thecompactmotorunit(M92)canbecommonlyusedwithanytypeofthecontrolbox.
The aforementioned power consumption is a reference value when the DDL-8700 is used as the machine
head.
󰴹

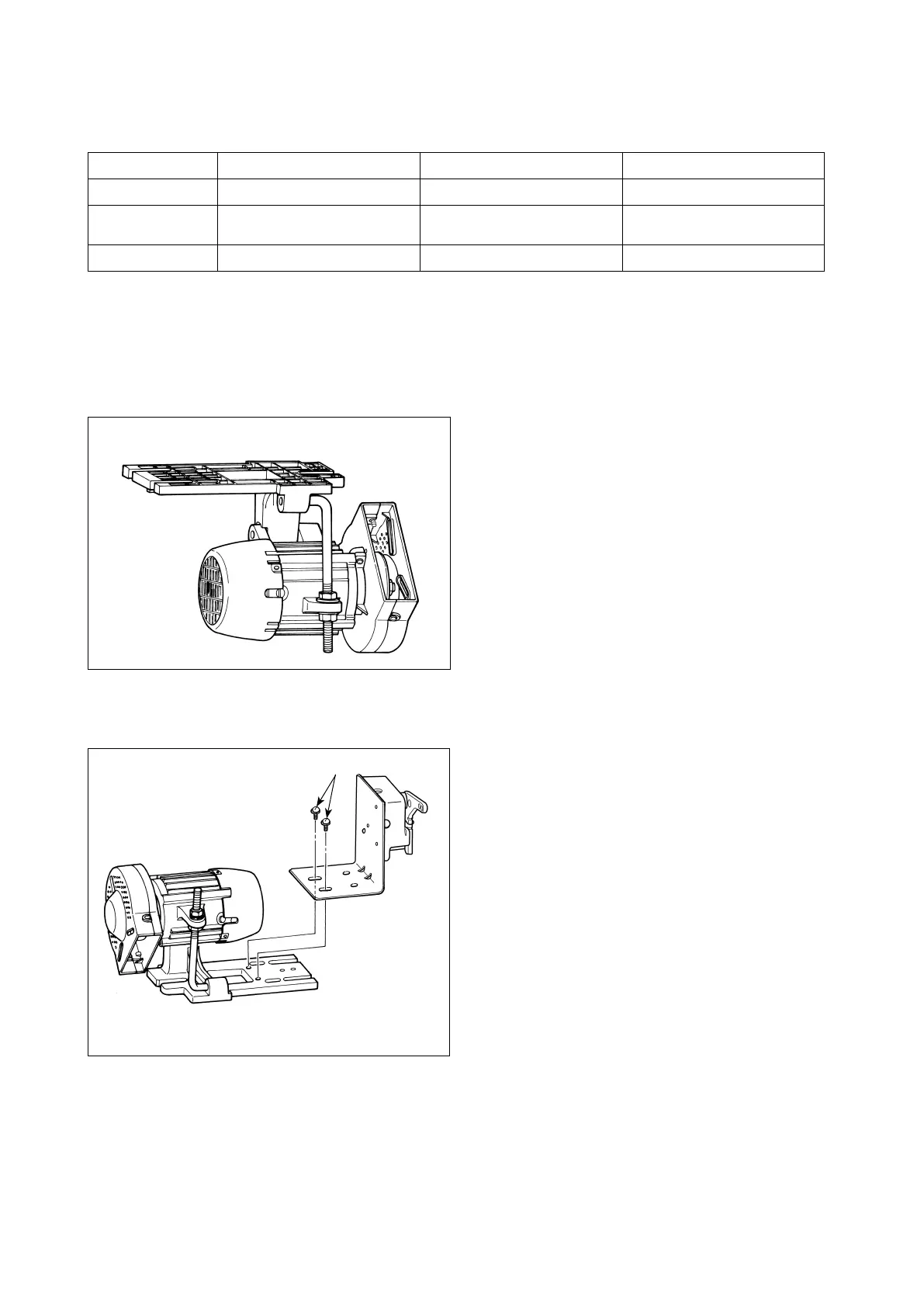

. SET-UP
M92 Compact motor unit (separately available)
To use the compact motor unit, the pedal unit has to
be installed on the compact motor unit before install-
ing the motor unit on the table.
Install the pedal unit on the motor unit following the
instructions described below:
1. Installing the pedal unit
Temporarily install the pedal unit supplied with the
controlboxontheM92compactmotorunitwithtwo
screws
󰿿
which are also supplied with the control
box.(Itisnecessarytoadjustthelocationofscrews
when installing the motor on the table.)
󰿿
