Standard Adjustment

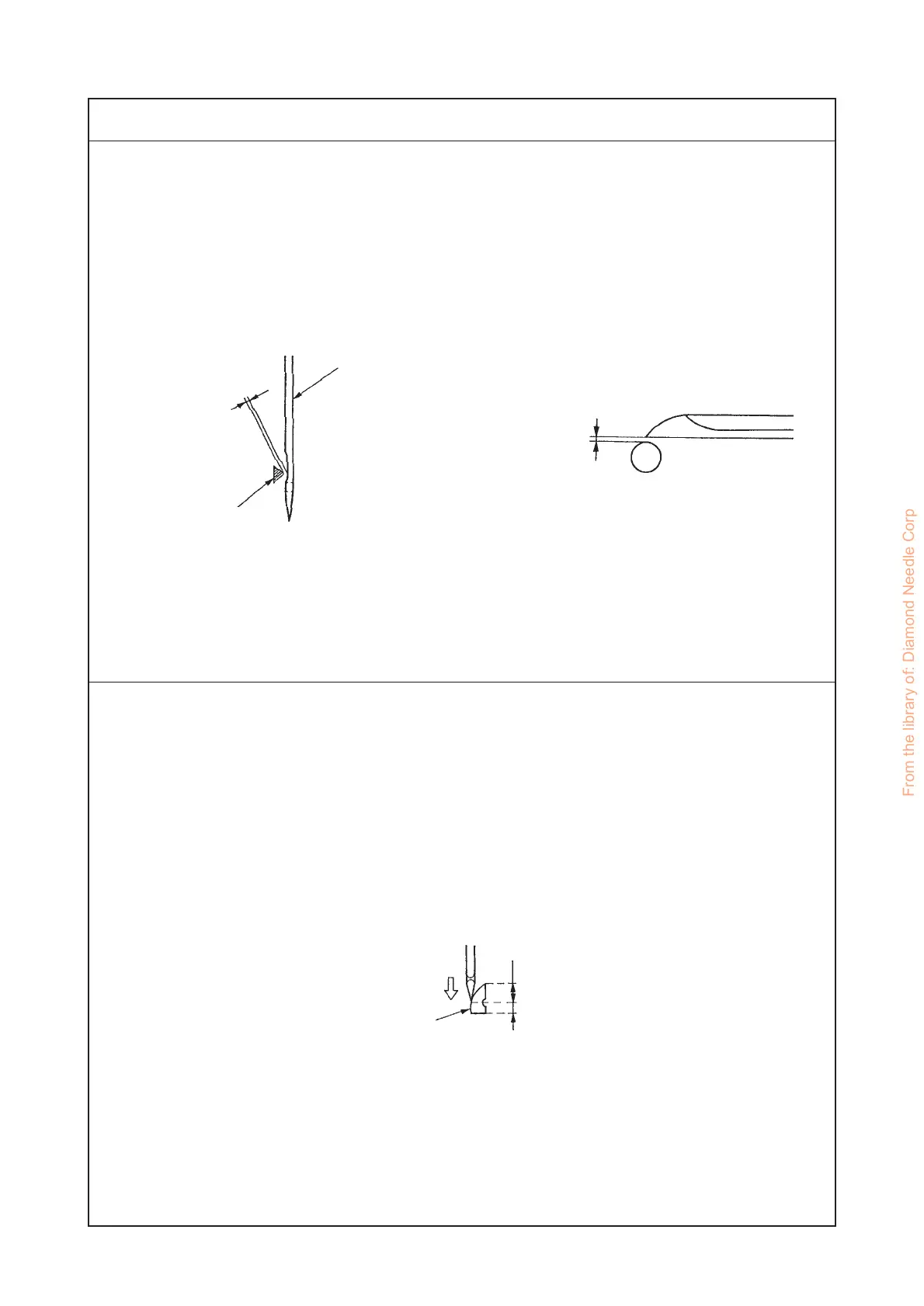

5) Clearance between the looper and needle
Clearance between the blade point of the looper and the grooves of the right/left needles is 0 to 0.05
mm. (Clearance of the middle needle becomes larger a little.)
Top end of looper
Looper
Needle
0 to 0.05 mm
6) Adjusting amount of the looper-avoid
When the needle descends, the top point of the needle touches the back of the looper at the position
of 2/3 from the upper side of the looper.
Needle descends
Back of looper
0 to 0.05 mm
Right needle
1/3
2/3
