JUKI MF-7000 Series - Other Precautions; Points to Which Locktite Is Applied

−68 −
Adjustment Procedures Results of Improper Adjustment

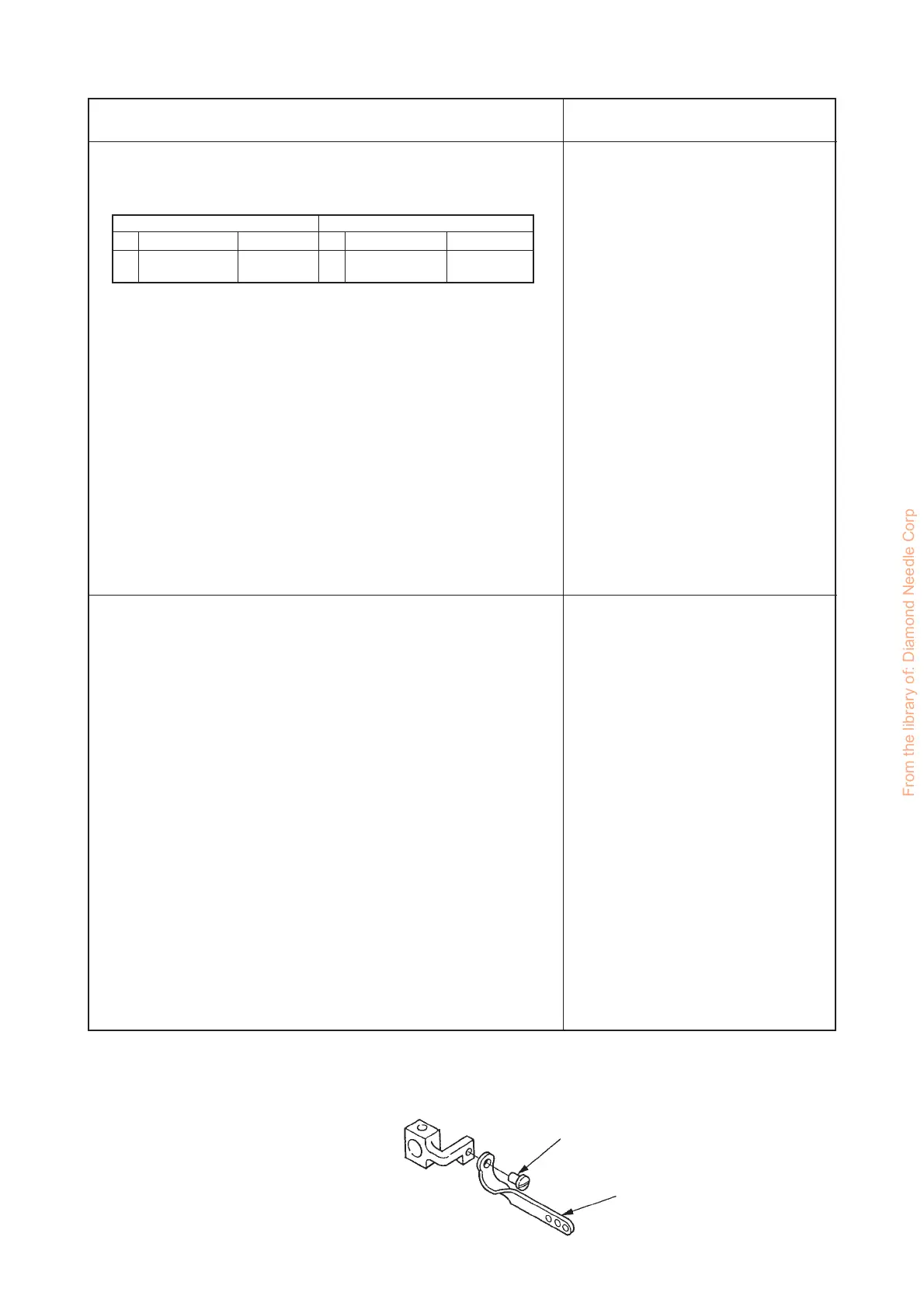

™ Remove eyelet !2 and install spreader thread guide !3.
™ Adjust the vertical position of the spreader thread guide so
that the relation between the thread hole position of auxiliary
thread take-up thread guide !4 and the spreader thread guide
!3 is as shown in the figure at the time of the lowest point of
the needle bar.
The hole on the left-hand side of the
spreader thread guide :
<When general thread is used>
Use the hole located on the lower
side.
<When stretchy thread is used>
Use the hole located on the upper
side.
Part No.
US0050392BG
Deleted parts Added parts
12
Name of part
Eyelet
Part No.
US00050392T
Name of part
Spreader thread
guide
Locktite 222
Auxiliary take-up thread guide
6. OTHER PRECAUTIONS
(1) Points to which Locktite is applied
