JUKI MF-7000 Series - Adjustment of Pneumatic Lifter

−57 −
MFC

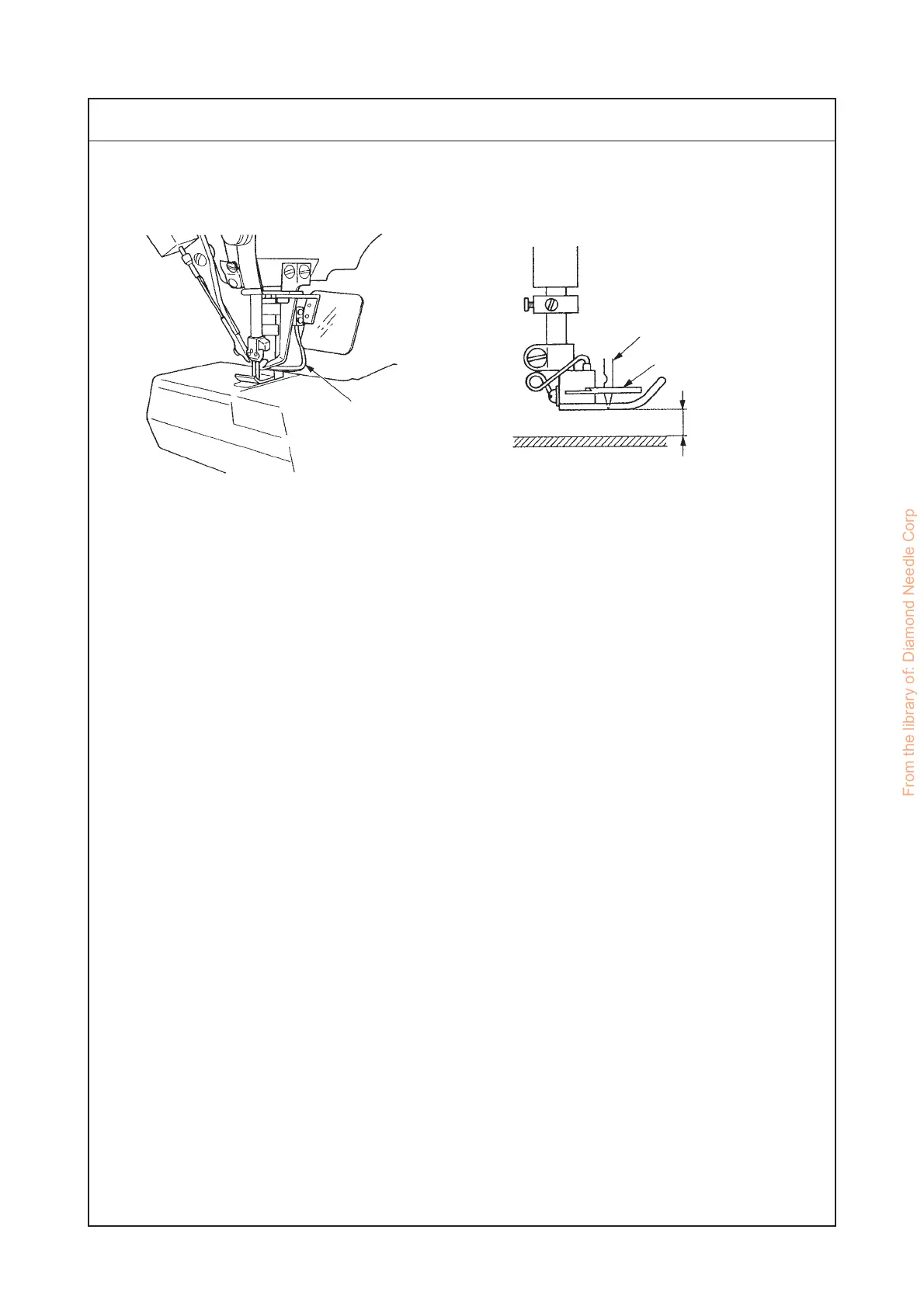

Standard Adjustment
7) Adjustment of pneumatic lifter
Spreader
Left needle
Spreader
Max. 7.0 mm
At the time of bottom dead point of needle
bar the presser foot should not contact the
underside of spreader when lifted.
At the time of top dead point of needle bar
the left needle point should not go beyond
the bottom of presser foot when presser is
lifted.
