JUKI MF-7000 Series - Position and Height of the Presser Foot; Position of the Thread Guide

−23 −
^1
%8
^0
%9
MF
Standard Adjustment
Needles
Throat plate
Max. 8.1 mm
Spreader
0.2 mm
Lower bushing

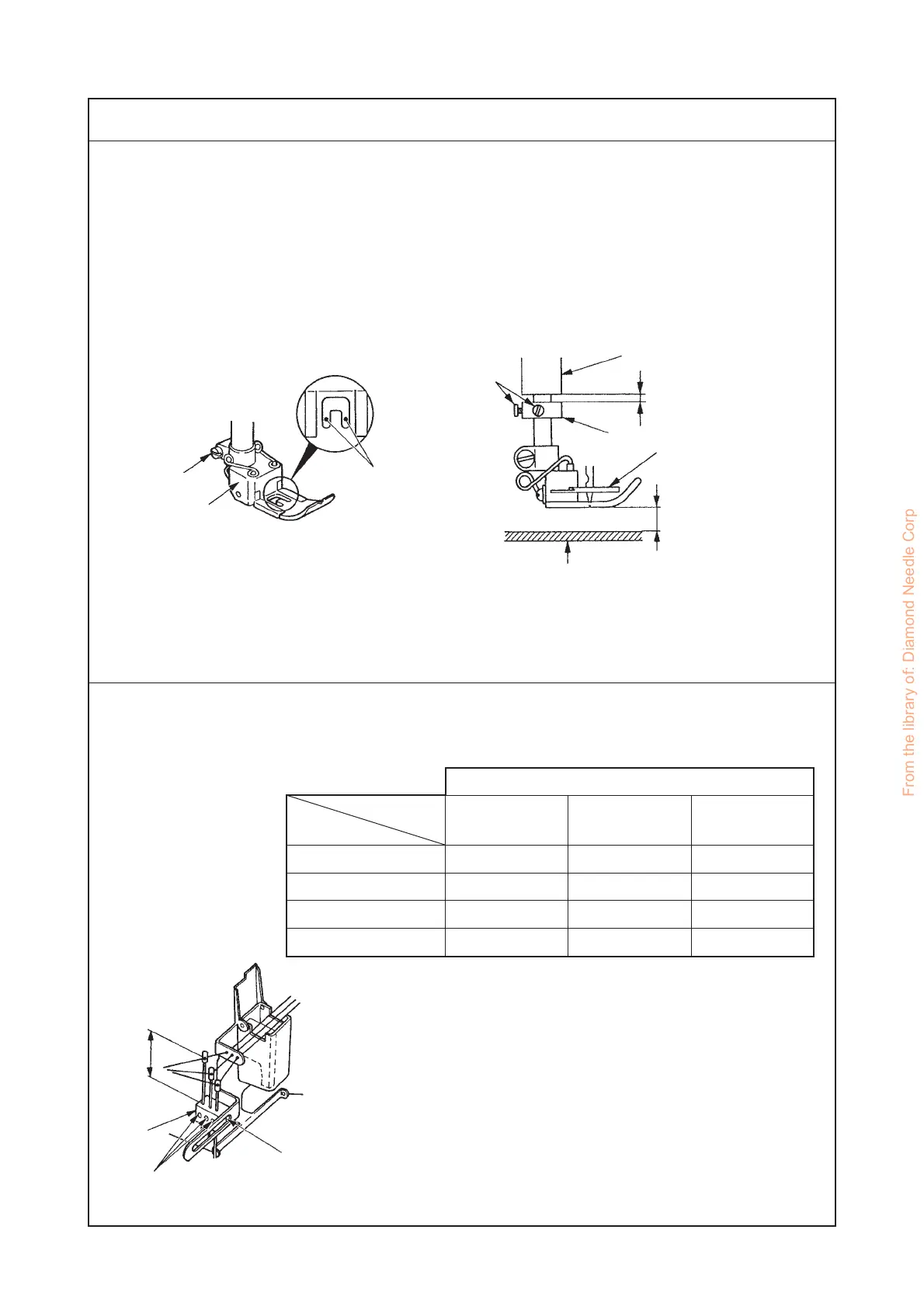

13) Position and height of the presser foot
1 Adjust the position of the presser foot so that the needles enter the center of the needle entry holes
in the presser foot on condition that the presser foot is set correct to the presser bar.
2 Adjust the height of the presser foot so that when the needle bar is in its highest point, the needle
point does not come out from the lower face of the presser foot.
14) Position of the thread guide
1 Middle thread guide and thread guide holder
Needle
Spun thread 27 mm 25 mm 23 mm
Cotton thread 27 mm 25 mm 23 mm
Wooly nylon thread 27 mm 25 mm 23 mm
Tetoron thread 27 mm 25 mm 23 mm
R
Left needle
thread
Middle needle
thread
Right needle
thread
%9
^0
R
%8
( Fix at the extreme right position of the slot. )
