JUKI MF-7000 Series - Thread Trimmer Device (MFC); Stroke Adjustment (Common to both Elctromagnetic and Pneumatic Type); Adjustment of the Right Position of Movable Knife (Return)

−51 −
A

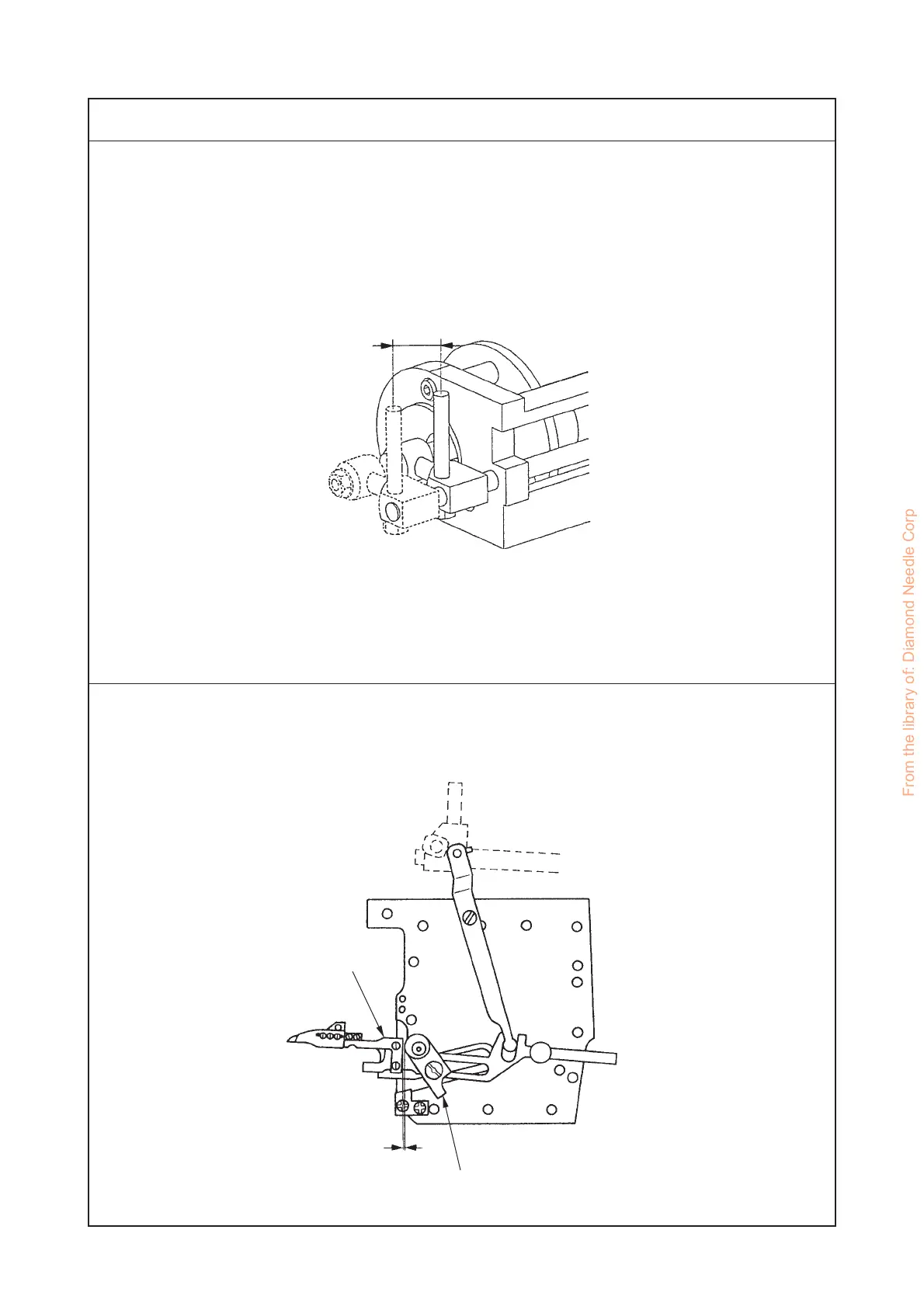

2) Adjustment of the right position of movable knife (return)
Space between lower knife 7 and lever 8 is to be 0.4 mm
1) Stroke adjustment (common to both elctromagnetic and pneumatic type)
Stroke A
17mm : Gauge 4.8mm or less
18mm : Gauge 5.6mm or more
(4) Thread trimmer device (MFC)
Standard Adjustment
0.4 mm
7
8
