JUKI MF-7000 Series - Position and Height of the Presser Foot; Position of the Thread Guide

−47 −
^1
^0
%8
%9
Standard Adjustment

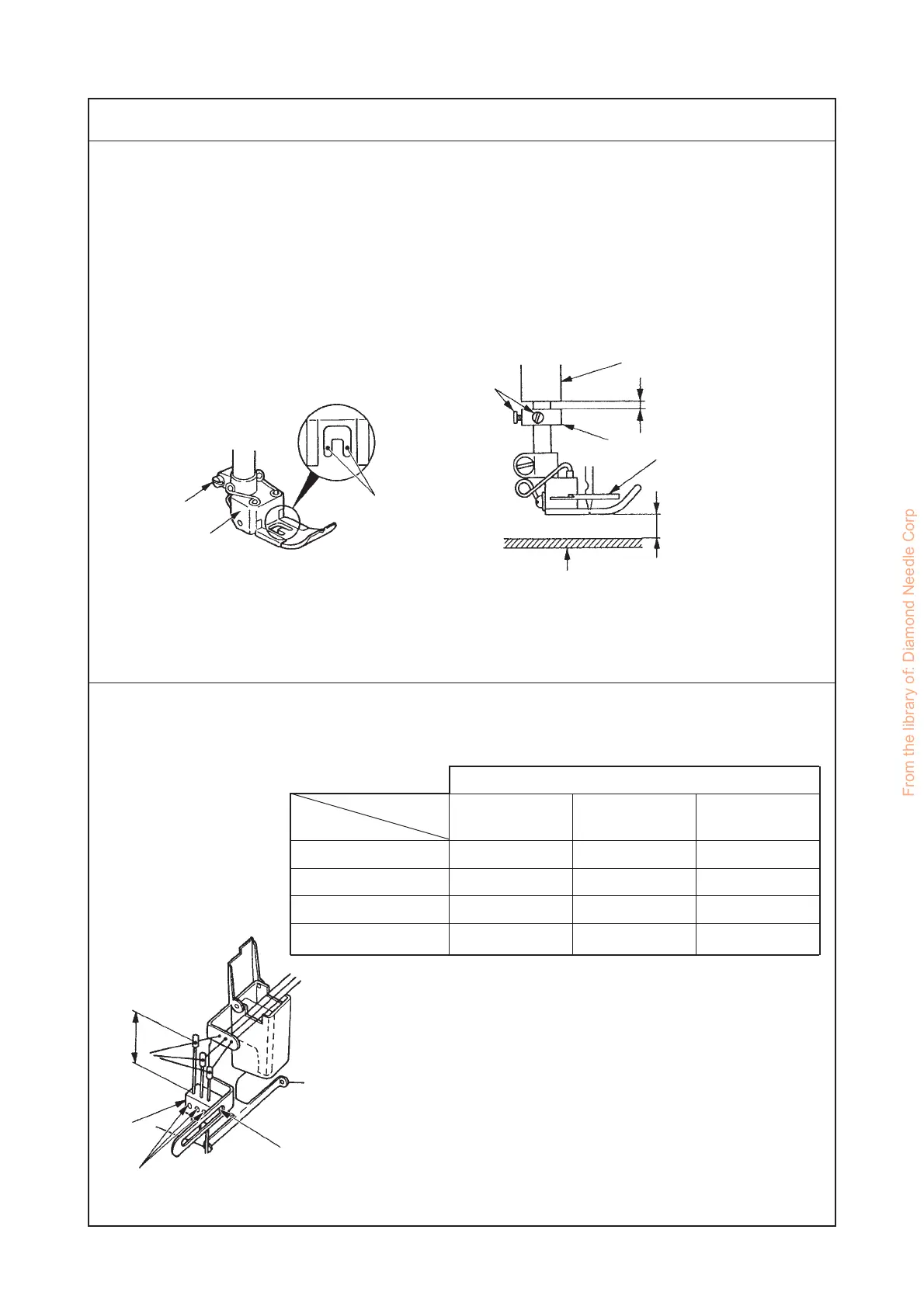

14) Position and height of the presser foot
1 Adjust the position of the presser foot so that the needles are positioned to enter the centers of the
holes of the needle entry of the presser foot on condition that the presser foot is set right to the
presser bar.
2 Adjust the height of the presser foot so that the needle top does not come out from the bottom face
of the presser foot when the needle bar is in its highest point.
15) Position of the thread guide
1 Middle thread guide and thread guide attaching base
Spun thread 16 mm 14.5 mm 13 mm
Cotton thread 16 mm 21 mm 21 mm
Wooly nylon thread 16 mm 21 mm 21 mm
Tetoron thread 16 mm 21 mm 21 mm
R
Right needle
thread
Left needle
thread
Middle needle
thread
Lower bushing
0.2 mm
Spreader
Max. 7 mm
Throat plate
Needle
Needles
R
%8
%9
^0
(Fix at the extreme
right point of the slot.)
From the library of: Diamond Needle Corp
