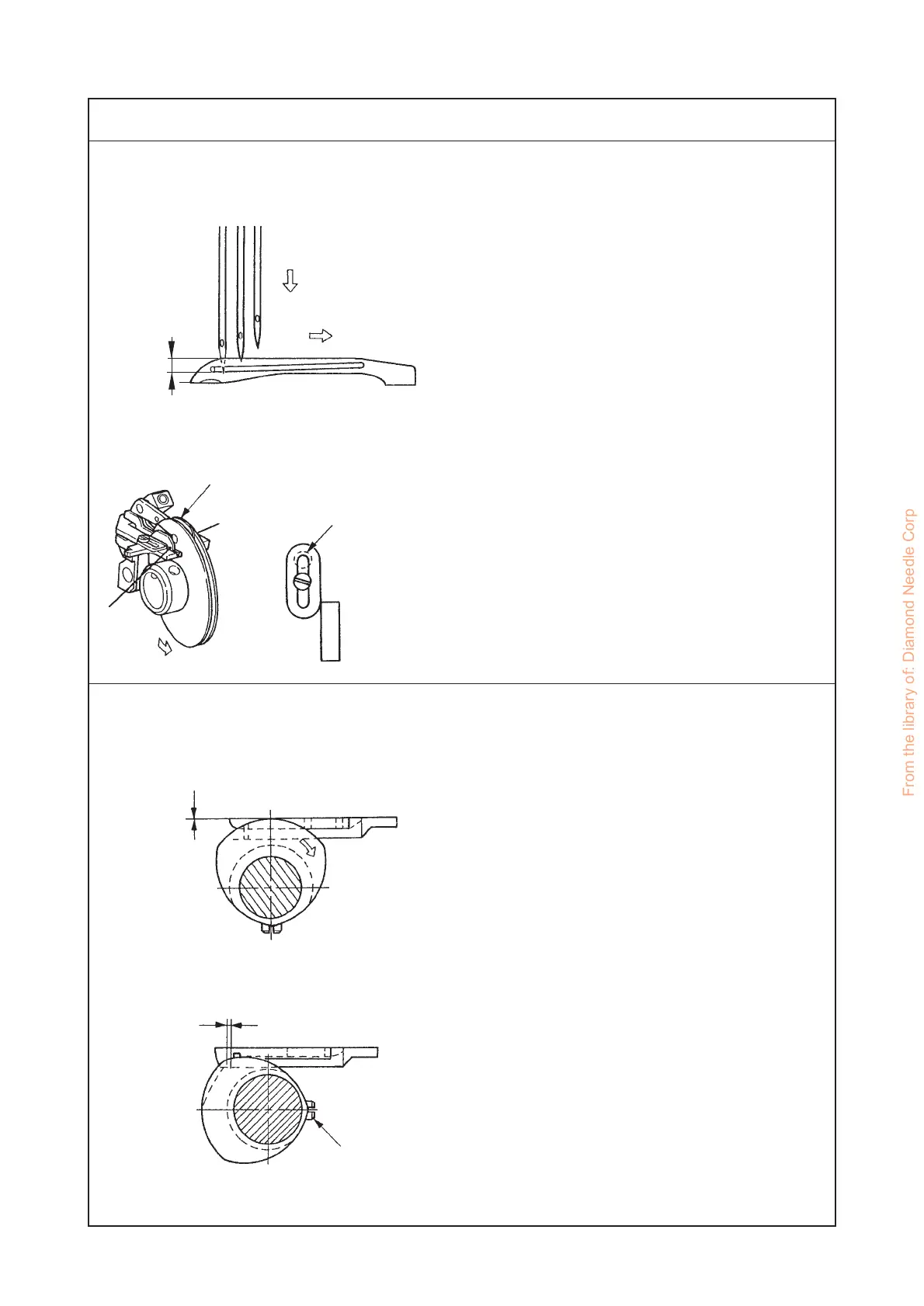

10) Looper thread cam
1 Timing of the looper thread cam
When the needle bar descends and the tip of
the left needle aligns with the lower part of the
looper, the looper thread can be cast off from
the highest point of the looper cam.
2 Position of the looper thread cam thread guide
The looper thread cam thread guide is to be set
in the center of the slot.
(In case of wooly nylon thread, at the upper end
of the slot.)
11) Looper thread wrap-up preventing cam (Old type)
1 Height of the looper thread thread guide base
The position is that the highest point of the looper
thread tangling preventing cam is 0 to 0.5 mm
lower than the upper part of the thread control
finger.
2
Timing of the looper thread tangling preventing
cam and position of the thread control finger.
When the looper thread is cast off out of the
highest point of the looper thread cam, the horn
of the looper thread tangling preventing cam
comes 1.0 mm toward you from the hole of the
thread guide of the thread control finger.
Highest point of looper thread cam
Wooly nylon thread
0 to 0.5 mm
1.0 mm
