Standard Adjustment

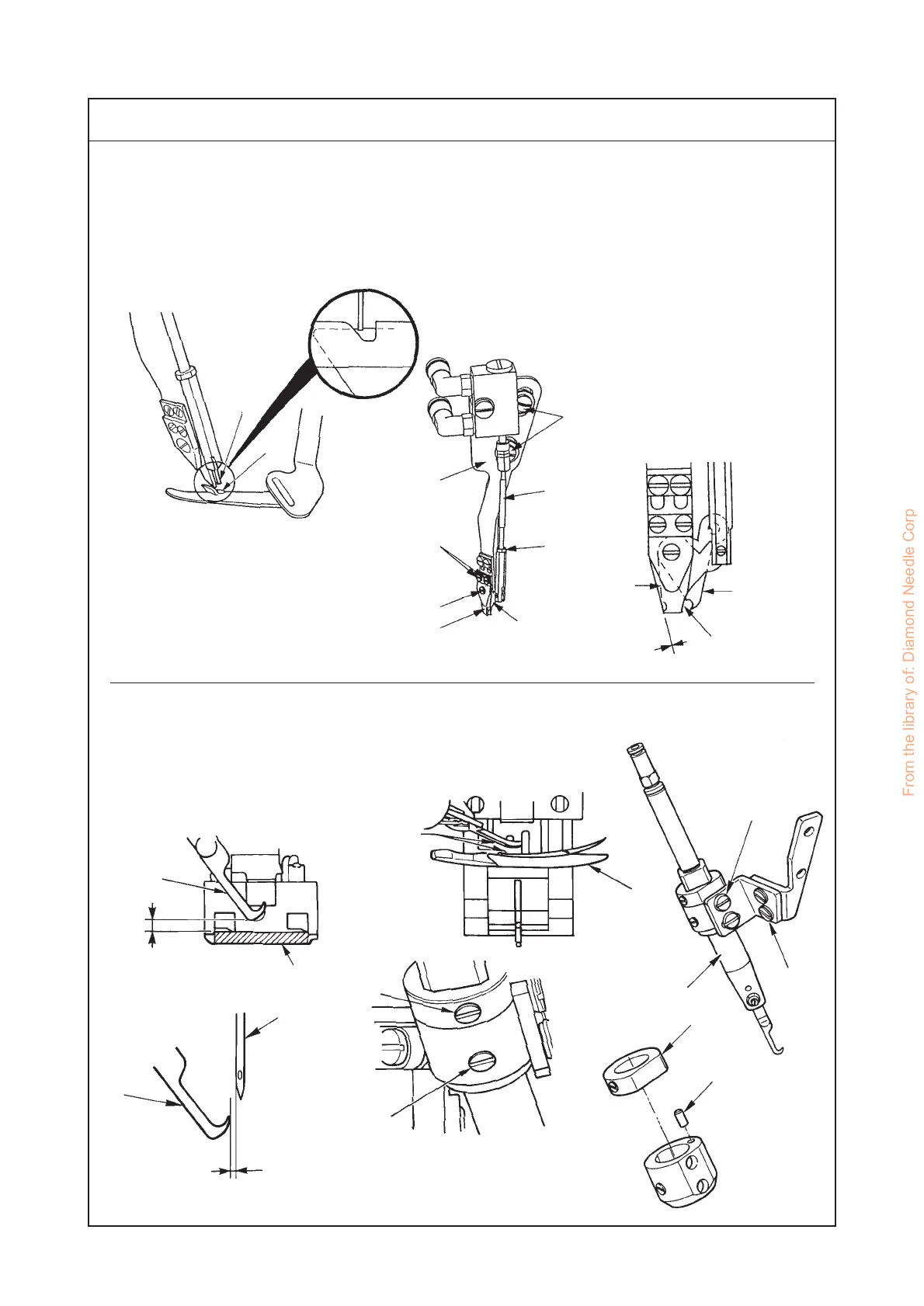

10) Adjustment of top covering thread trimmer
Make adjustment such that the top covering thread cutting movable knife %1 comes to the center in V-
shaped slot of spreader when the sewing machine is at rest, and does not contact the spreader %2
and the top covering thread when the movable knife %1 is open.
±0.5 mm
Top covering
thread
Movable
knife
open
Movable
knife
close
%3
%4
%6
%5
%1
%8
%7
%9
(Old type)
Adjusting cover thread trimme
The following adjustments are made with the needles at top dead center.
(New type)
^5
^6
^9
^7
^8
1.5 to
2mm
^0
&0
^1
^0
^3
^4
^2
Clearance between top end of
moving knife and spreader
0.2 to 0.4 mm
Clearance between top end of moving
knife and left side of left needle
0.2 to 0.4 mm
