Adjustment Procedures Results of Improper Adjustment
™ Too little clearance could
generate abnormal wear of
thread trimmer mechanism,
breakage and falling off of the
parts.
™ Too large clearance could
generate interference of knife
with looper.

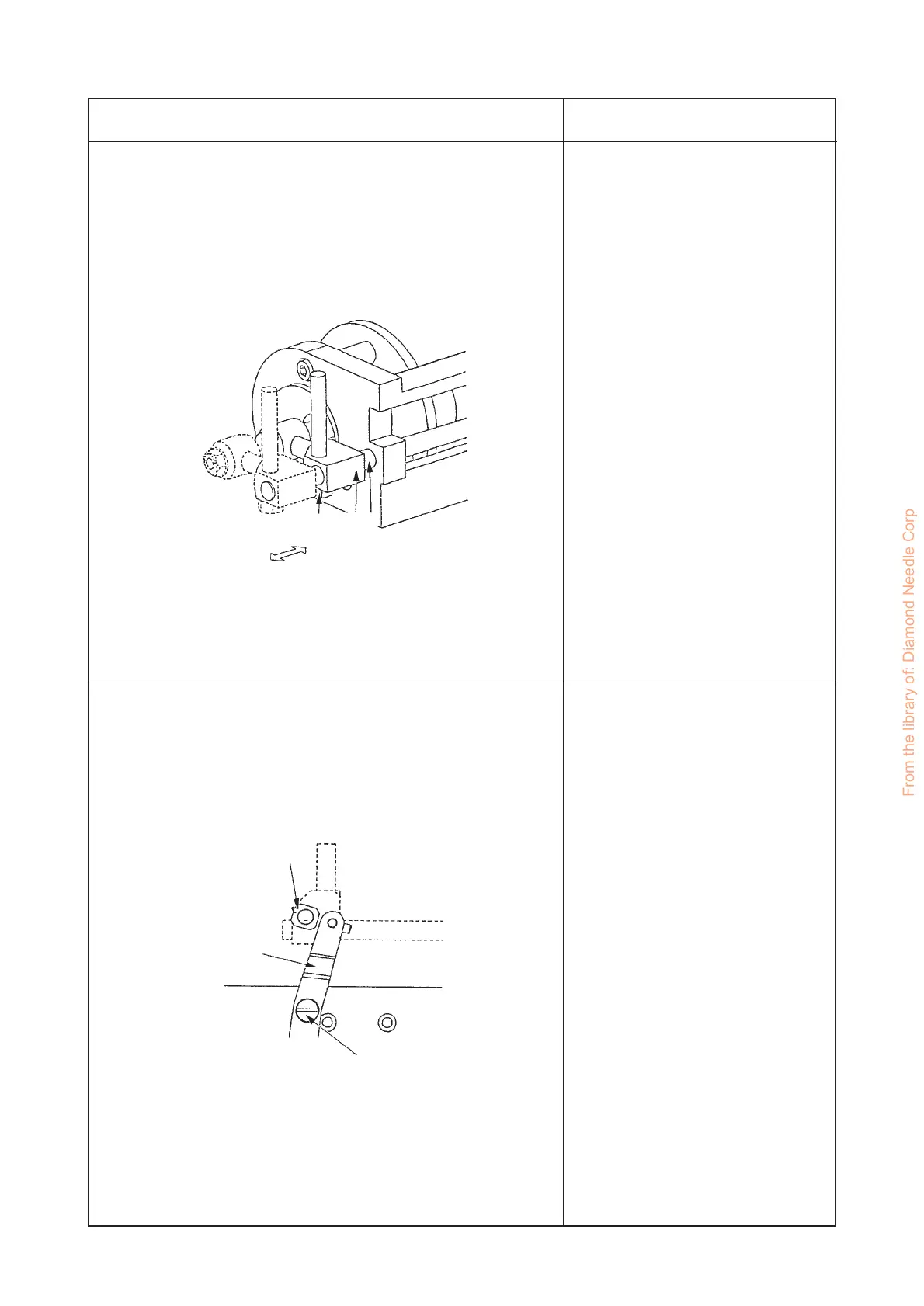

Remove hinge screw 4 , remove driving lever 5 , and make
adjustment by turning round the connecting bar 6 .
Loosen the nut 1 , and make adjustment by moving the block 2
along the shaft 3 .
™ Too short stroke disables thread
cutting.
™ Too large stroke disables looper
thread from being clamped.
Shorter stroke
Longer stroke
