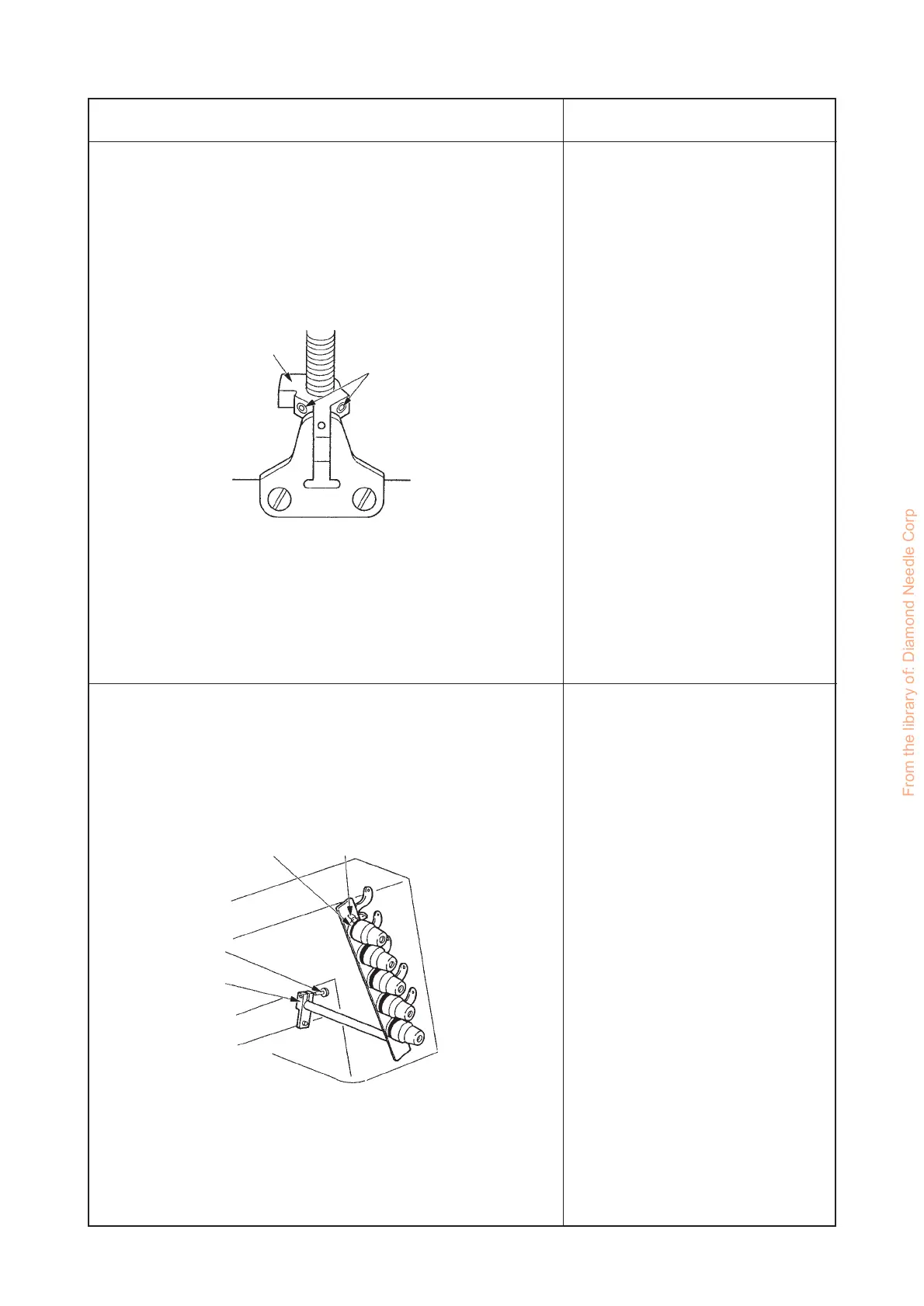

Adjustment Procedures Results of Improper Adjustment
™ If the clearance between the
presser bar bracket and the
presser bar bushing is small, the
bottom face of the presser foot
can not contact tightly to the
throat plate.
™ If the clearance is large, the lifting
amount of the presser foot will
be reduced.
™ Adjust by loosening the two screws %4 and move the presser
bar bracket %5 up and down.
™ Adjust by loosening the screw %6 and move the bracket %7.
