JUKI MP-200N Series - Spreader Stroke Adjustment; Needle and Spreader Clearance

−13 −
Standard Adjustment
(10) Adjusting the needle and the spreader
0 to 0.05 mm
NS : 1.1mm
NL : 0.9mm
1
2
3
4
4

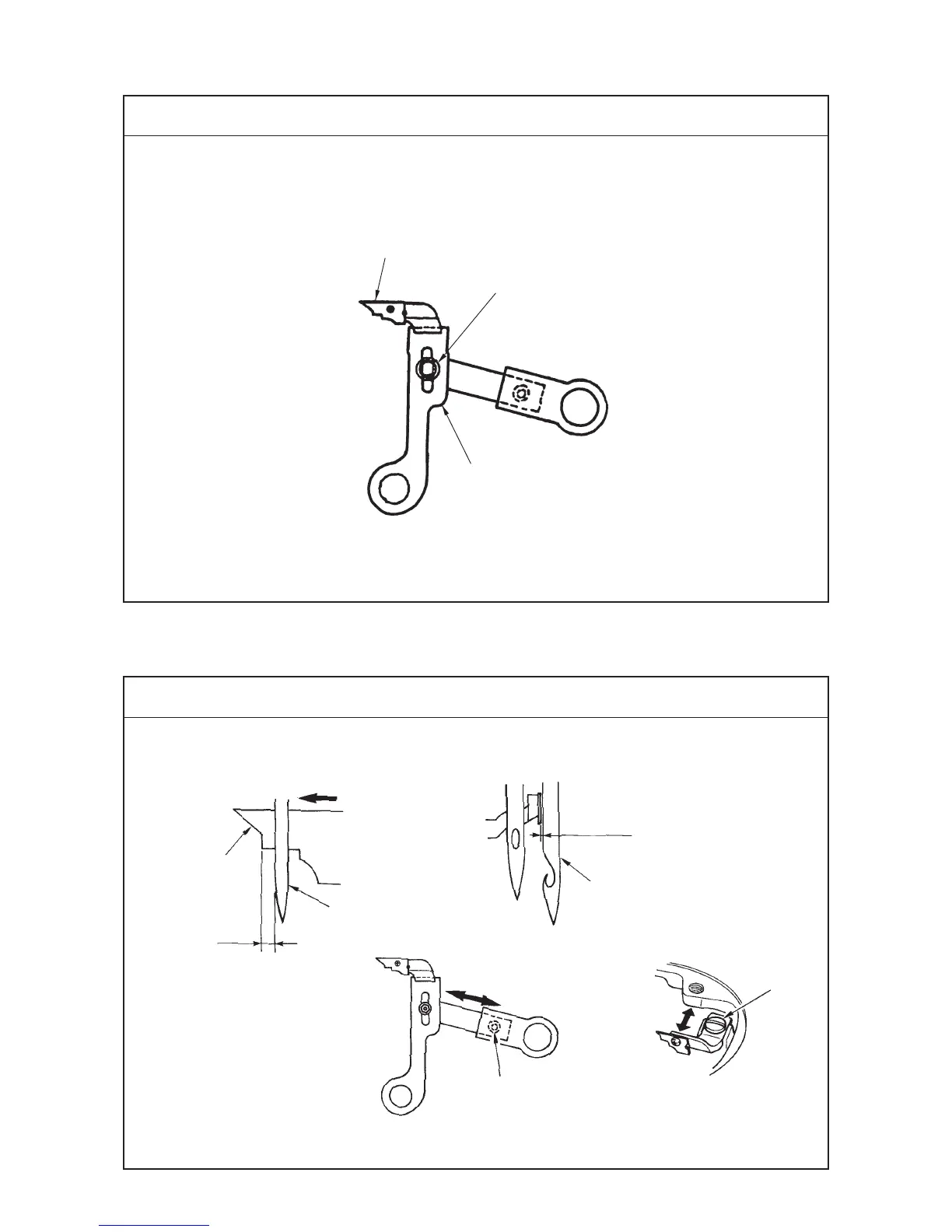

Standard Adjustment
(9) Adjusting the stroke of the spreader
Fulcrum position of spreader arm 1 can change the stroke of spreader 3 by changing the position of
hexagon nut 2. The standard position is the center of slot.
1
2
3
Most advanced position of spreader
