（3）Adjusting the lift of the presser foot
DU-141H-7, DSU, DSC
笆
笊
綏
絽
(For the LZH-1290-7, the lift of the presser is set to 15 mm.)

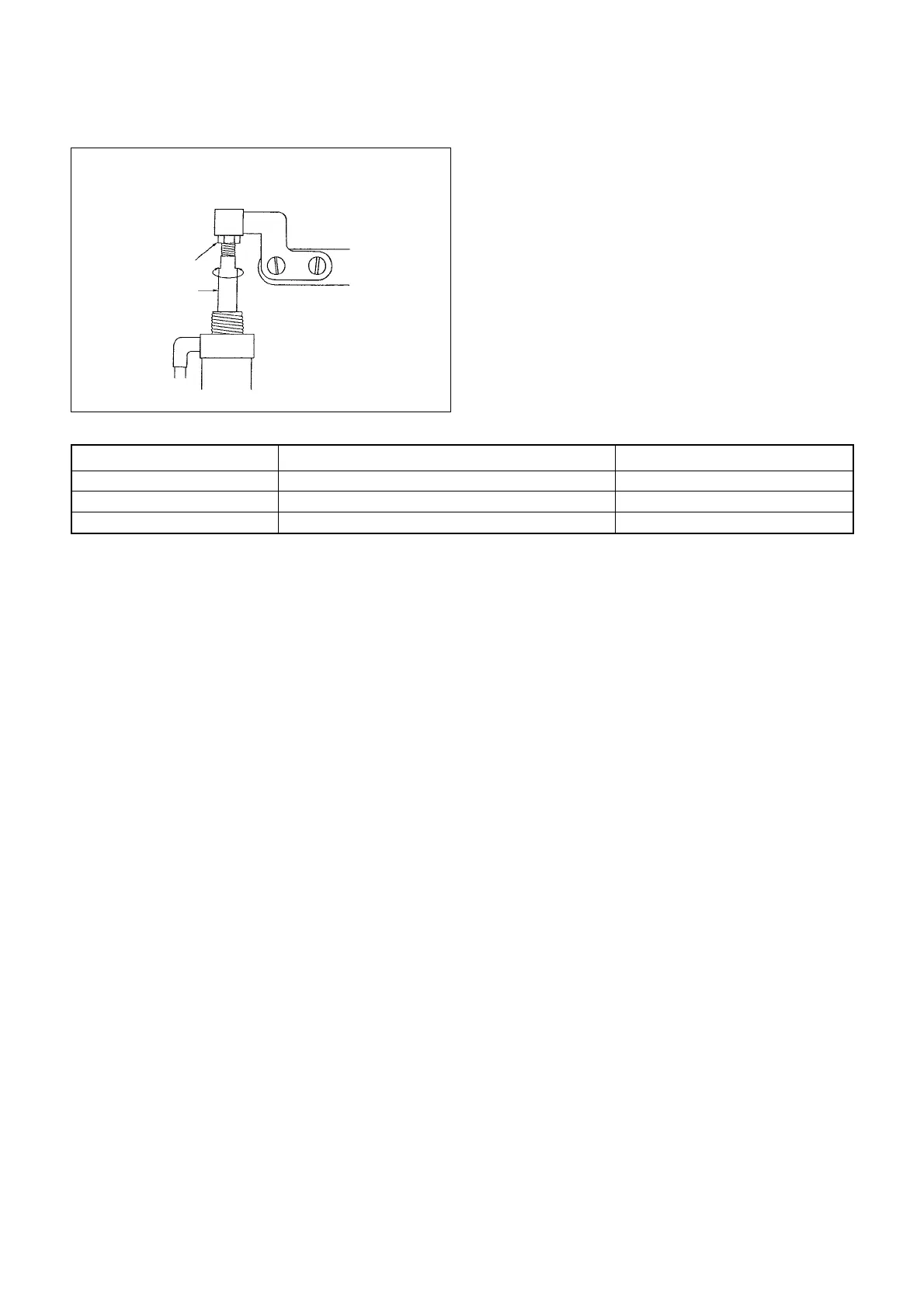

1) Loosen adjusting nut 1 and turn cylinder rod 2 to adjust so that the lift of the relevant presser foot is set to the
aforementioned values when the cylinder is fully retracted. turn in direction A to decrease the lifting amount or
in direction B to increase it.
2) After the completion of the adjustment, tighten adjusting nut 1.
Sewing machine
DU-141H-7
DSU series
DSC series
Part to go up
Lift of the intermediate presser
Lift of the intermediate presser
Lift of the feeding frame
Lifting amount (mm)
15
13
13
