Julabo F32-HE - 9.9.1. Outputs of the connector - REG+E-PROG

HE
71

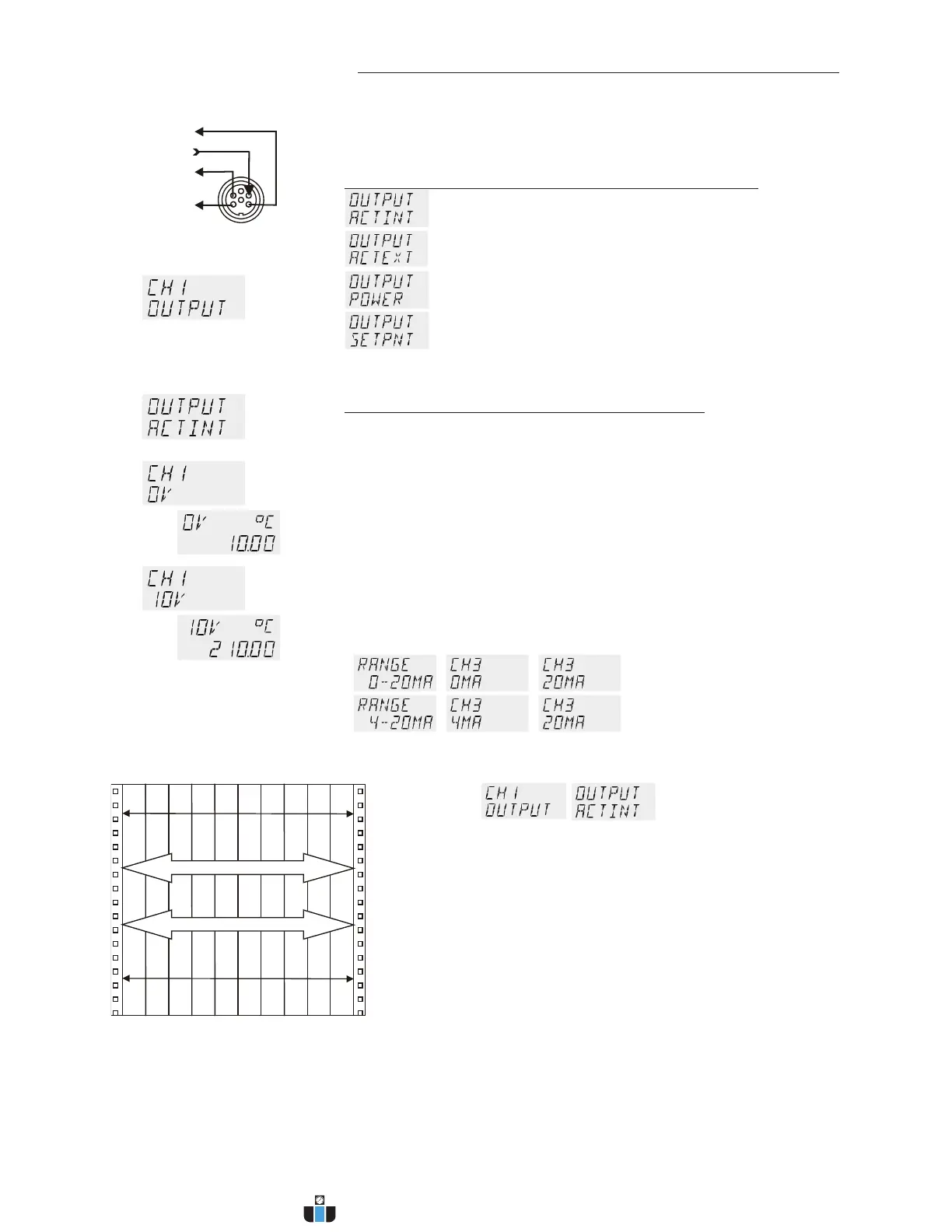

9.9.1. Outputs of the connector - REG+E-PROG
CHANNEL 1
CHANNEL 3
CHANNEL 2
REG+E-PROG
EPROG
1.
REG+E-PROG :
1. Select CHANNEL 1, 2 or 3
2. First define the desired output value for CHANNELs 1 to 3:
internal actual temperature value (bath temperature))
external actual temperature value (external sensor)
periodic or intermittent heating or cooling
active setpoint temperature
(SETPoint 1, 2, 3,/ integr. programmer /external programmer)
2.
3.
1
1
3. Then select the display size for CHANNELs 1 to 3:
Voltage outputs CHANNELs 1 and 2
Assign the voltage values of 0 V to the lowest and 10 V to the highest
necessary temperature (°C) or power rating (%) required as an output
value.
CHANNEL 3: Output for temperature value (°C)/power (%)
The current output (channel 3) offers 2 ranges for selection:
0 mA to 20 mA or
4 mA to 20 mA
Assign the current values 0 mA or 4 mA to the lowest and 20 mA to
the highest temperature (°C) or power rating (%) required as an
output value.
or
0 V
0 mA
20 mA
4 mA
10 °C 210 °C
197 °C 202 °C
'7
5 K
'
7
200 K
Example 1:
1 lowest temperature value: 10 °C
1 highest temperature value 210 °C
Fig. shows 200 qC scaled to paper width
rise: 50 mV/°C
Example 2:
lowest temperature value: 197 °C
highest temperature value: 202 °C
Fig. shows 5 qC scaled to paper width
rise: 2000 mV/°C
