JUMO Quantrol LC300 User Manual

4 Supplement
26

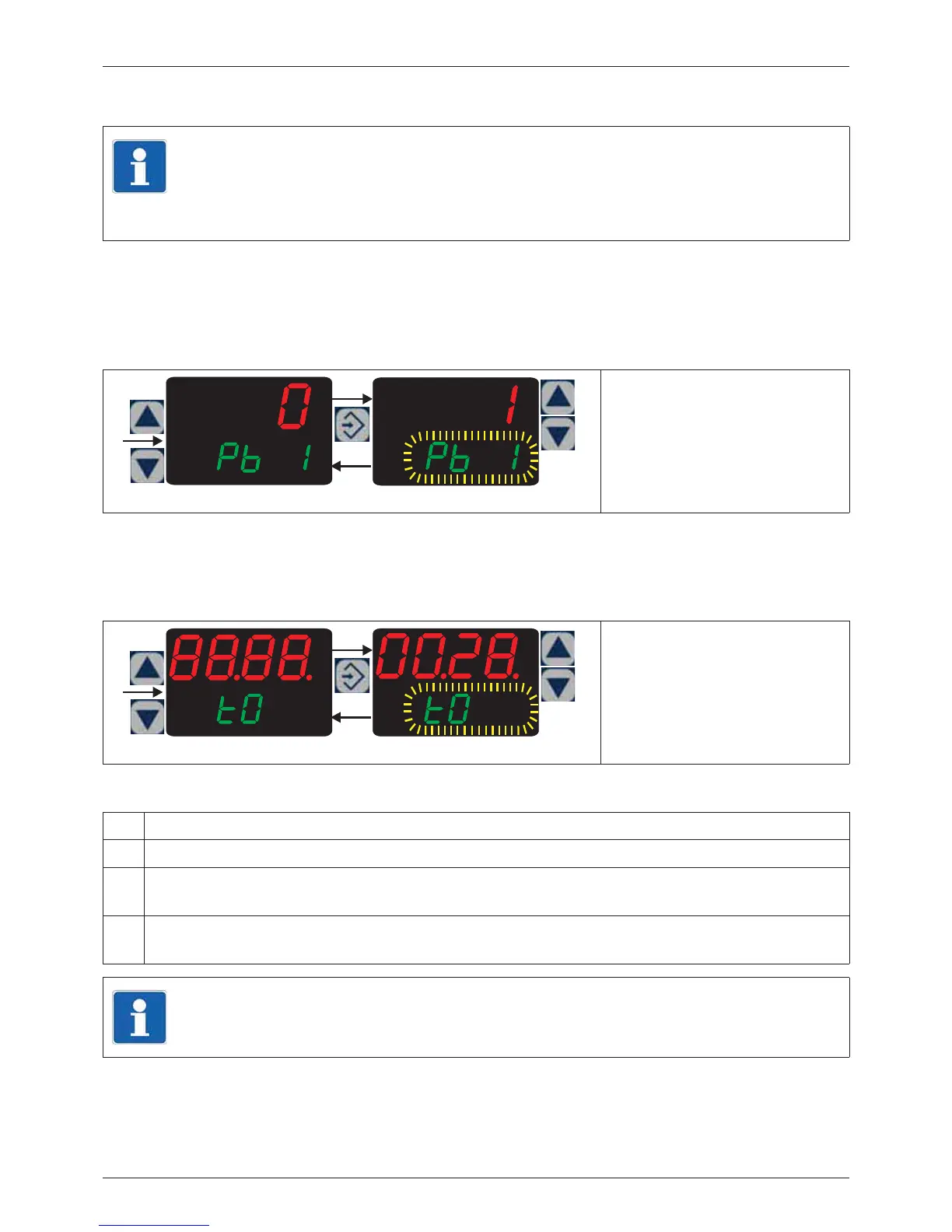

4.2 Additional information about the device functions
4.2.1 Entries and operator prompting
Value entry
When entries are made within the levels, the parameter symbol appears in the lower display.
Time entry
A decimal place is mapped in the centre and on the right to display times. The time unit can be
configured.
Procedure
TIP!
The information given in this chapter is exclusively contained in this operating ma-
nual provided as a PDF document. It supplements the information contained in the
previous chapters of this operating manual as well as in the brief instructions added
to every device as a print out.
(1) Select parameter (lower
display - green)
(2) Change value (upper
display - red)
(3) Parameter flashes
(1) Select parameter (lower
display - green)
(2) Change value (upper
display - red)
(3) Parameter flashes
1. Select parameter with key (B) or (C)
2. Change-over to the input mode with key (A): The lower display flashes.
3. Change value with key (B) or (C)
The longer the key is kept pressed, the faster the value changes.
4. Apply setting with key (A) (value is automatically applied after 2 s) - or cancel entry using
key (D) (value will not be applied)
TIP!
When pressing function key (D) for more than 2 seconds, the device will return to
the normal display
(1)
(2)
(3)
(C)
(B)
(C)
(B)
(A)
(1)
(2)
(3)
(C)
(B)
(C)
(B)
(A)
