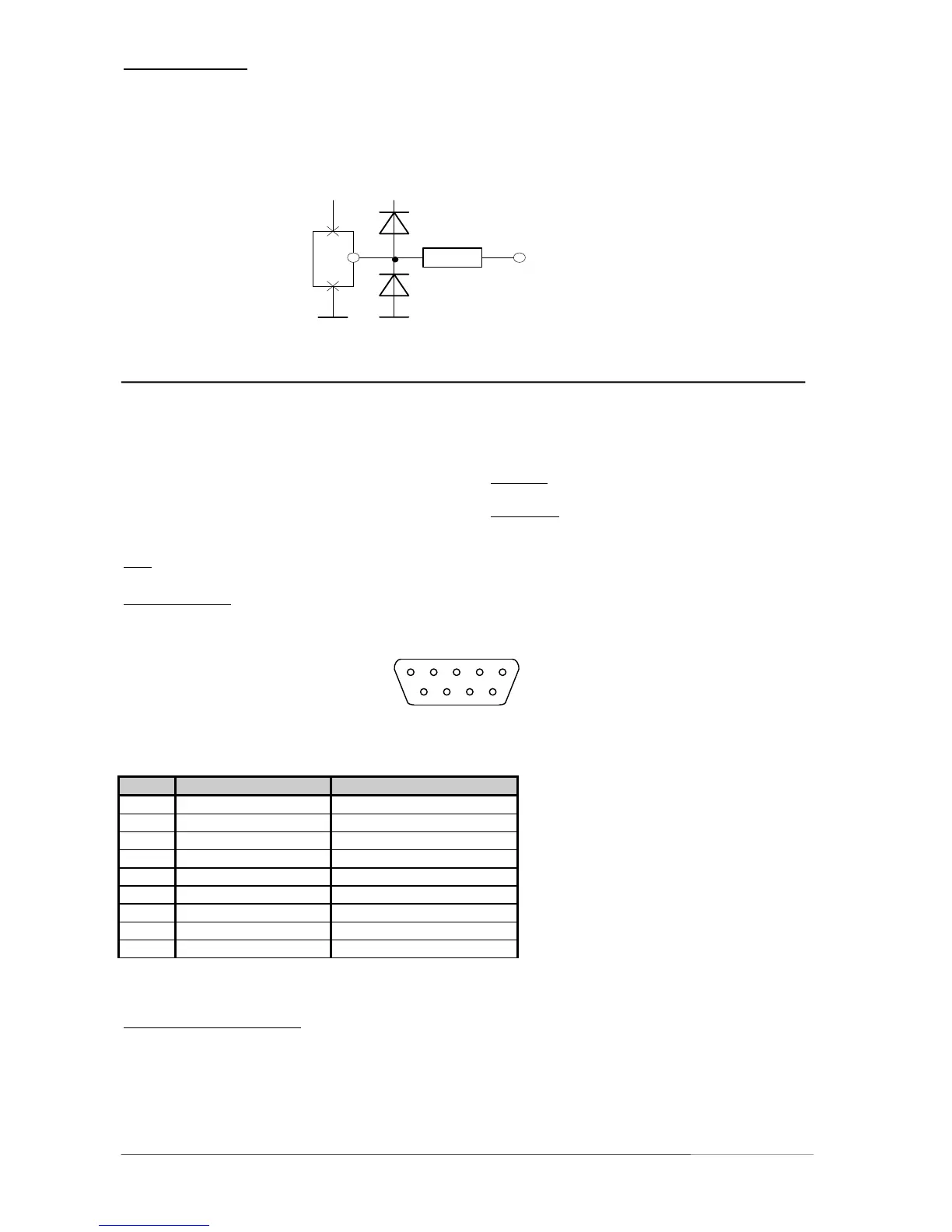

3. INSTALLATION
Tally output level L: 1,5V or less
level H: 3,5V or more
TALLY OUT
max. 25 mA
+5 V
110 Ohm
3.8.2 SERIAL REMOTE CONTROL (RS-232)
The Digital Dynamics Processor ACCENT2
can be remote-controlled by means of serial
remote RS-232.
use : remote-controlled
changeover
of parameter
protocol: available on request
connector: D-SUB 9pin,
input - male
output - female
Pin assignments
The cable is wired 1:1 completely, the shield of the cable must be connected on both ends!
5 1
9 6
REMOTE IN
Pin Signal name Functions
1 not used
2 TXD in Transmit data
3 RXD out Receive data
4 not used
5 GND ground
6 DSR Data set ready, is high
7 not used
8 not used
9 not used
Electrical specification:
signal in-/outputs TTL-level
page 3-4 operation manual accent2 chapter 3 -Installation-
