4. LOCATION OF PARTS AND CONTROLS
4.2 REAR PANEL
accent2
ANALOG INPUT
LEFT RIGHTLEVEL
RIGHTLEVEL
ANALOG OUTPUT
LEFT
DIGITAL OUTPUT
BNC2
BNC1
XLR1
XLR2
DIGITAL INPUT
BNC2
BNC1
XLR1
XLR2
230 V
50 Hz
200 mA
GPI
REMOTE
SYNC IN
WCLK OUT
FADER
DIGITAL INPUTS
ANALOG
OUTPUTS
SYNC
IN/OUT
ANALOG
INPUTS
DIGITAL OUTPUTS
SERIAL
REMOTE
FADER
GPI
REMOTE/
TALLY

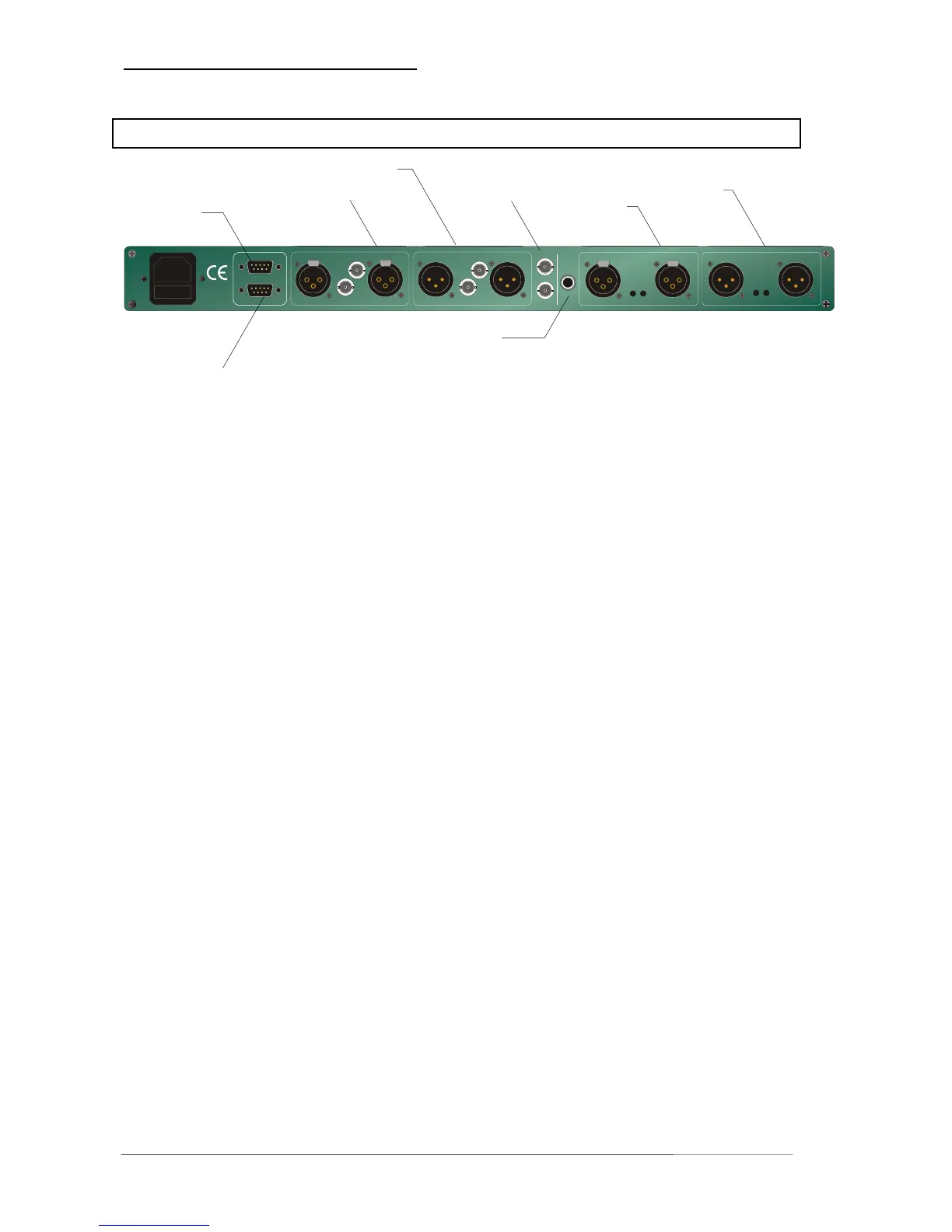

fig. 2: rear panel ACCENT2
POWER INPUT
IEC mains input connector 100-240V, 50/60 Hz with integrated fuse
REMOTE
serial remote interface RS-232
connector: 9pin SUB-D, female
GPI
parallel remote interface GPI in/TALLY out
connector: 9pin SUB-D, female, TTL-level
SYNC
EXT SYNC
input for external sync signal
wordclock, TTL level, 1 kOhm, unbal.
connector: BNC socket,
W-CLOCK
output for sync signal
wordclock, TTL level, unbal.
connector: BNC socket
FADER
input for remote fader
connector: 6.3 mm phone plug
DIGITAL IN
input for AES/EBU standard format
connector: XLR female panel jack, 1- ground, 2-3 signal, balanced
connector: BNC socket 75 Ohm, unbalanced
DIGITAL OUT
output for AES/EBU standard format
connector: XLR male panel jack, 1- ground, 2-3 signal, balanced , 4 Vpp
connector: BNC socket 75 Ohm, unbalanced, 0.5V pp
ANALOG IN
input for analog audio signals
connector: XLR female panel jack, 1- ground, 2- hot, 3- cold, 10kOhm, floating balanced
ANALOG OUT
output for analog audio signals
connector: XLR male panel jack, 1- ground, 2- hot, 3- cold, 50Ohm, floating balanced
page 4-2 Operation manual ACCENT2, chapter 4 -location of parts and controls -
