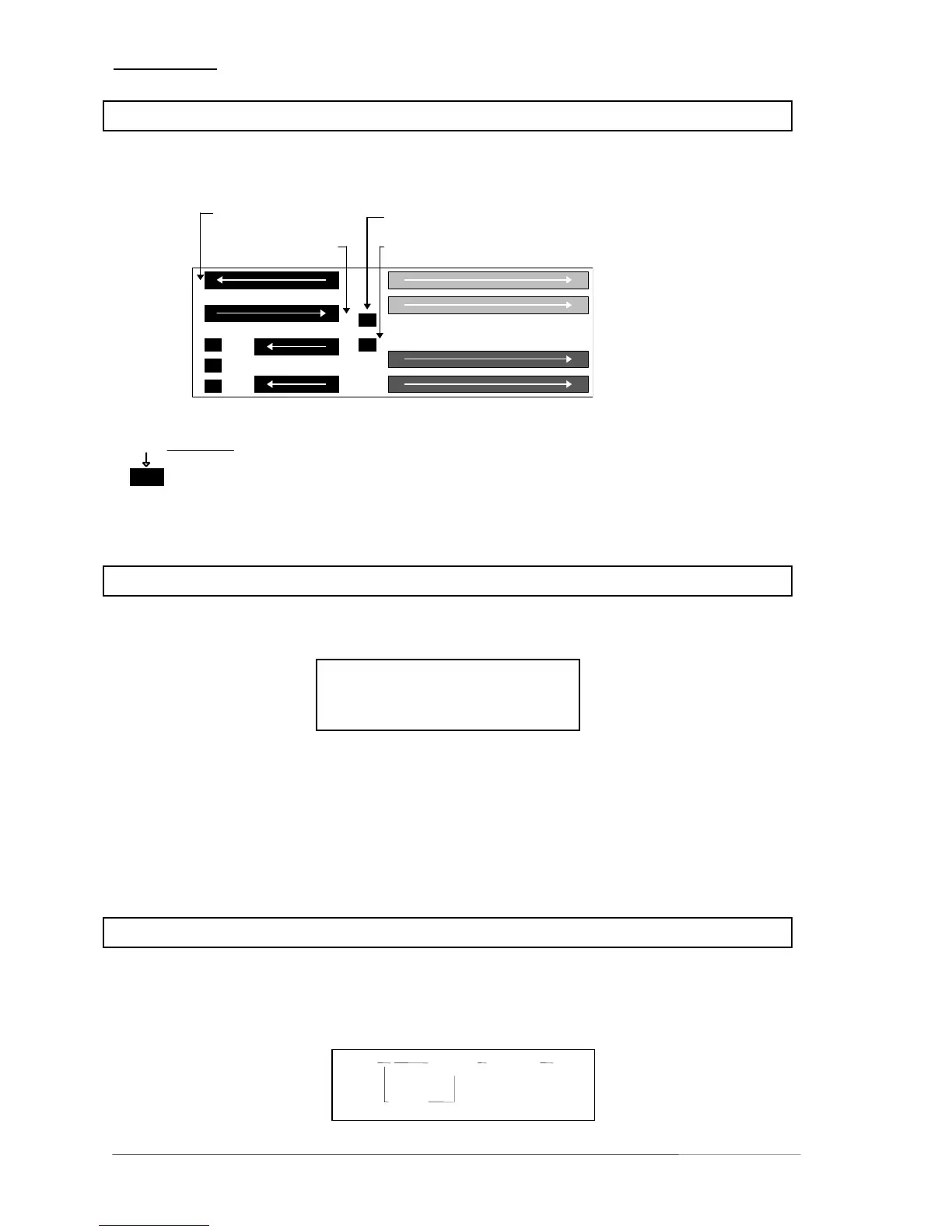

5. OPERATION
5.2 LEVEL DISPLAY
Multiview level display shows input level, output level and all gain changing of the different processing
blocks of both channels.
overload insert return
overload insert send
input left+right
output left+right
stereo
SRC
dither
compression gain
dynamic filter activity
expander reduction
limiter reduction
RESET reset of peak hold
5.3 GAIN MENU (gain button)
Gain menu shows gain setting for both channels.
Adjustments are made by pushing and turning SELECT knob (see 5.1).
PR GAIN BAL
-- 0.0 L R 0.0
PR: number of current preset
GAIN: linear gain -15.0 ... +15.0 dB
BAL: balance between left and right channel
in stereo mode
GAIN L and GAIN R
independent gain setting for each channel
-15.0 ... +15.0 dB
in 2-channel mode
5.4 CONFIG MENU (config button)
ush
Config menu shows signal path configuration for both channels.
Changes are made by turning the SELECT knob (see 5.1). Disactivated function blocks are shown in
small letters.
example: exp CMP GAIN LIM
FIL
page 5-2 Operation manual accent2, chapter 5 -Operation-
