Jungheinrich ECE 220 - Operating the Truck Without Its Own Drive System

1206.GB
C 4
4 Operating the truck without its own drive system
F
This operating mode is not permitted when negotiating inclines and gradients.
If the truck has to be moved after a failure has rendered it immobile, proceed as
follows:
– Set the isolator “OFF”.
– Turn the key switch “OFF” (“0”) and remove the key.
– Prevent the truck from rolling away.
– Open the battery panel (see chapter D).
– Open the front panel (3) and put it to one side (see chapter F).

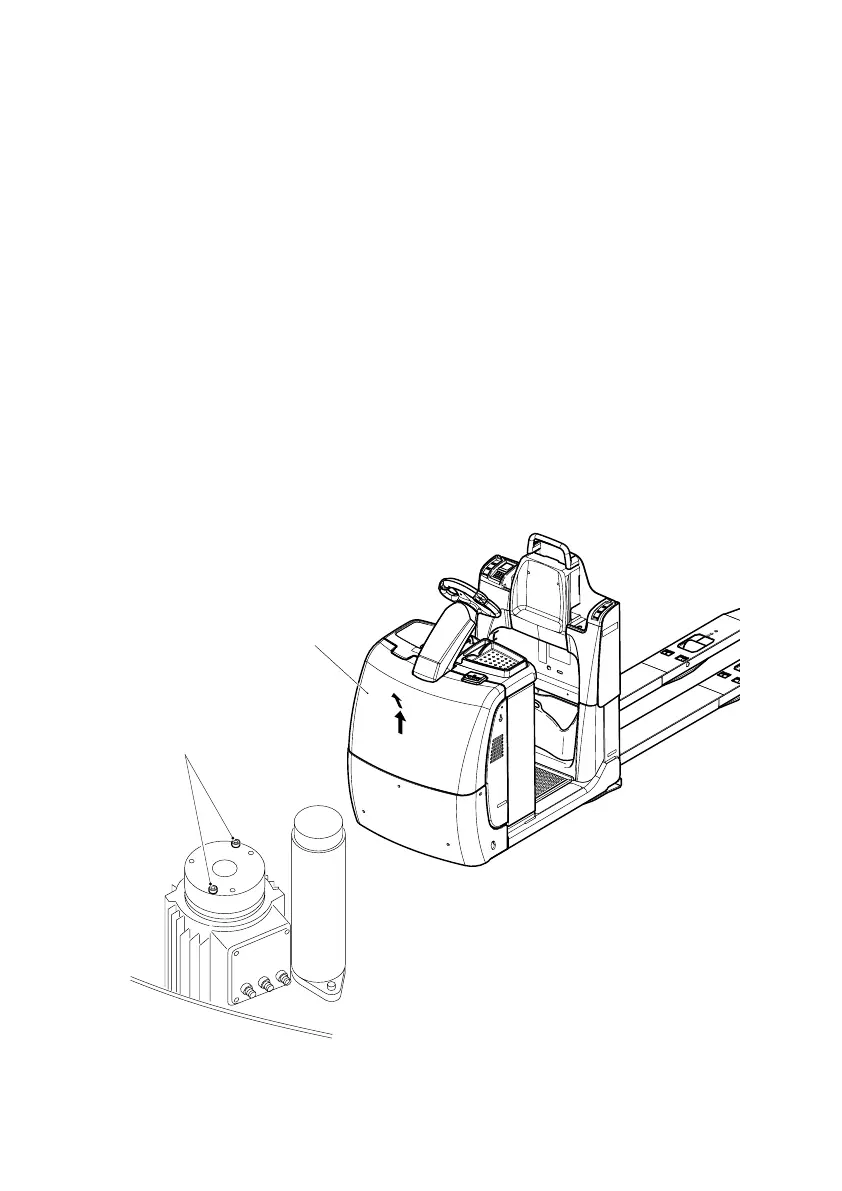

– Pull up the anchor plate by screwing in two M5 screws (2, at least 42 mm long) as
far as the stop.
The brake is now released and the truck can move.
F
On reaching your destination, ensure that the brake is restored to its initial state. The
truck must never be parked with the brakes released.
– Remove the screws (2).
The brake is now applied again.
– Refit the front panel (3).
3
2
1206.GB
C 4
4 Operating the truck without its own drive system
F
This operating mode is not permitted when negotiating inclines and gradients.
If the truck has to be moved after a failure has rendered it immobile, proceed as
follows:
– Set the isolator “OFF”.
– Turn the key switch “OFF” (“0”) and remove the key.
– Prevent the truck from rolling away.
– Open the battery panel (see chapter D).
– Open the front panel (3) and put it to one side (see chapter F).
– Pull up the anchor plate by screwing in two M5 screws (2, at least 42 mm long) as
far as the stop.
The brake is now released and the truck can move.
F
On reaching your destination, ensure that the brake is restored to its initial state. The
truck must never be parked with the brakes released.
– Remove the screws (2).
The brake is now applied again.
– Refit the front panel (3).
3
2
