1007.GB

E 30

7 Battery discharge indicator

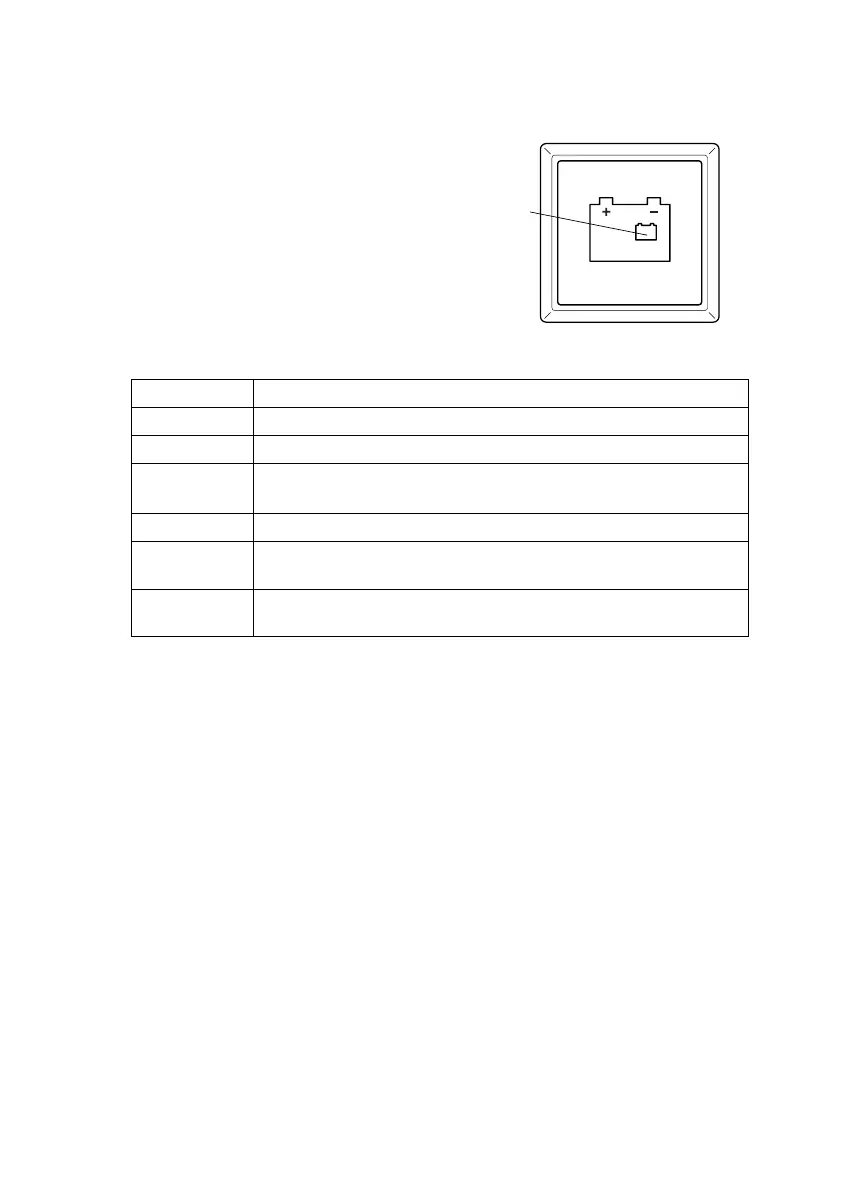

7.1 Battery Discharge Indicator (t)

When the truck has been released via the key

switch or CANCODE, the battery charge status is

displayed.

The colours of the LEDs (12) represent the following conditions:

When a battery has been discharged to its minimum level, the LED is lit red and load

lifting is inhibited. Lifting is only released when the battery connected is at least 70 %

charged.

The status display is reset to 100% when the battery type is adjusted.

If the LED flashes red and the truck is not ready for operation, inform the

manufacturer's service department. Red flashing is a fault code of the truck controller.

The flashing sequence indicates the type of fault.

LED colour Meaning

Green Battery is charged

Orange Battery residual capacity approx. 50%

Green/orange

Flashing 1 Hz

Last 10% available capacity has been reached

Red Below battery residual capacity minimum level

Flashing

red1Hz

Error (decimal digits)

Flashing red

0.5 Hz

Error (unit digits)
